Code 25 (Chart 2) - Short To Battery In Steering Column

NOTE: Test numbers refer to numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.

WARNING: To avoid air bag deployment while trouble shooting SIR system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.

1. Checks for short to voltage in circuit No. 347 or in dual sensor.
2. Checks for proper resistance of 100-ohm resistor in resistor module.

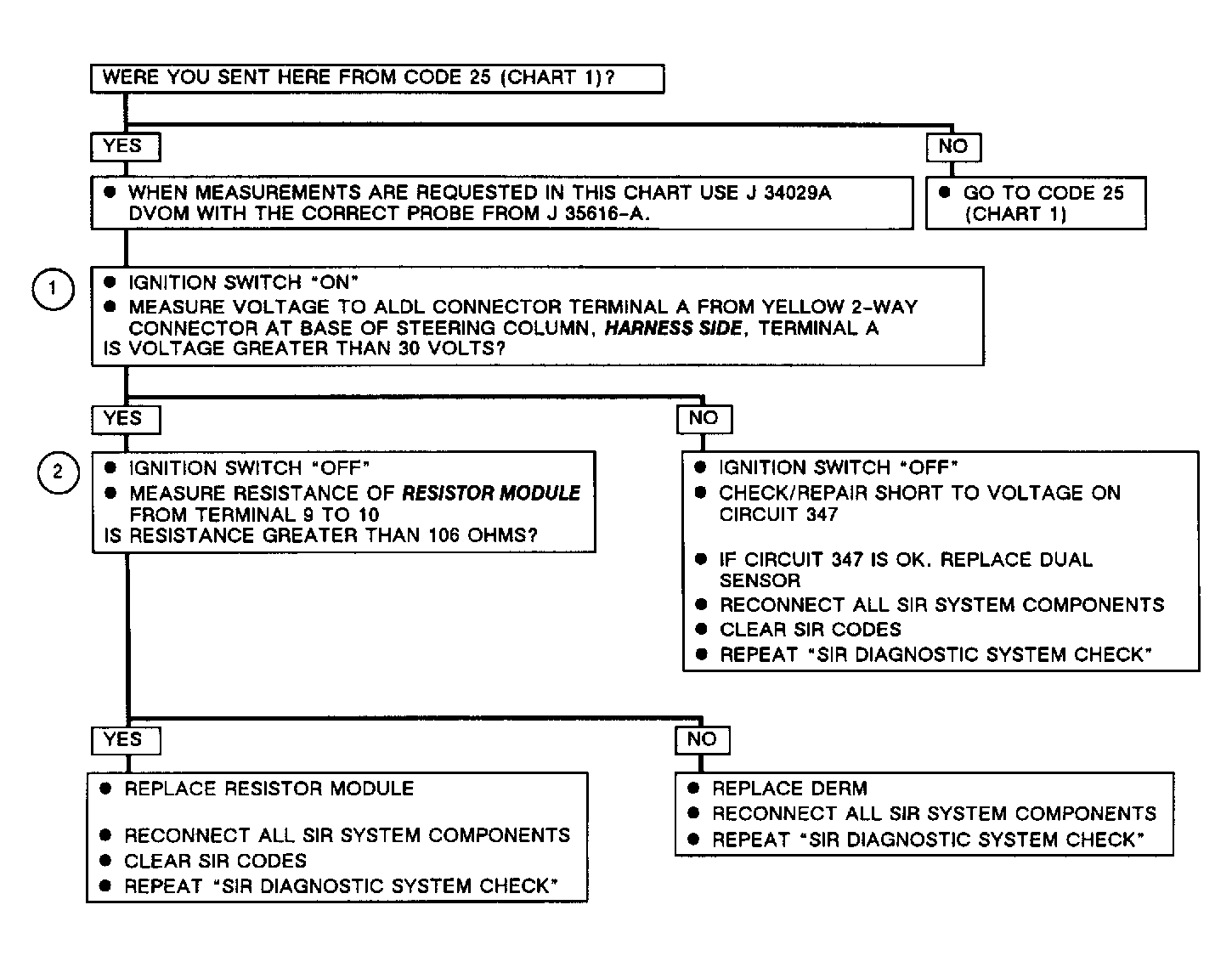

Fig 1: Code 25, (Chart 2) Short To Battery In Steering Column

Courtesy of GENERAL MOTORS CORP.
