Action Taken
Diagnostic Energy Reserve Module (DERM) turns on INFLATABLE RESTRAINT indicator light.
NOTE:

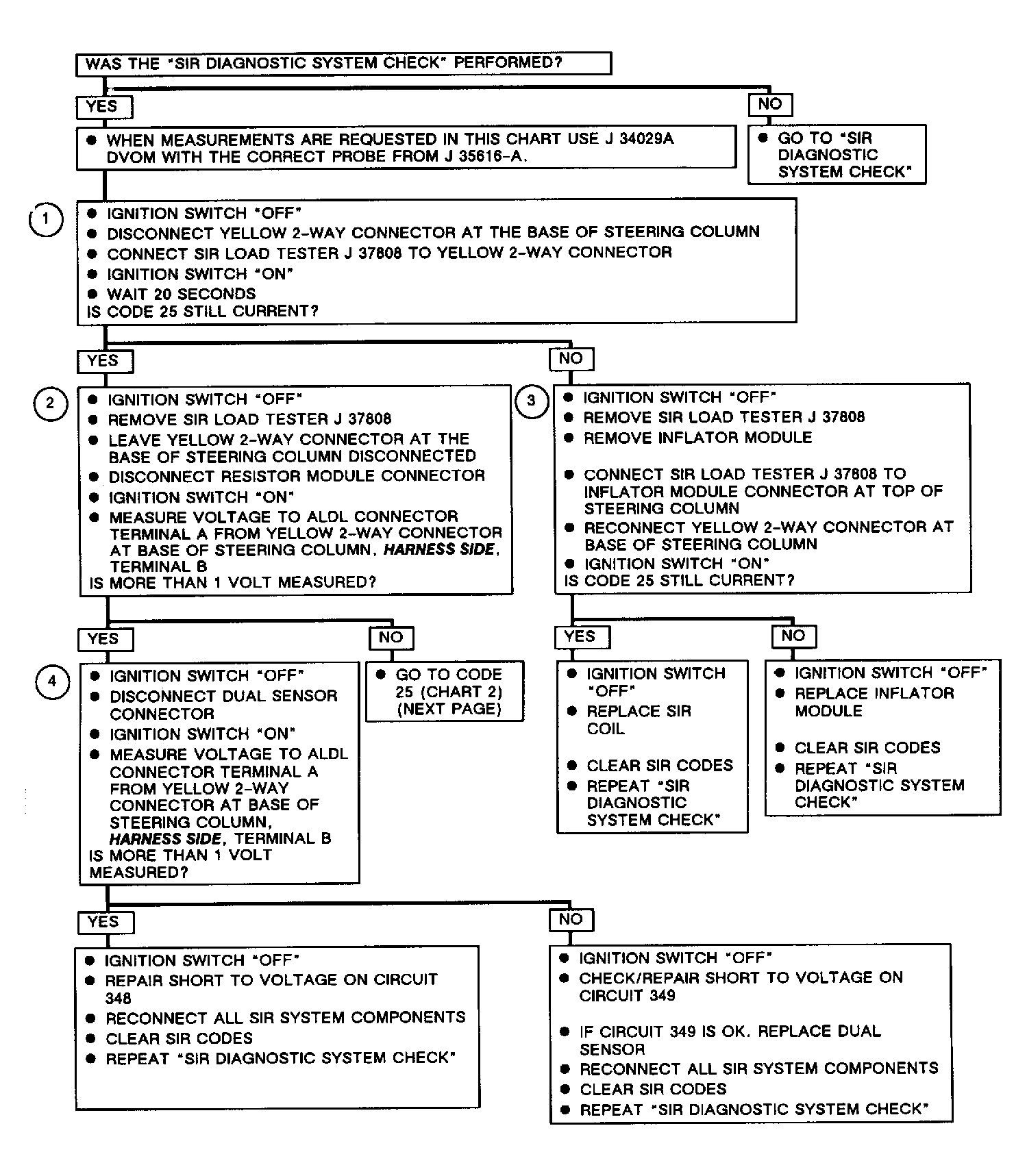

Test numbers refer to numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.
WARNING:
To avoid air bag deployment while trouble shooting SIR system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.
- Checks if fault is in steering column.
- Checks for short to voltage in circuit No. 348 or 349 or in dual sensor.
- Checks if fault is in coil wire or inflator module.
- Checks if fault is a short to voltage in wiring or dual sensor.
