Chart F - Inflatable Restraint Indicator Flashes 7-9 Times, Then Flashes Code 12: Description
When ignition is first turned on, system voltage is applied from fuse No. 6 to SIR INDICATOR HIGH and INFLATABLE RESTRAINT indicator light, which is connected to SIR INDICATOR LOW. Fuse No. 7 applies system voltage to IGNITION 1 inputs A3 and B3. Diagnostic Energy Reserve Module (DERM) responds by flashing INFLATABLE RESTRAINT indicator 7-9 times.
When engine is being cranked, system voltage is applied from fuse No. 1 to DERM at CRANK input. DERM grounds light circuit until system voltage is removed from CRANK input. This results in a steady INFLATABLE RESTRAINT indicator during cranking. After engine is cranked, DERM will again flash INFLATABLE RESTRAINT indicator 7-9 times if ignition is on.
NOTE:

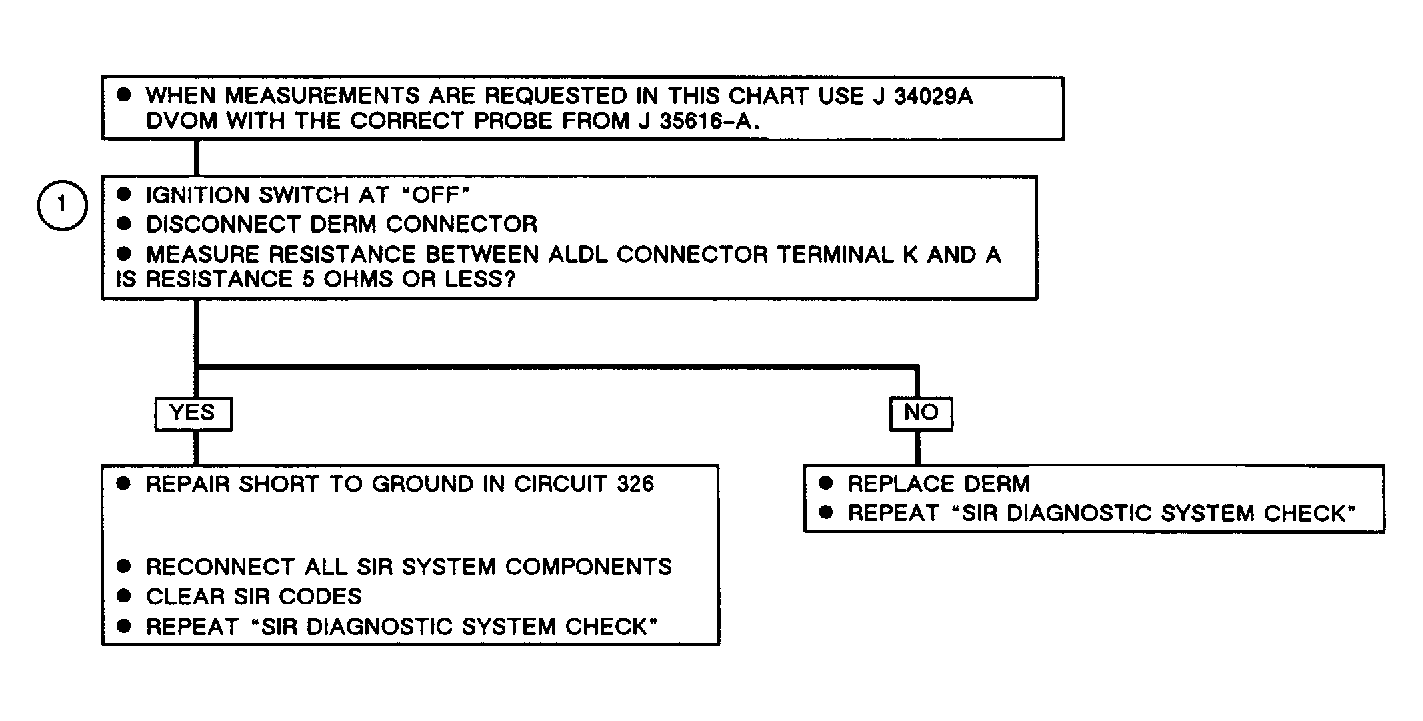

Test numbers refer to numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.
WARNING:
To avoid air bag deployment while trouble shooting SIR system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.
- Checks for short to ground on DIAGNOSTIC REQUEST circuit No. 326.
