Chart C2 - Inflatable Restraint Indicator Comes On Steady

NOTE: Test numbers refer to numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.

WARNING: To avoid air bag deployment while trouble shooting SIR system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.

1. Checks for a short to ground in IGNITION 1 circuits or DERM.
2. Checks for short to ground in DERM.
3. Checks if short to ground is in dual sensor or IGNITION 1 circuits.

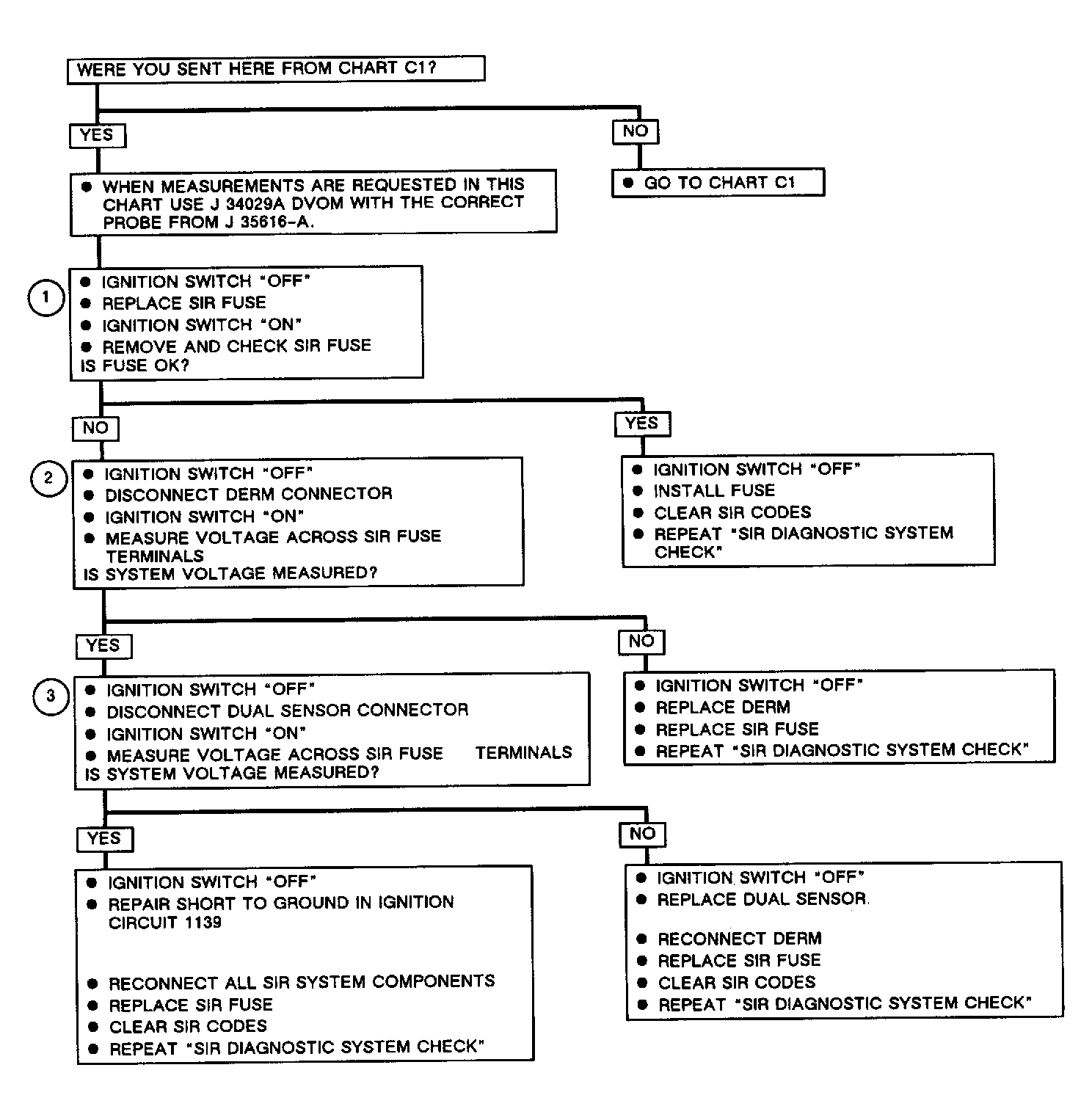

Fig 1: Chart C2 - Inflatable Restraint Indicator Comes On Steady

Courtesy of GENERAL MOTORS CORP.
