Wiring Diagrams

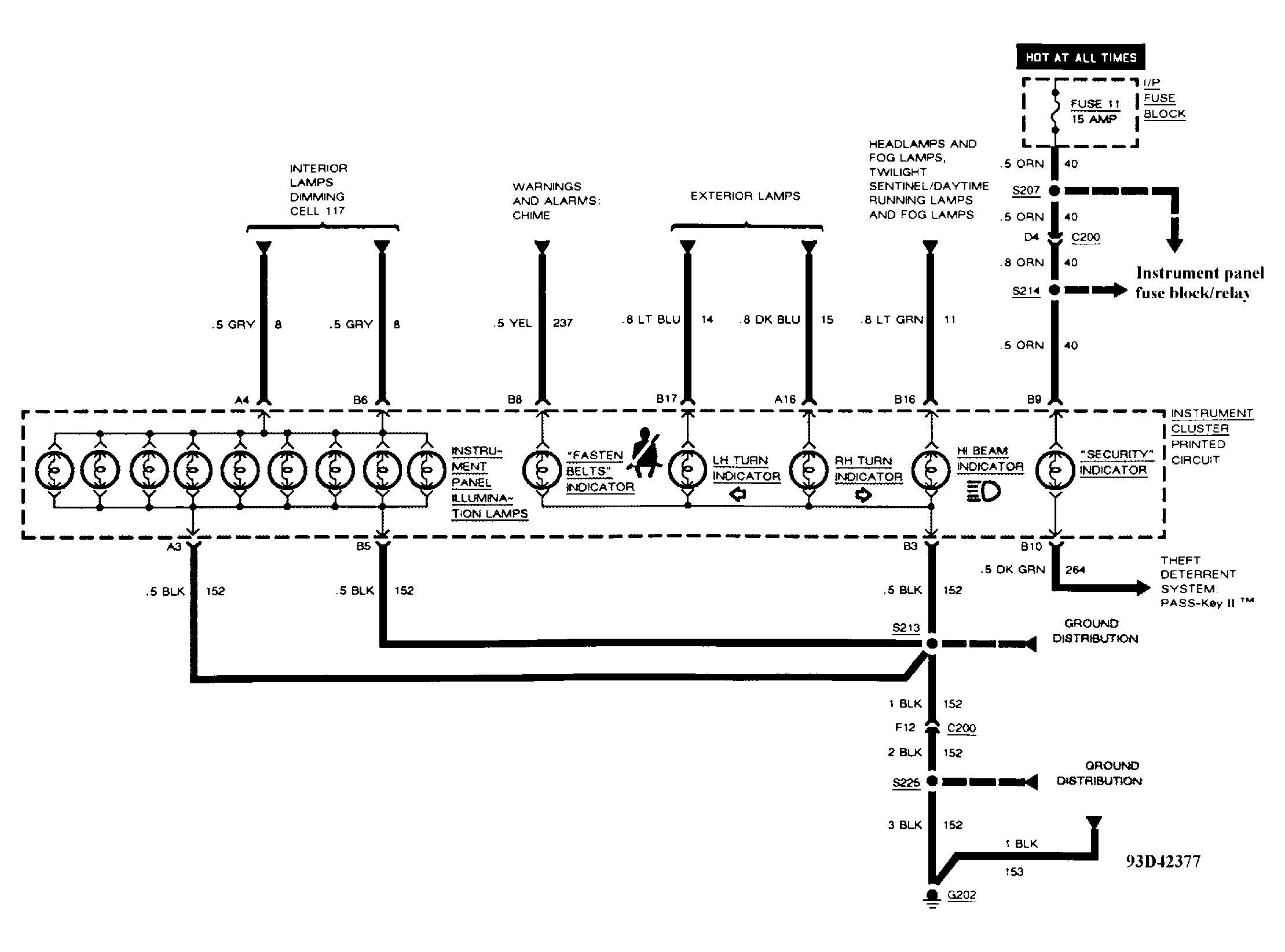

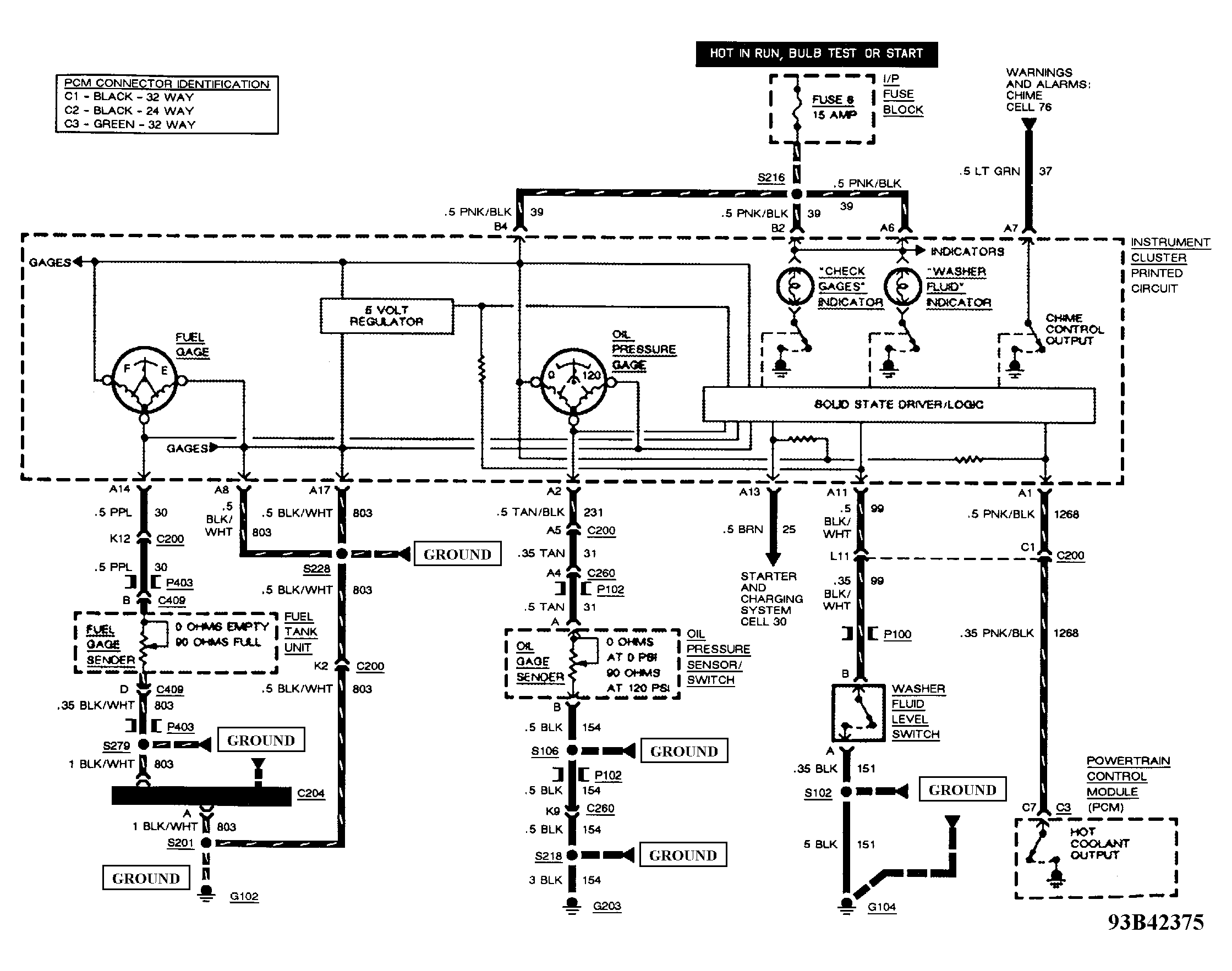

Fig 1: Analog Instrument Panel Wiring Diagram (UB3 - 1 Of 5)

Courtesy of GENERAL MOTORS CORP.

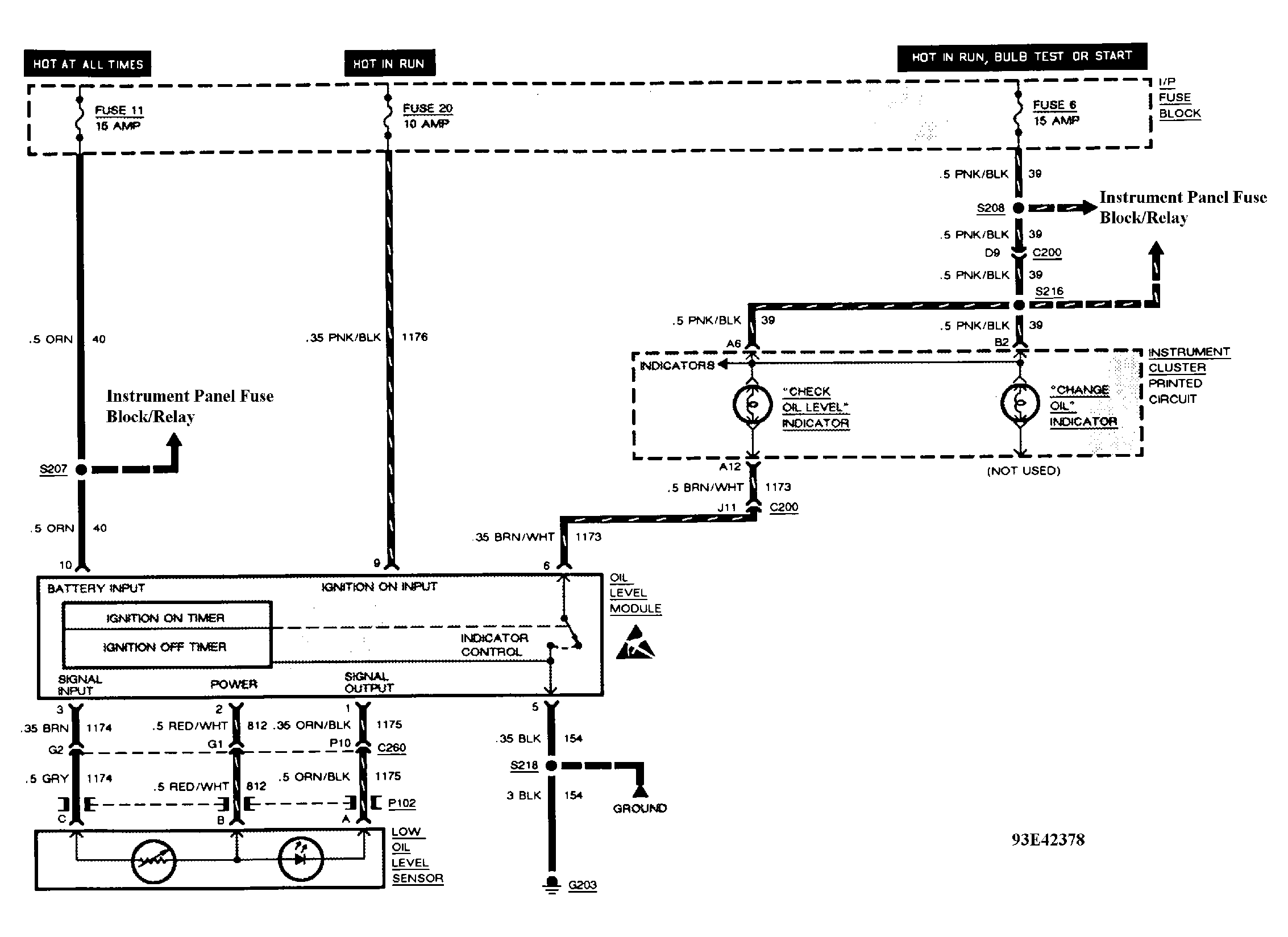

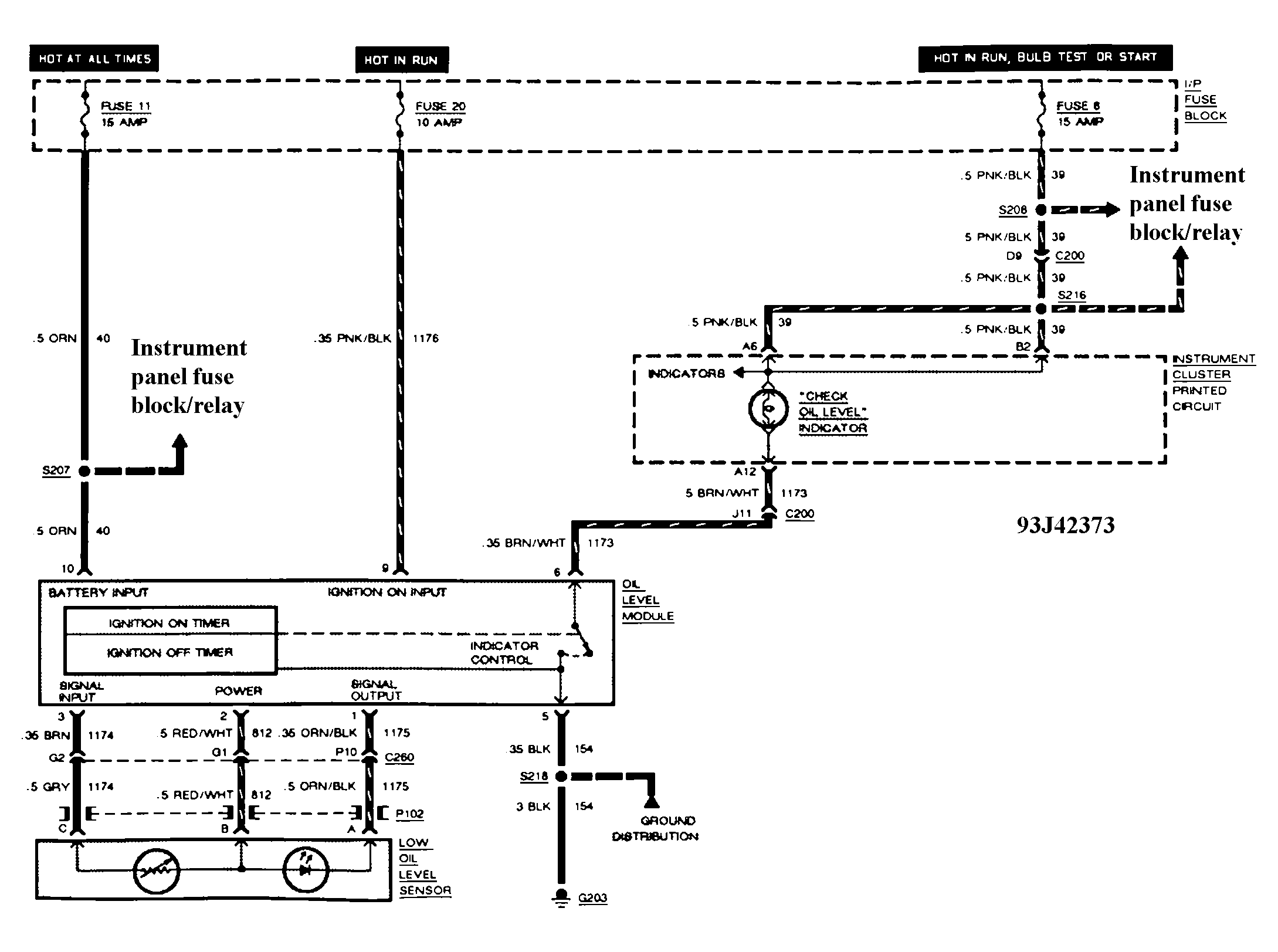

Fig 2: Analog Instrument Panel Wiring Diagram (UB3 - 2 Of 5)

Courtesy of GENERAL MOTORS CORP.

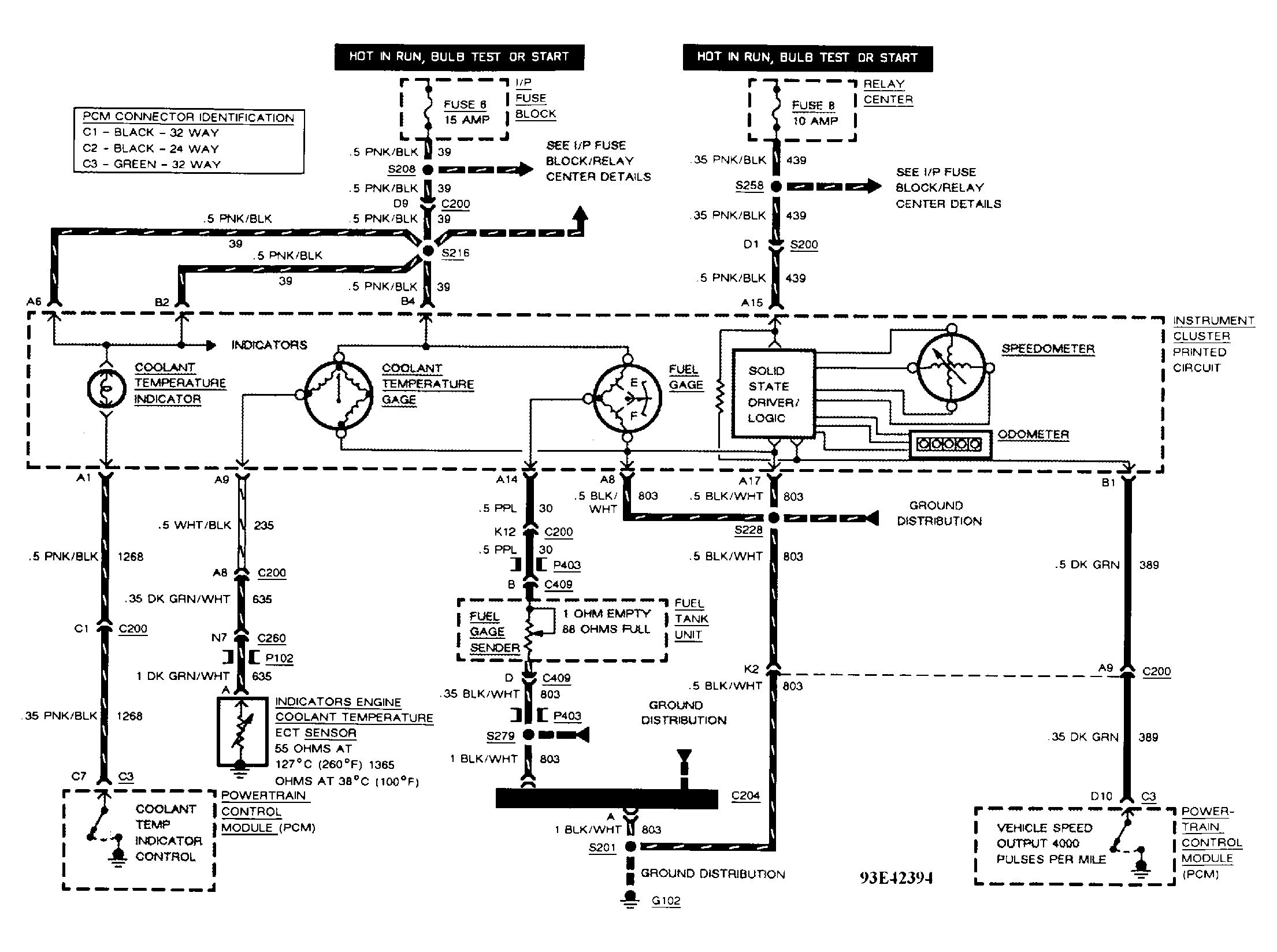

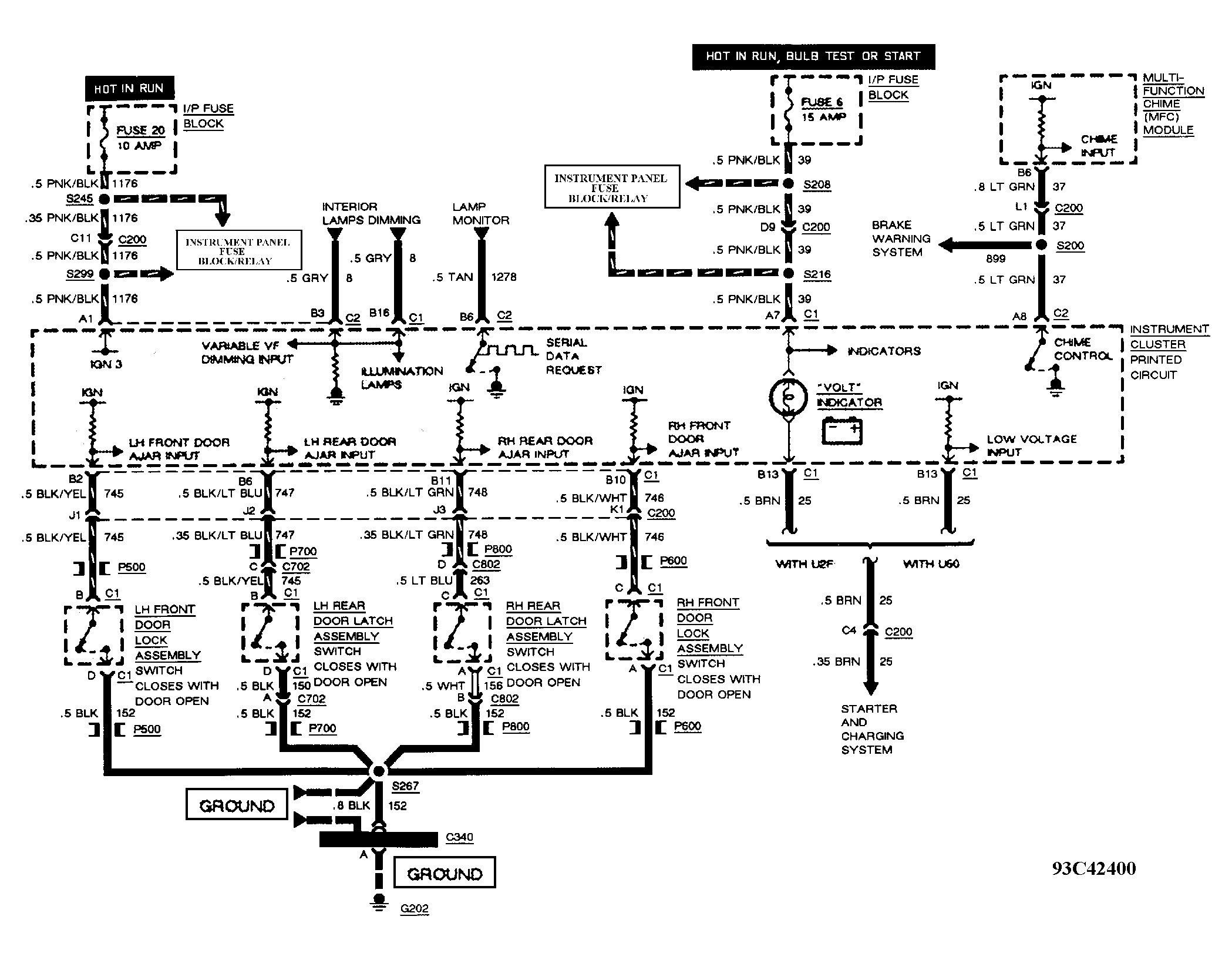

Fig 3: Analog Instrument Panel Wiring Diagram (UB3 - 3 Of 5)

Courtesy of GENERAL MOTORS CORP.

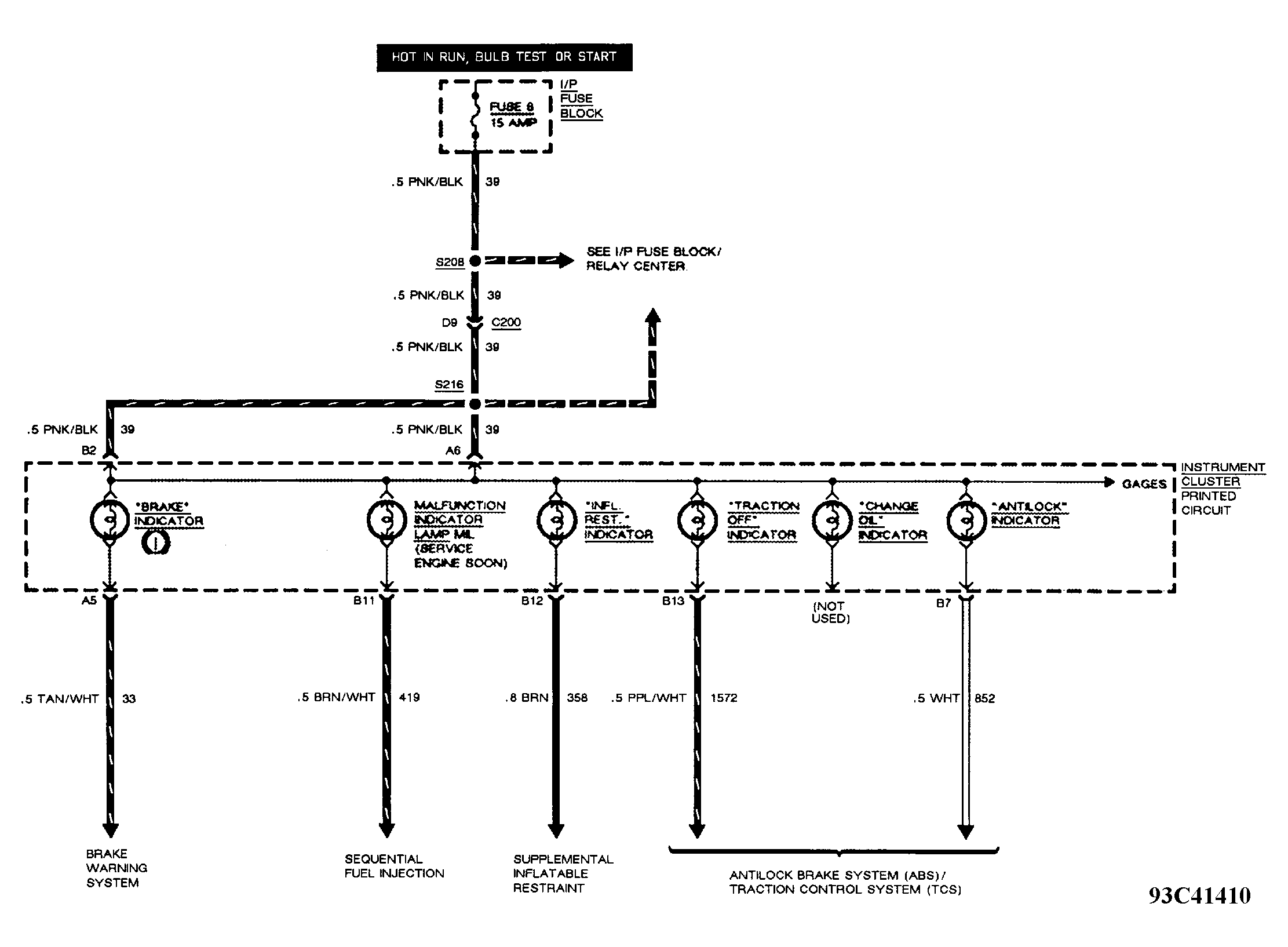

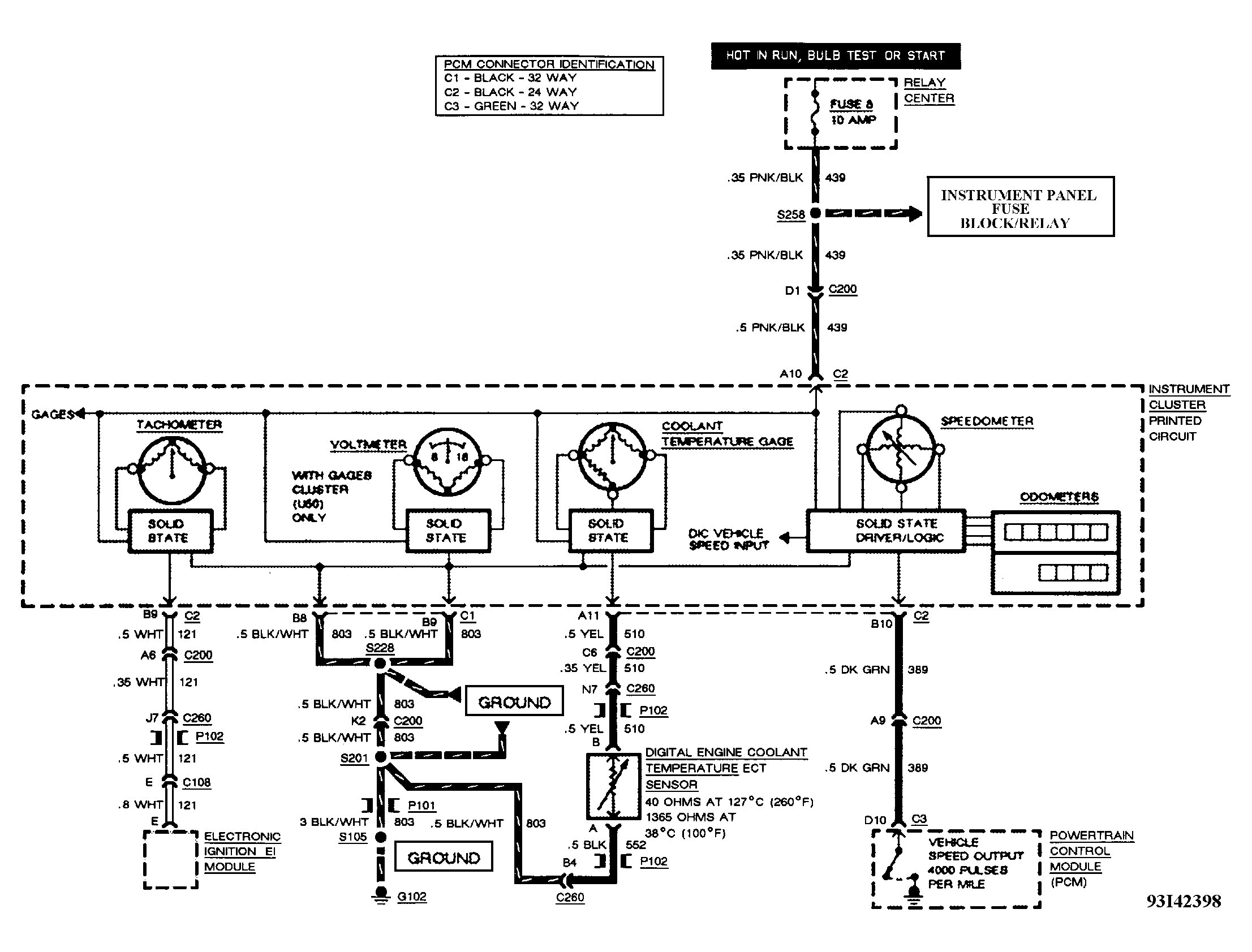

Fig 4: Analog Instrument Panel Wiring Diagram (UB3 - 4 Of 5)

Courtesy of GENERAL MOTORS CORP.

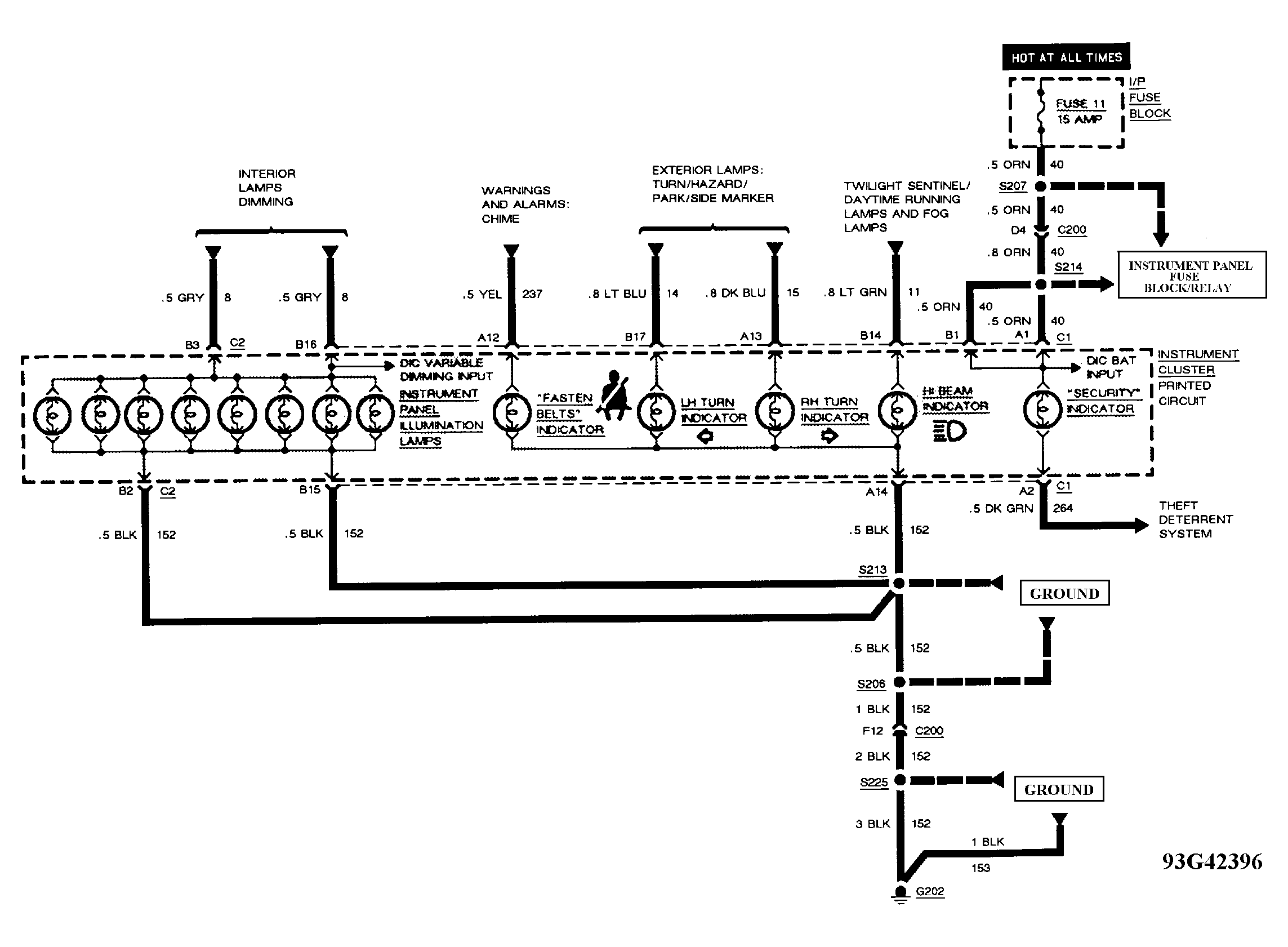

Fig 5: Analog Instrument Panel Wiring Diagram (UB3 - 5 Of 5)

Courtesy of GENERAL MOTORS CORP.

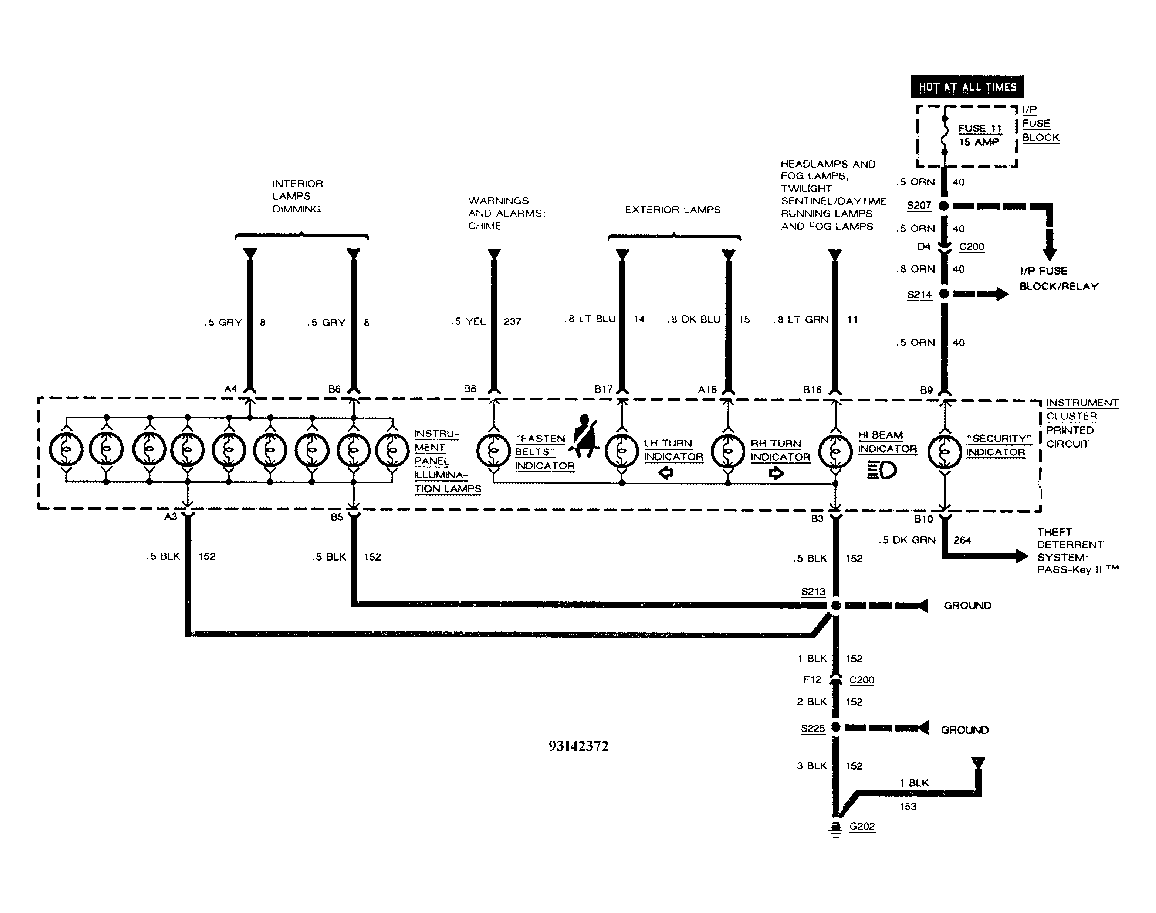

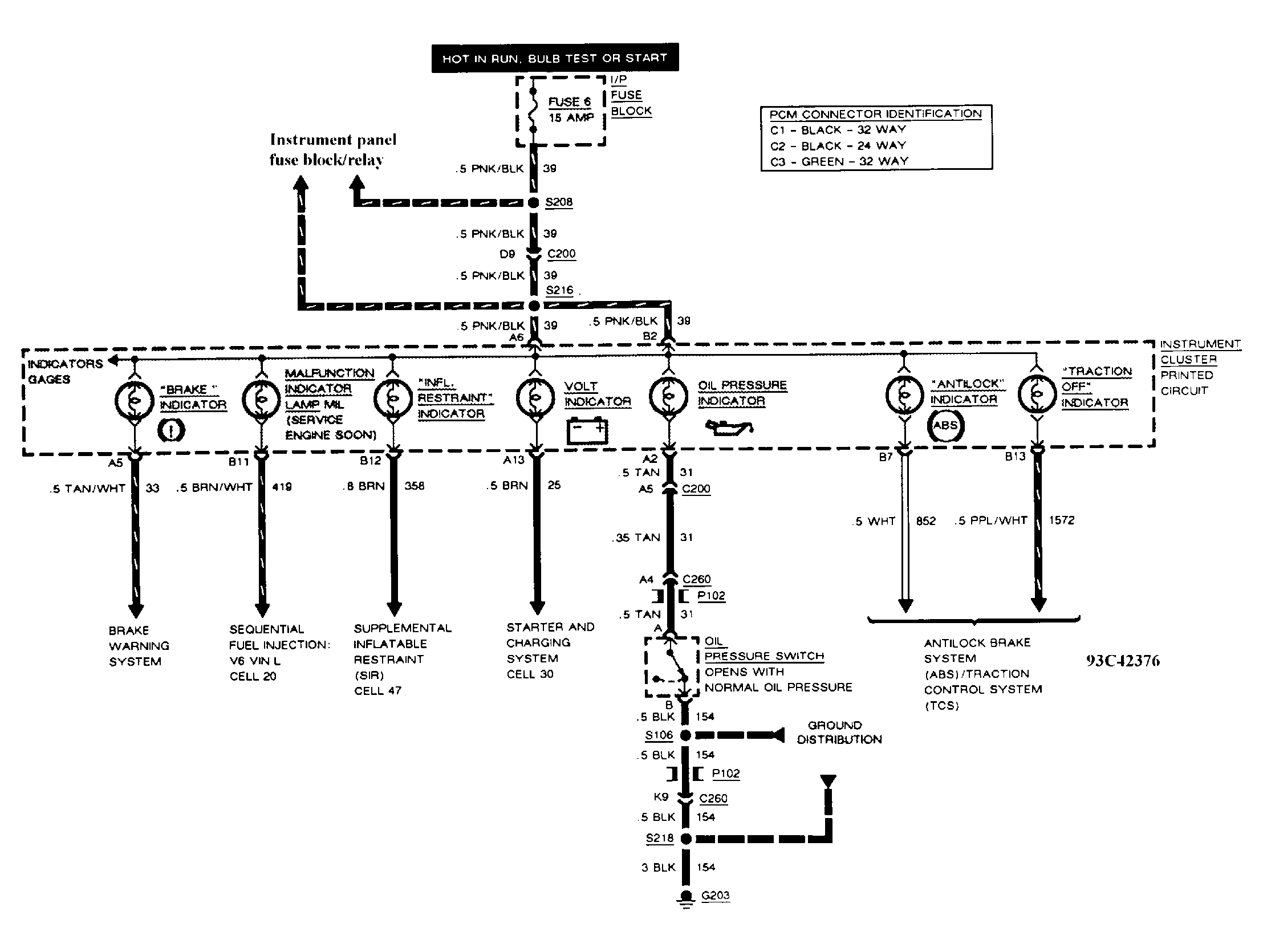

Fig 6: Analog Instrument Panel Wiring Diagram (U2E - 1 Of 4)

Courtesy of GENERAL MOTORS CORP.

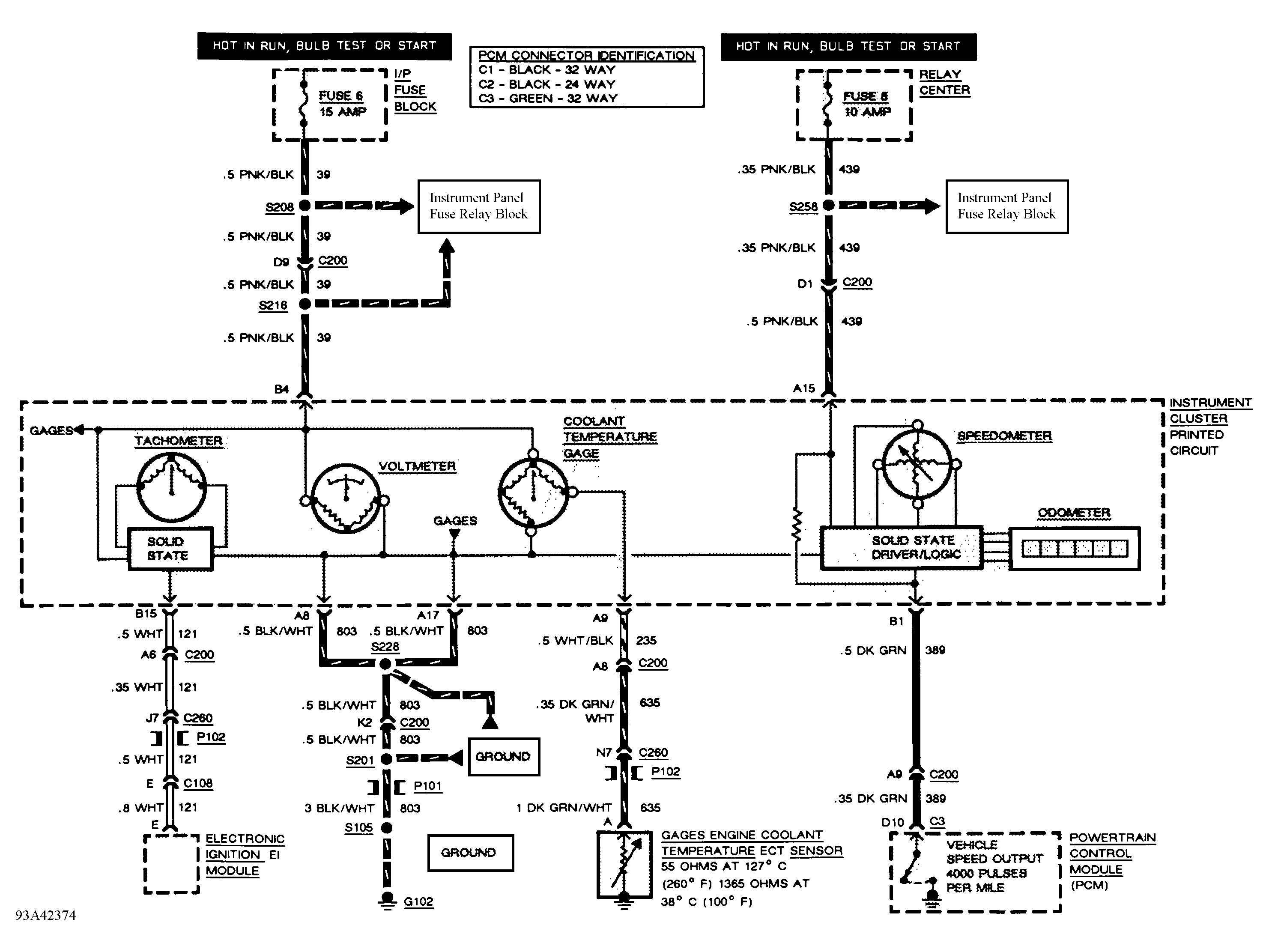

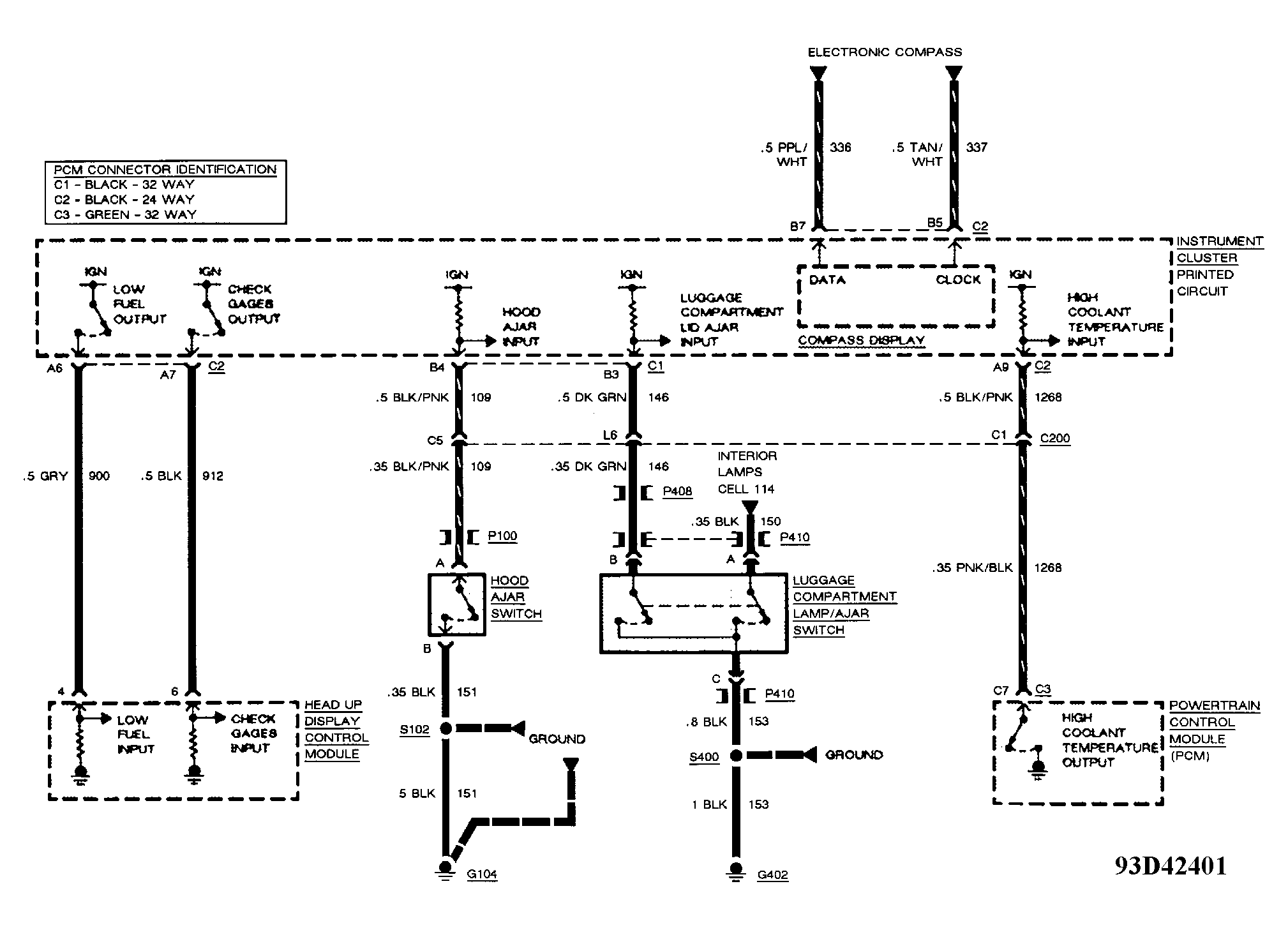

Fig 7: Analog Instrument Panel Wiring Diagram (U2E - 2 Of 4)

Courtesy of GENERAL MOTORS CORP.

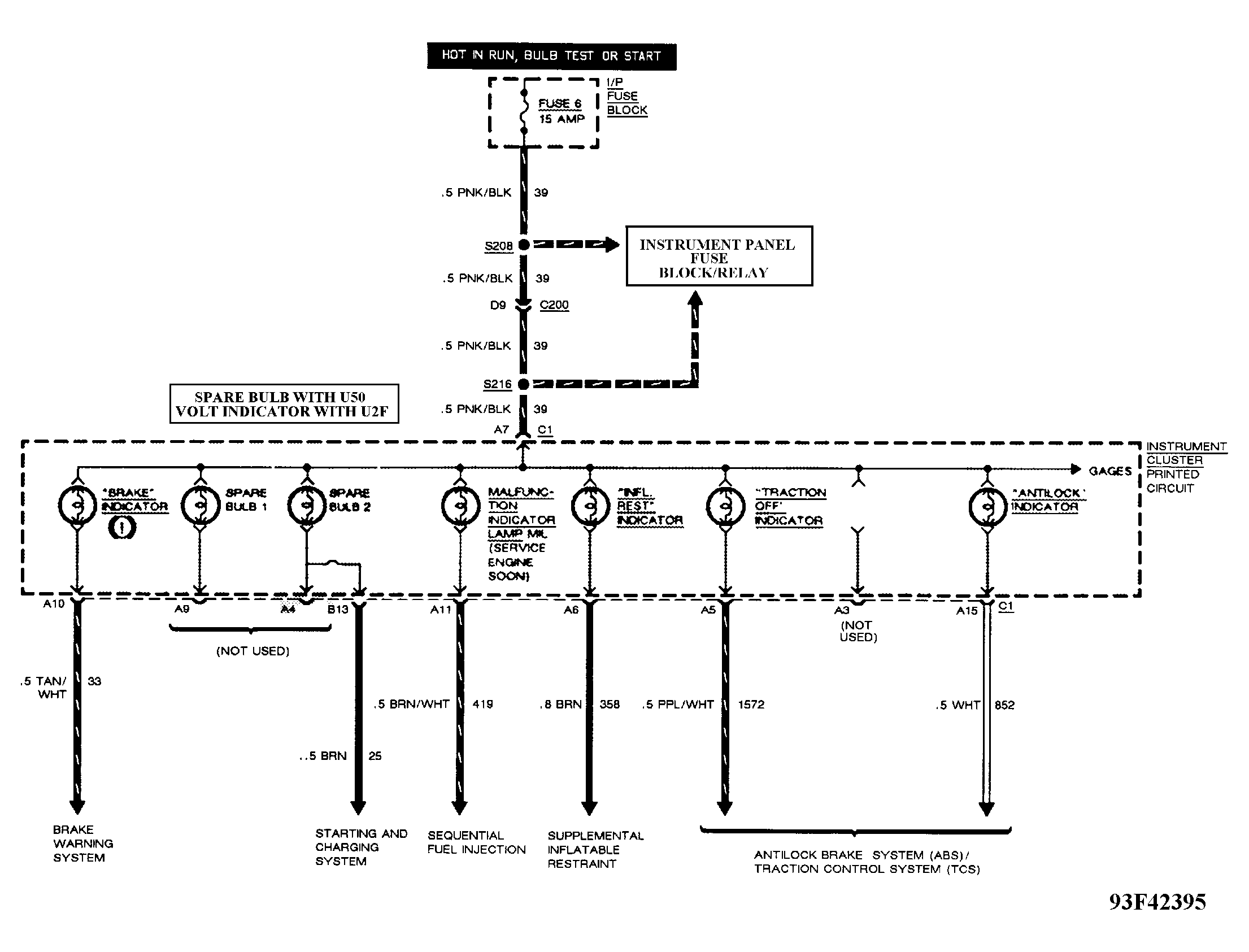

Fig 8: Analog Instrument Panel Wiring Diagram (U2E - 3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Analog Instrument Panel Wiring Diagram (U2E - 4 Of 4)

Courtesy of GENERAL MOTORS CORP.

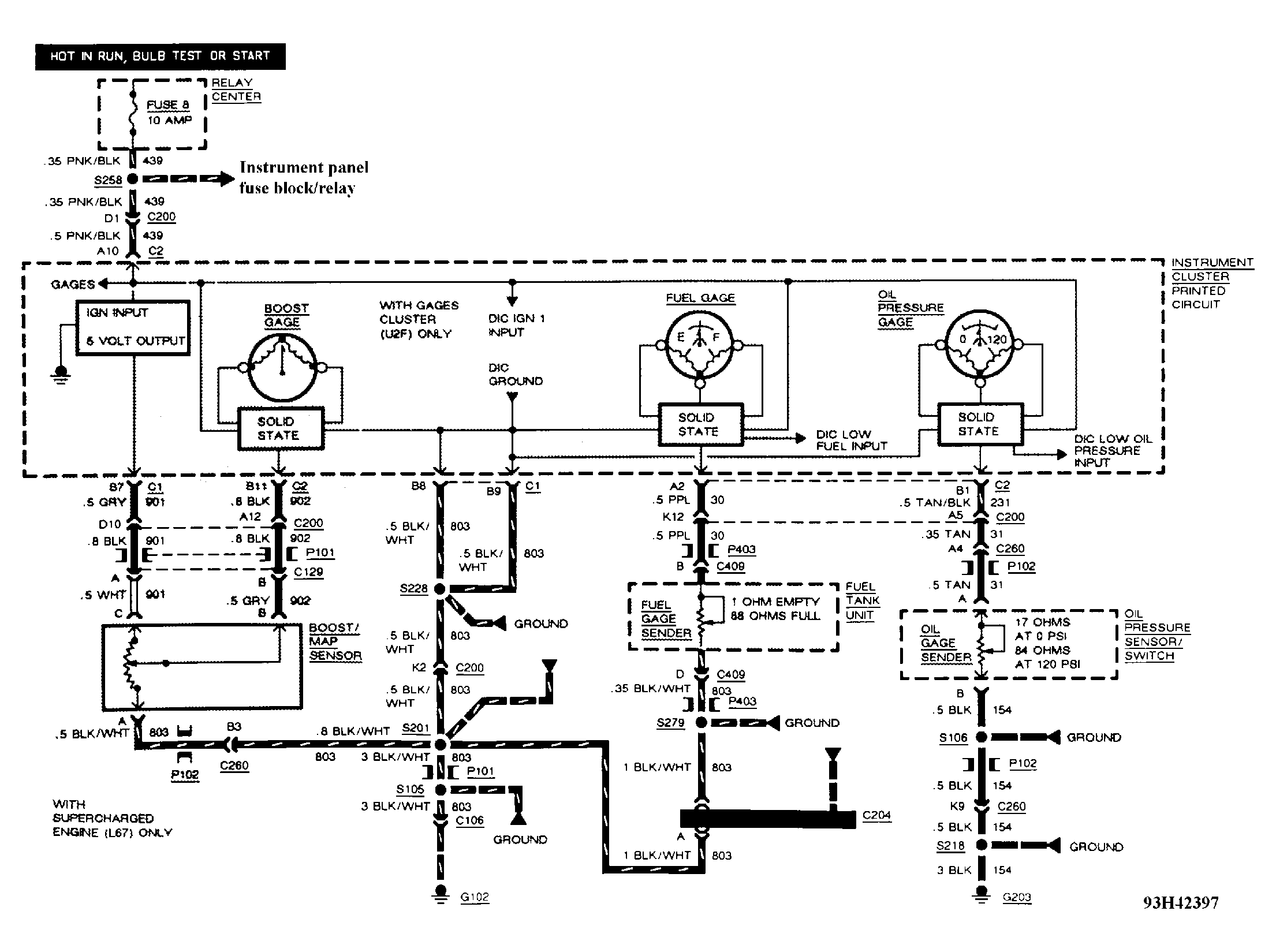

Fig 10: Analog Instrument Panel Wiring Diagram (U2F & U50 - 1 Of 7)

Courtesy of GENERAL MOTORS CORP.

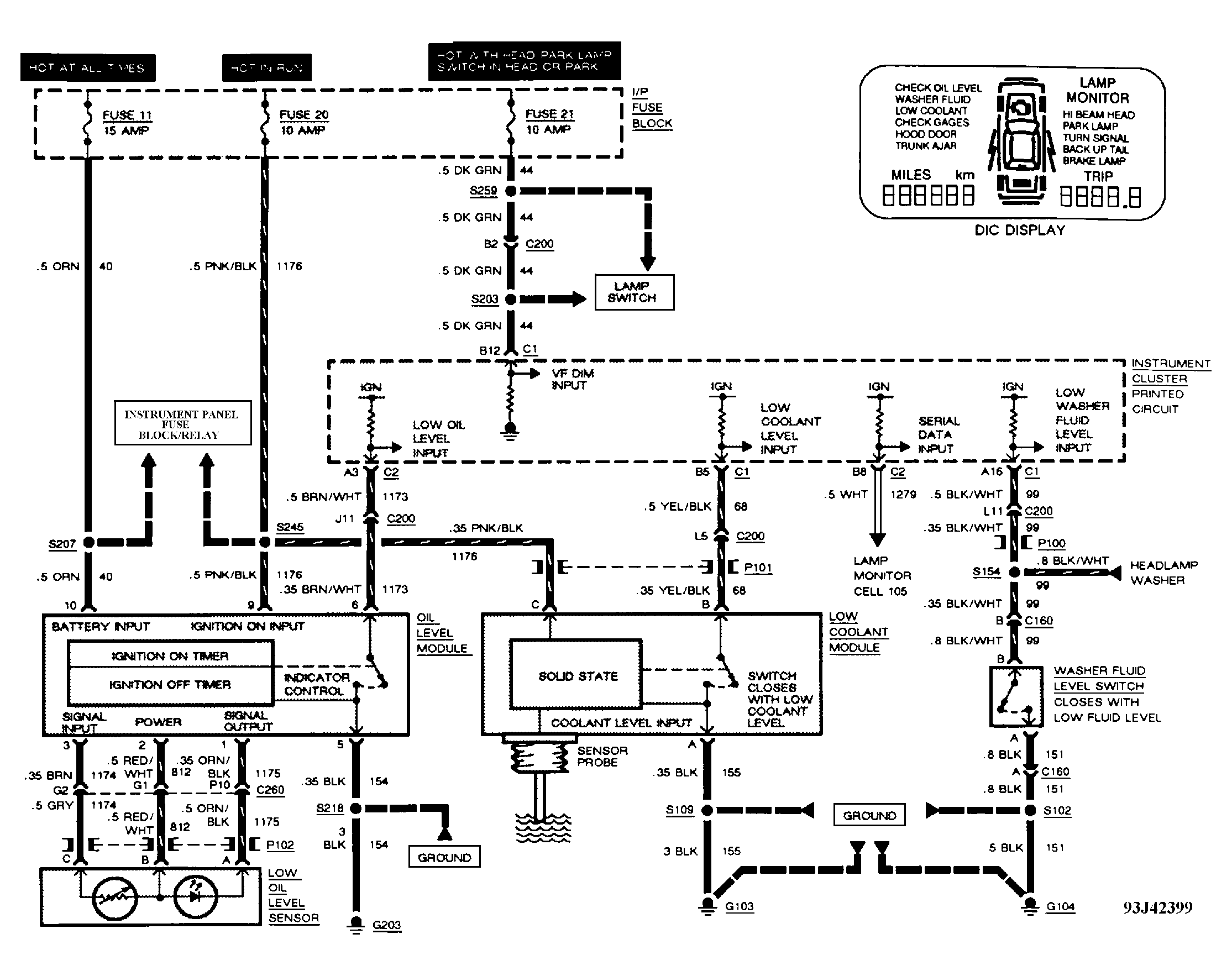

Fig 11: Analog Instrument Panel Wiring Diagram (U2F & U50 - 2 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 12: Analog Instrument Panel Wiring Diagram (U2F & U50 - 3 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 13: Analog Instrument Panel Wiring Diagram (U2F & U50 - 4 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 14: Analog Instrument Panel Wiring Diagram (U2F & U50 - 5 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 15: Analog Instrument Panel Wiring Diagram (U2F & U50 - 6 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 16: Analog Instrument Panel Wiring Diagram (U2F & U50 - 7 Of 7)

Courtesy of GENERAL MOTORS CORP.
