Wiring Diagrams

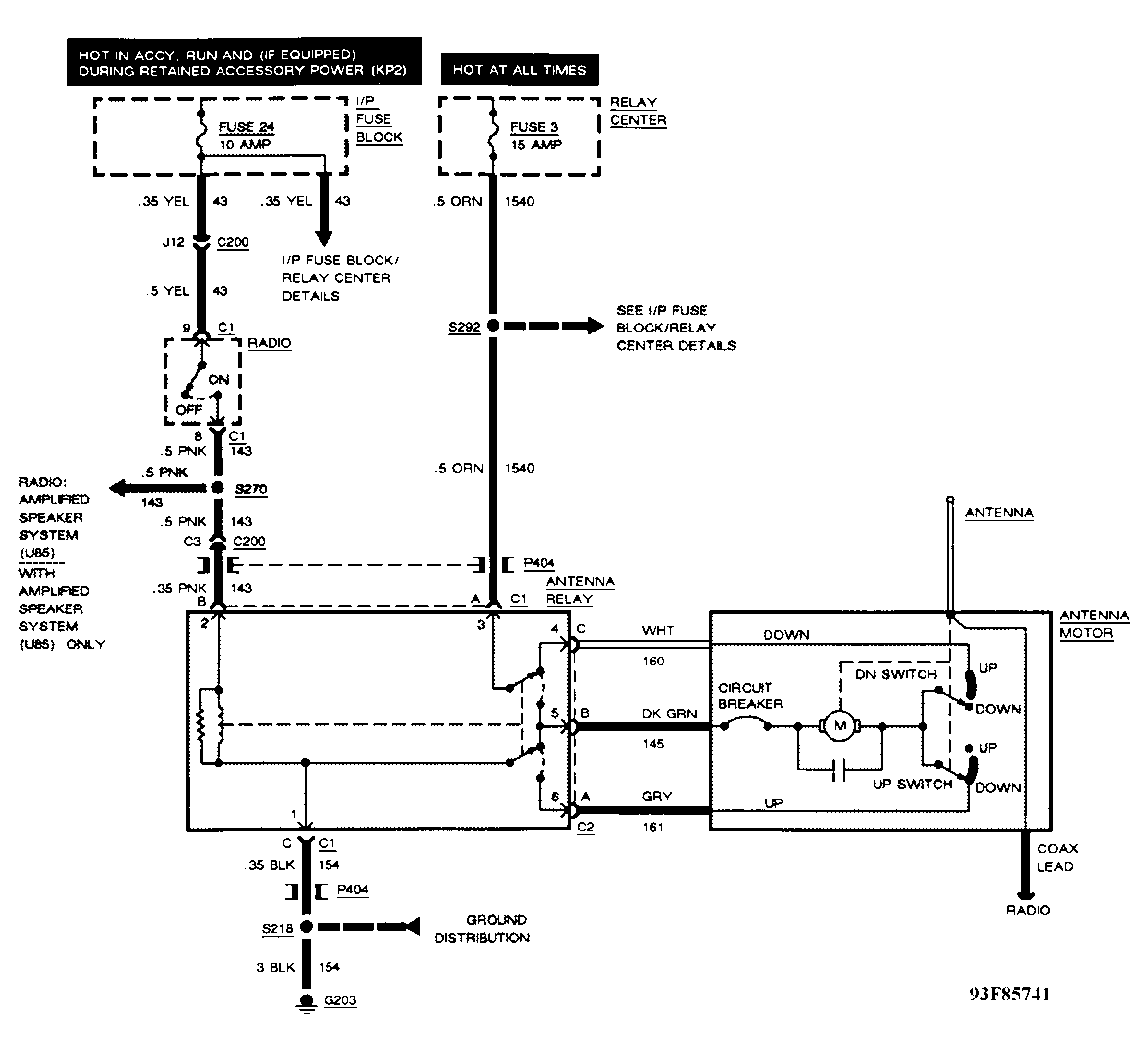

Fig 1: Power Antenna Wiring Diagram (All Models)

G93F85741

Courtesy of GENERAL MOTORS CORP.
