Wiring Diagrams

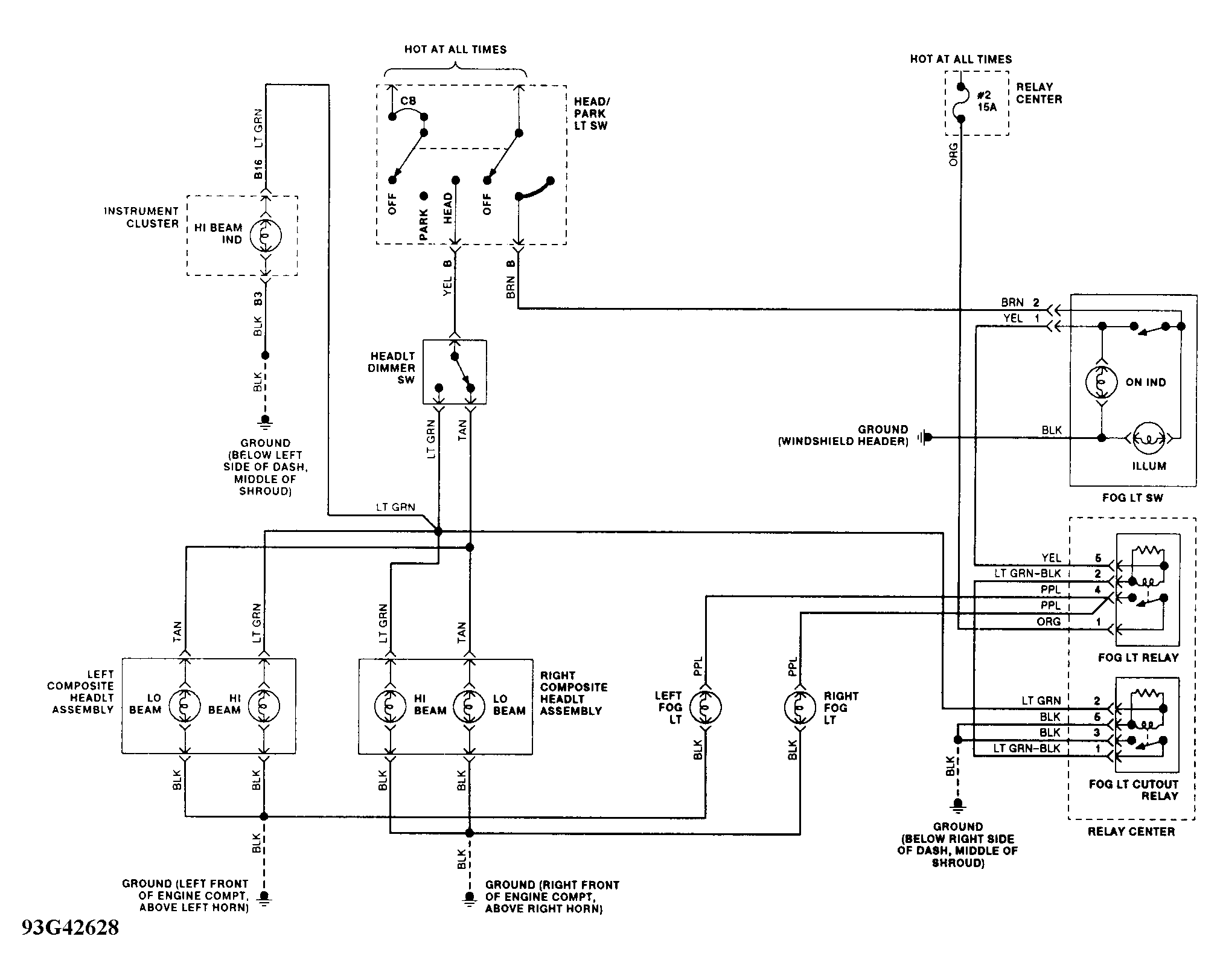

Fig 1: Wiring Diagram (Except SE, SSE & SSEI) (Bonneville)

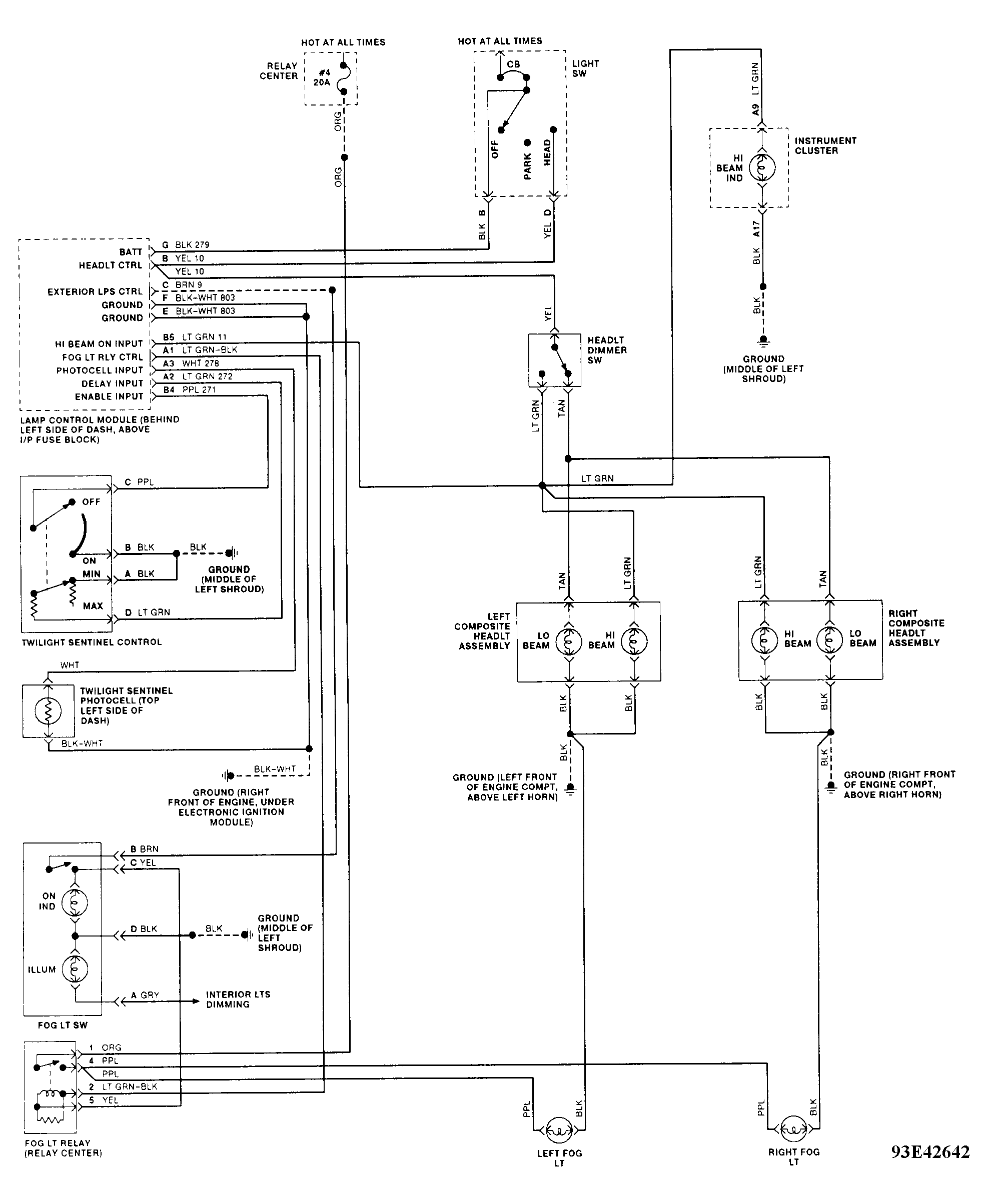

Fig 2: Wiring Diagram (SE) (Bonneville)

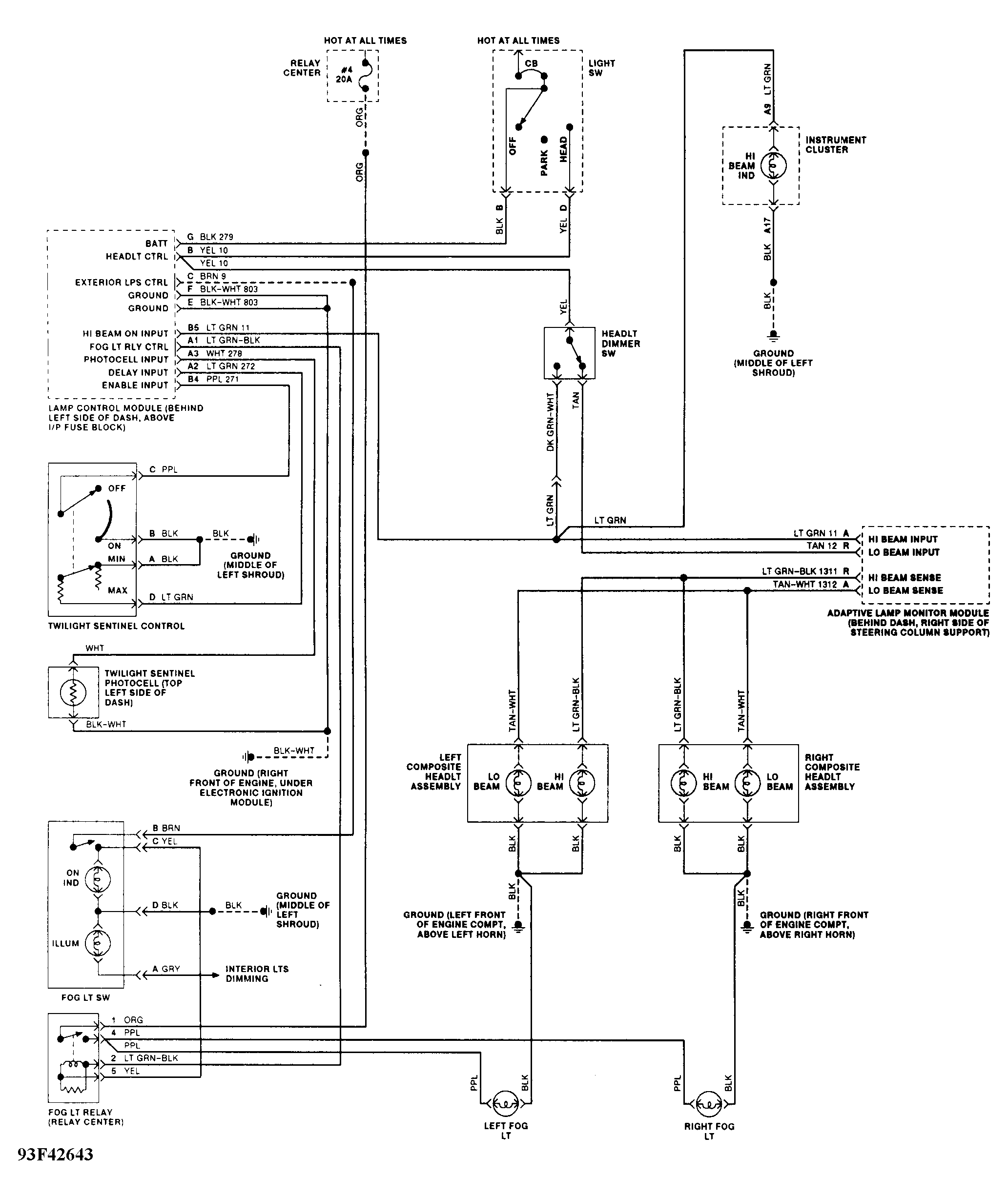

Fig 3: Wiring Diagram (SSE/SSEI) (Bonneville)

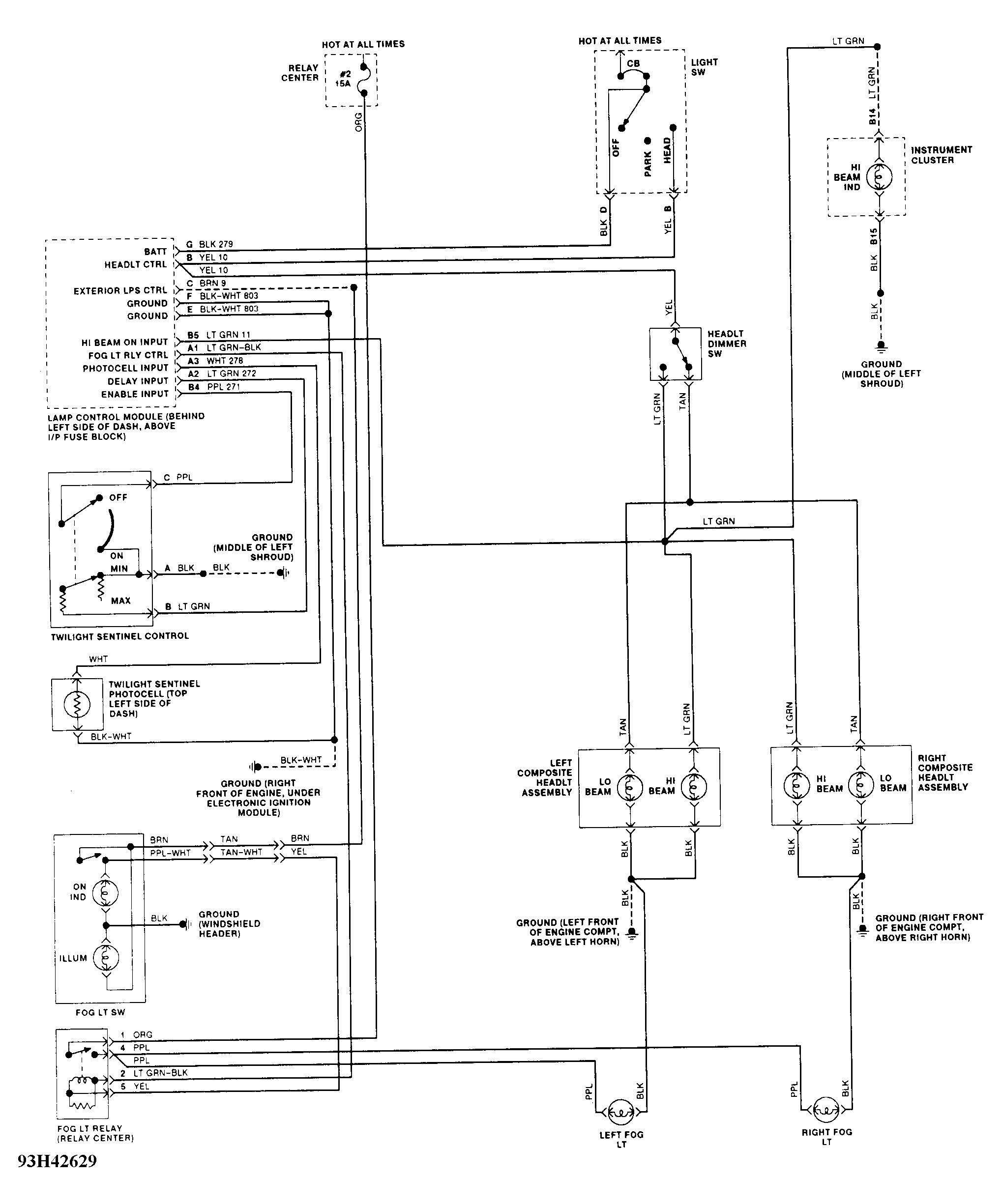

Fig 4: Wiring Diagram (W/O Driver Information Center) (Ninety-Eight)

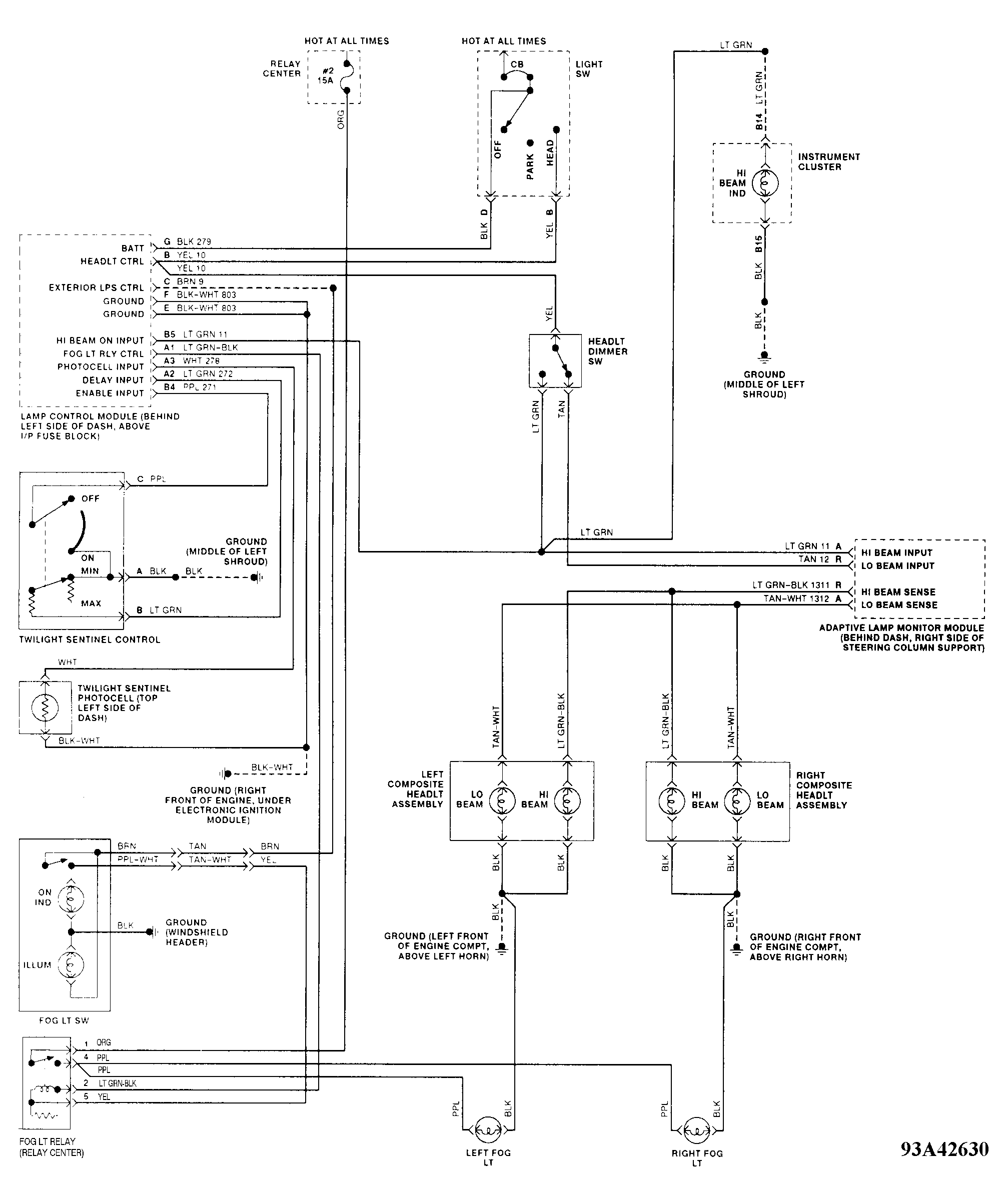

Fig 5: Wiring Diagram (W/ Driver Information Center) (Ninety-Eight)
