Track Bar: Installation

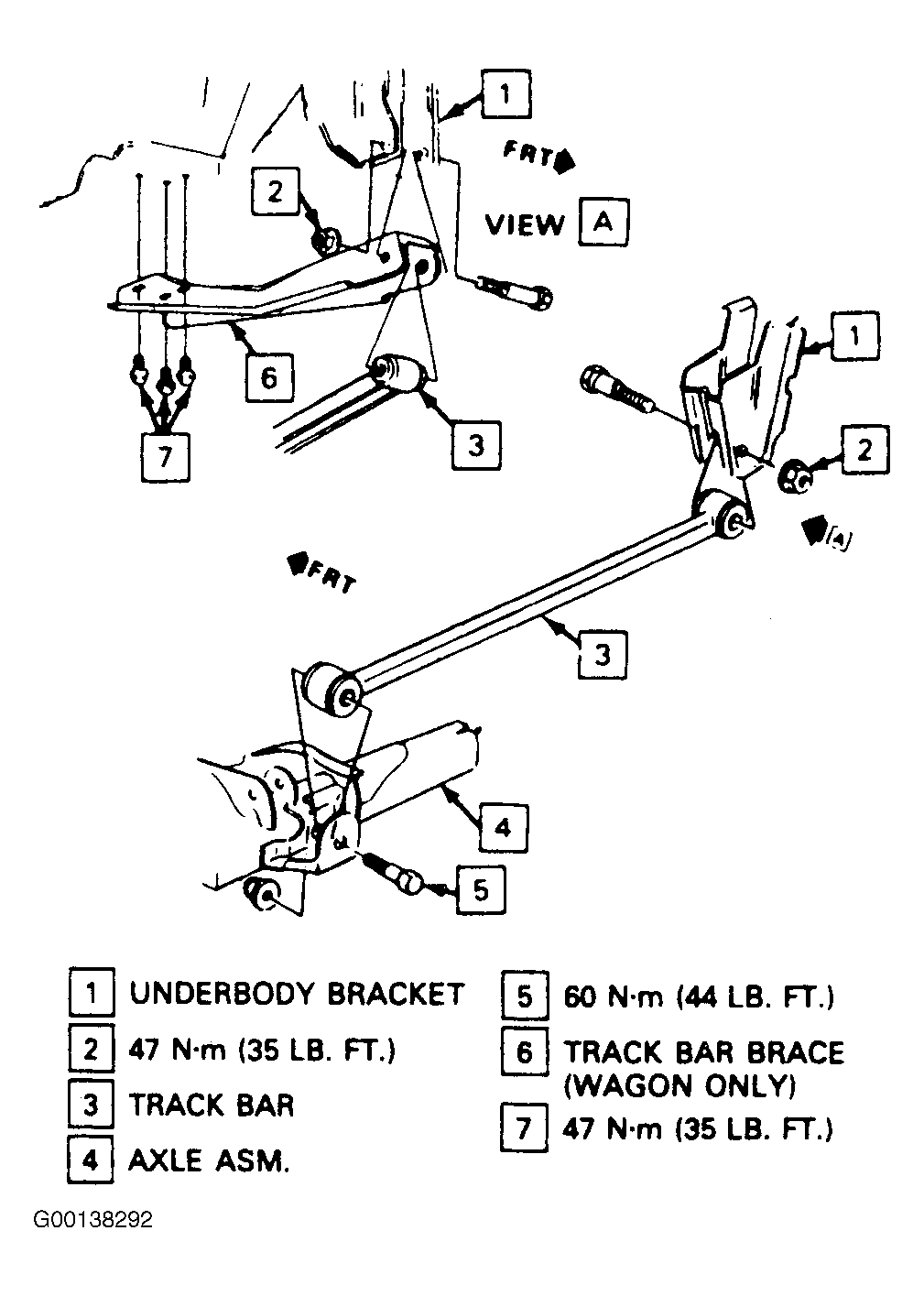

  1. Position track bar at axle mounting bracket, and loosely install bolt and nut. See Figure .
  2. Place other end of track bar in body reinforcement, and install bolt and nut. Tighten nut at axle bracket and nut at underbody reinforcement to specification. See TORQUE SPECIFICATIONS  .
  3. Remove rear axle support and lower vehicle.
