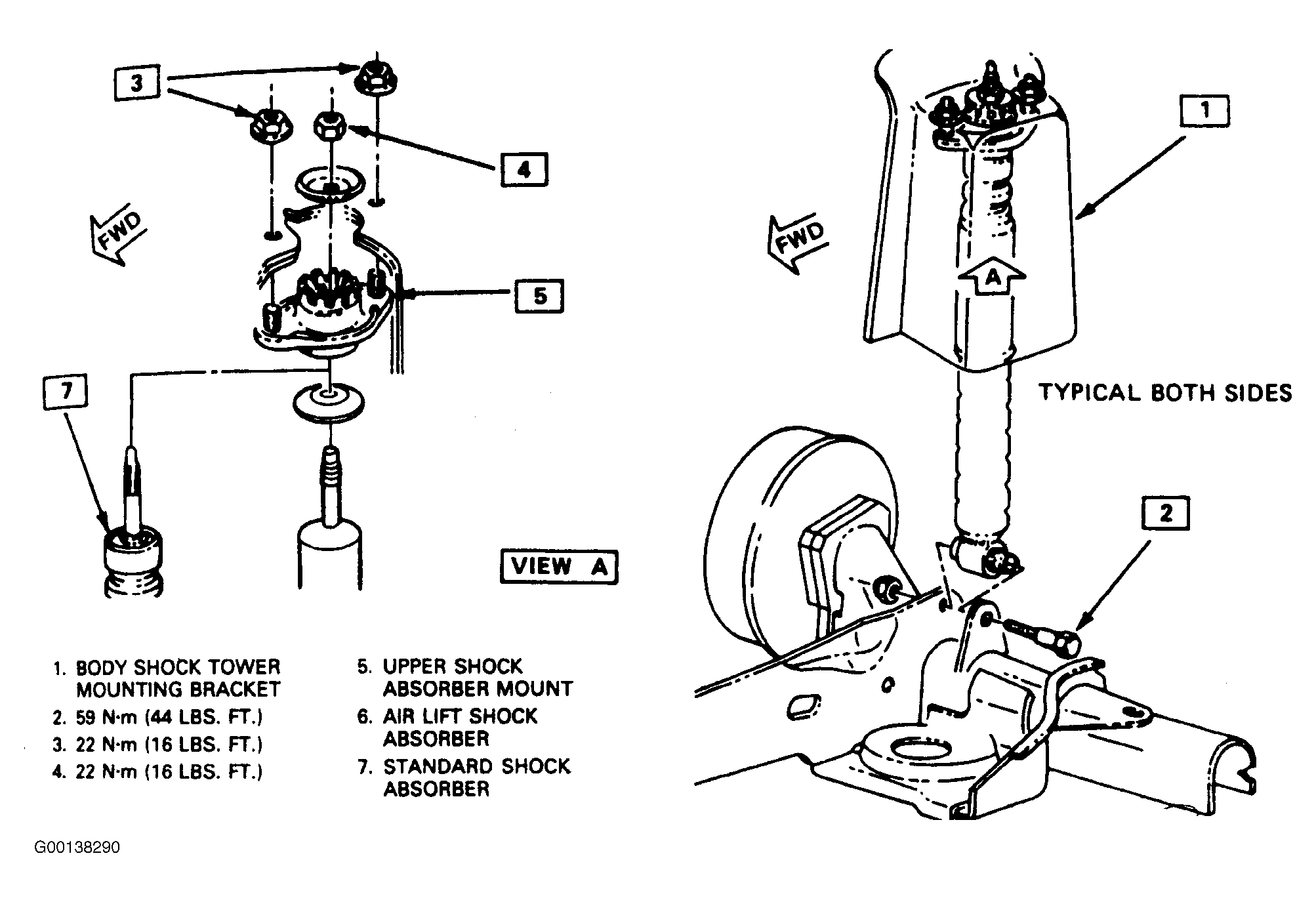

Shock Absorber: Installation
- Install shock at lower attachment by feeding bolt through holes and loosely installing nut.
- Install ELC hose, if equipped.
- Lower vehicle enough to guide upper stud through body opening, and install nut loosely. Tighten lower shock absorber nut to specification. See TORQUE SPECIFICATIONS .
- Lower vehicle all the way, and tighten upper shock absorber nut to specification. See TORQUE SPECIFICATIONS .
- Replace trim.
