Rear Wheel Stud: Removal
CAUTION:
Do not remove stud with hammer, as damage to bearing will result.
- Raise vehicle on hoist. Remove tire and wheel assembly.Remove brake drum.

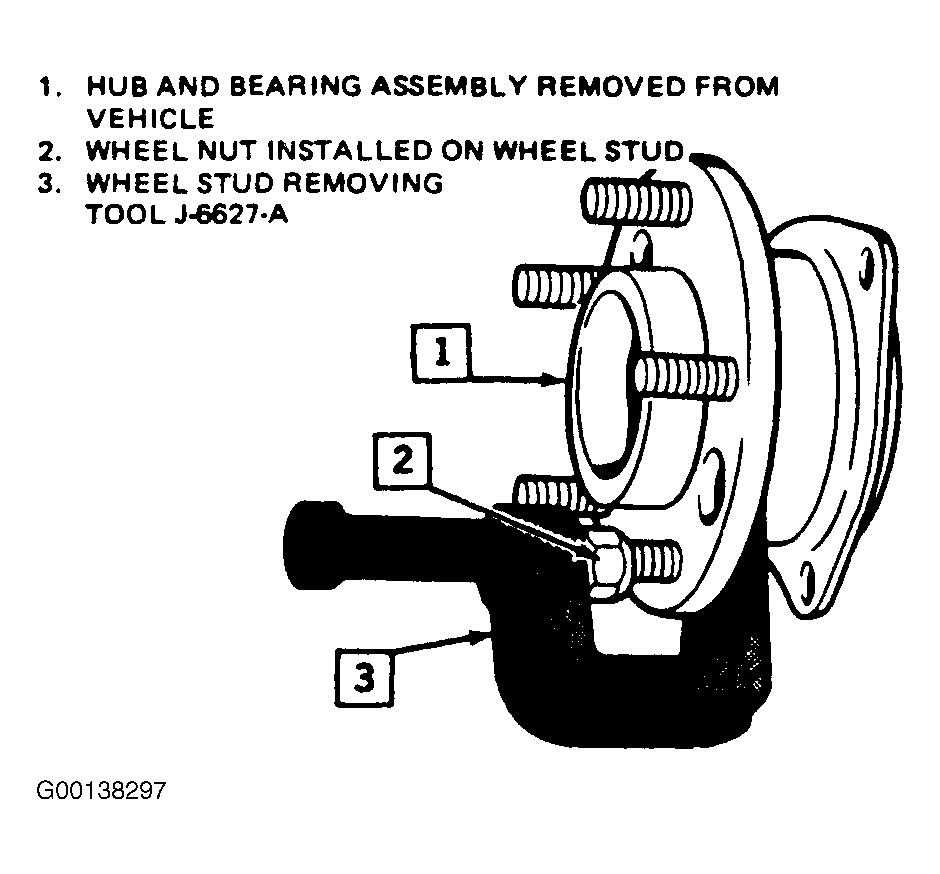

- Using Wheel Stud Remover (J 6627-A), remove wheel stud. Press stud from its seat in hub. See Fig 1 .
- Remove nut and pull stud out of hub.
