All Gauges Inoperative

  1. Remove instrument cluster. Turn ignition switch to RUN position. Connect test light between ground and instrument cluster connector terminal D10. See Fig 2 . If test light does not come on, repair open in Pink/White wire to connector terminal D10.
  2. If test light comes on, connect test light between ground and connector terminal C5. If test light does not come on, repair open in Pink/Black wire to connector terminal C5. If test light comes on, connect test light between ground and connector terminal D5.
  3. If test light does not come on, repair open in Pink/Black wire to connector terminal D5. If test light comes on, connect test light between connector terminals C7 and D10. If test light does not come on, repair open in Black wire to connector terminal C7.
  4. If test light comes on, connect test light between connector terminals C8 and D10. If test light does not come on, repair open in Black wire to connector terminal C8. If test light comes on, connect test light between connector terminals D8 and D10.
  5. If test light does not come on, repair open in Black wire to connector terminal D8. If test light comes on, check for poor connection at instrument cluster connector. If connection is okay, replace instrument cluster.

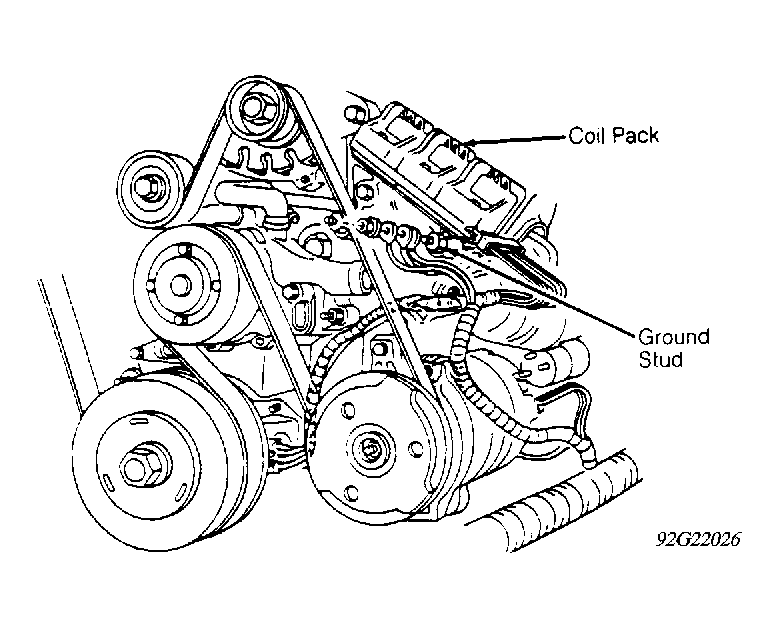

Fig 1: Locating Ground Wire Stud
G92G22026Courtesy of GENERAL MOTORS CORP.
INSTRUMENT CLUSTER CONNECTOR TERMINALS

Cavity Wire Color (Circuit Number) Description
C3 Tan (231) Oil Pressure Signal
C4 Dark Green (135) Coolant Temp Signal
C5 Pink/Black (39) (1) Ignition
C7 Black (151) Ground
C8 Black (151) Ground
C10 Light Blue (14) Left Turn Signal
C11 Light Green (11) High Beam Signal
C12 Dark Blue (15) Right Turn Signal
C13 Yellow (237) Fasten Belts Light Power Feed
C15 Brown/White (419) SES Light Control
D3 Purple (30) Fuel Level Signal
D4 Dark Green (389) Vehicle Speed Input
D5 Pink/Black (39) (1) Ignition
D7 White (121) Tach Signal
D8 Black (151) Ground
D9 Gray (8) Instrument Cluster Dimming
D10 Pink/White (350) Ignition (Hot In RUN)
D13 Purple (865) ABS Light Control
D14 Tan/White (33) BRAKE Light Control
D16 Black/Orange (158) GATE AJAR Light Control
(1) Hot in RUN, BULB TEST and START position.
Fig 2: Identifying Instrument Cluster Connector Terminals
G92I22036Courtesy of GENERAL MOTORS CORP.
