Hydra-Matic 440-T4 (4T60 & 4T60E)

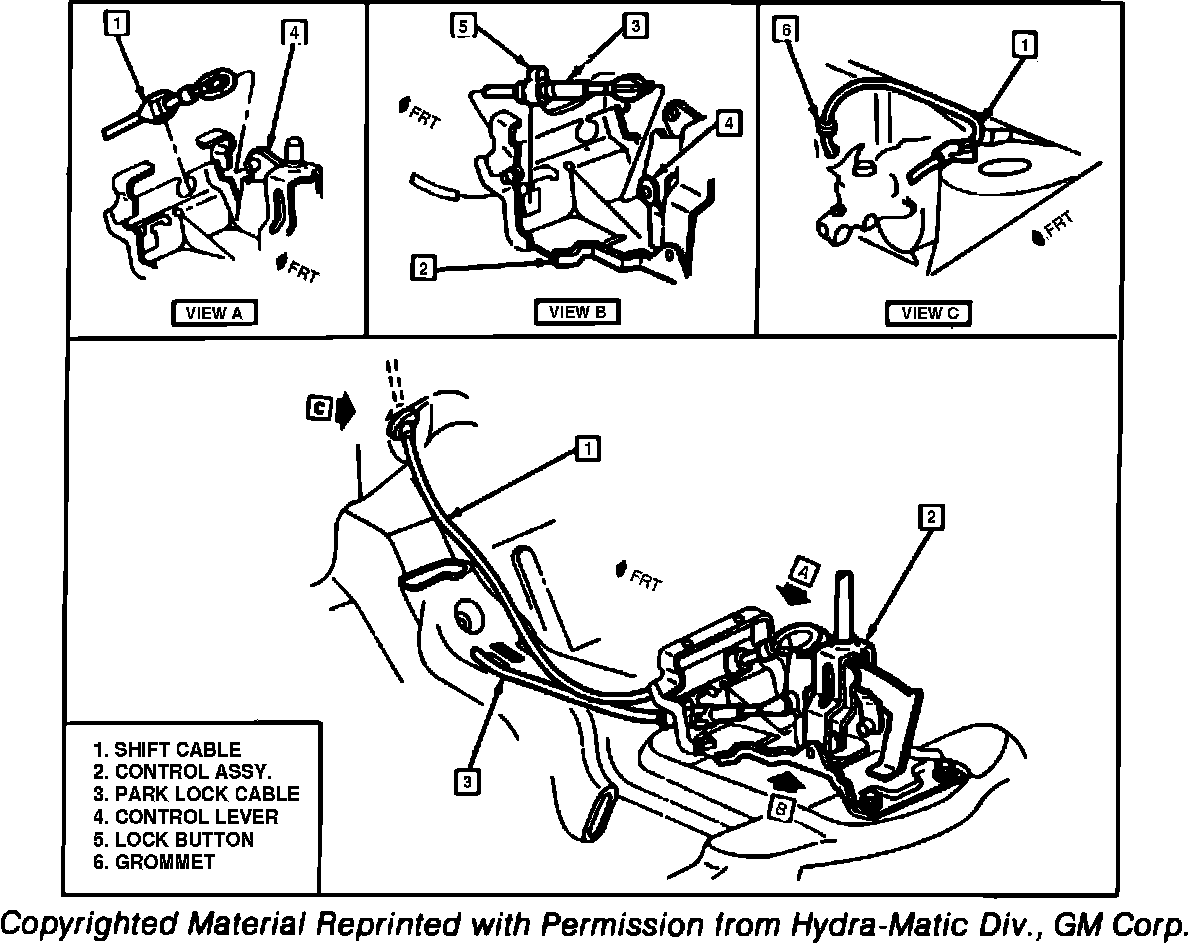

Fig. 3 Manual Linkage Adjustment:

1. Lift up on cable lock button, located near transaxle cable bracket.
2. Place transaxle manual control lever in Neutral position. Neutral position can be obtained by rotating the manual lever counterclockwise to Park position, then rotate lever clockwise from Park, through Reverse to Neutral.
3. Place transaxle selector lever in the Neutral position.
4. Push down on cable lock button Fig. 3.
