Home
>>
Pontiac
>>
1991
>>
6000 L4-151 2.5L
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - HVAC
>>
Refrigerant Pressure Sensor / Switch
>>
Locations
>>
A/C Low Pressure Cut-Off Switch
A/C Low Pressure Cut-Off Switch

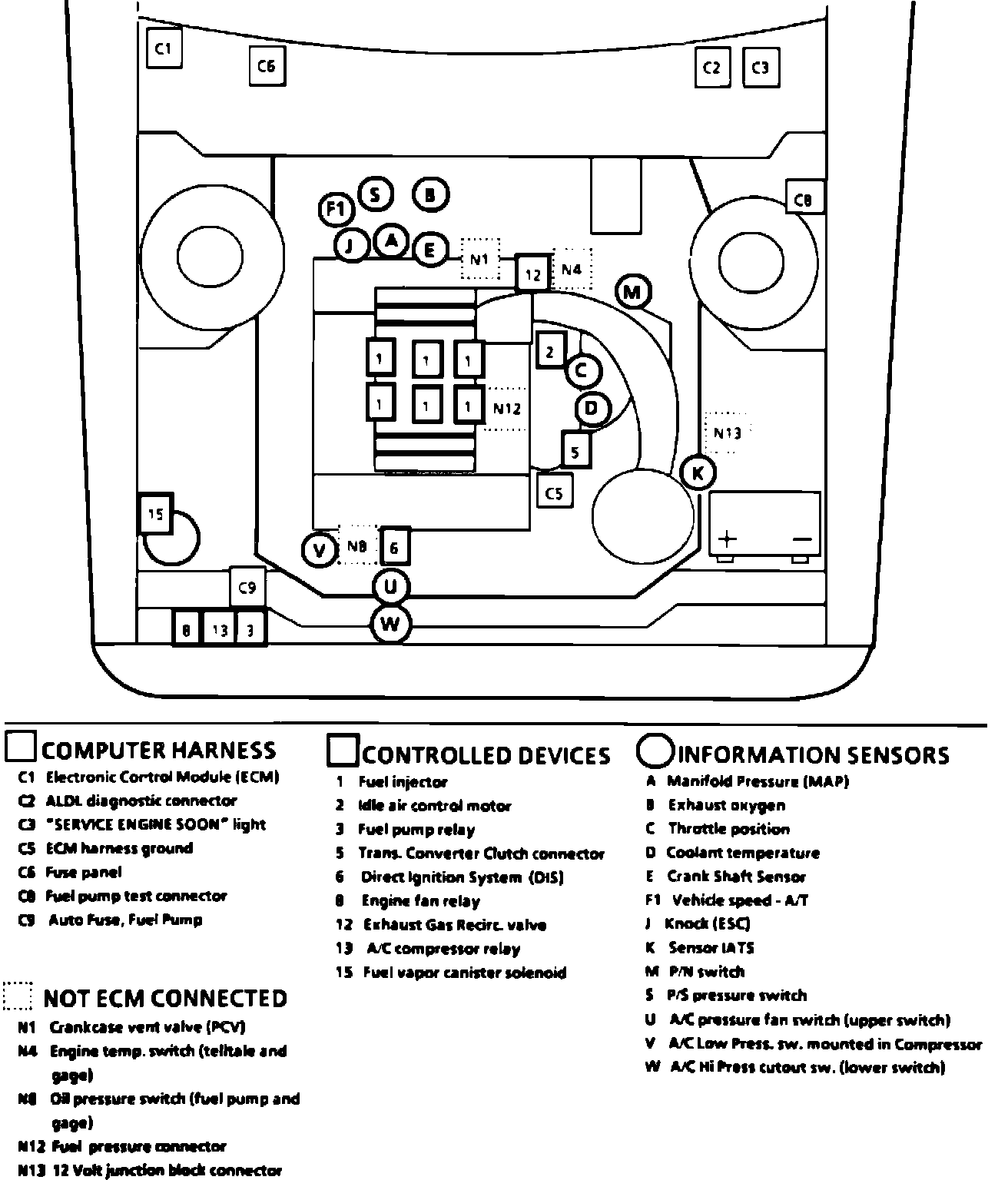

Engine Component Location.:
Lower RH Front Of Engine, In A/C Line
Applicable to: 6000 w/3.1L/V6-192
