Home >> Pontiac >> 1991 >> 6000 L4-151 2.5L >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Diagrams >> Electrical Diagrams >> Station Wagon

Station Wagon

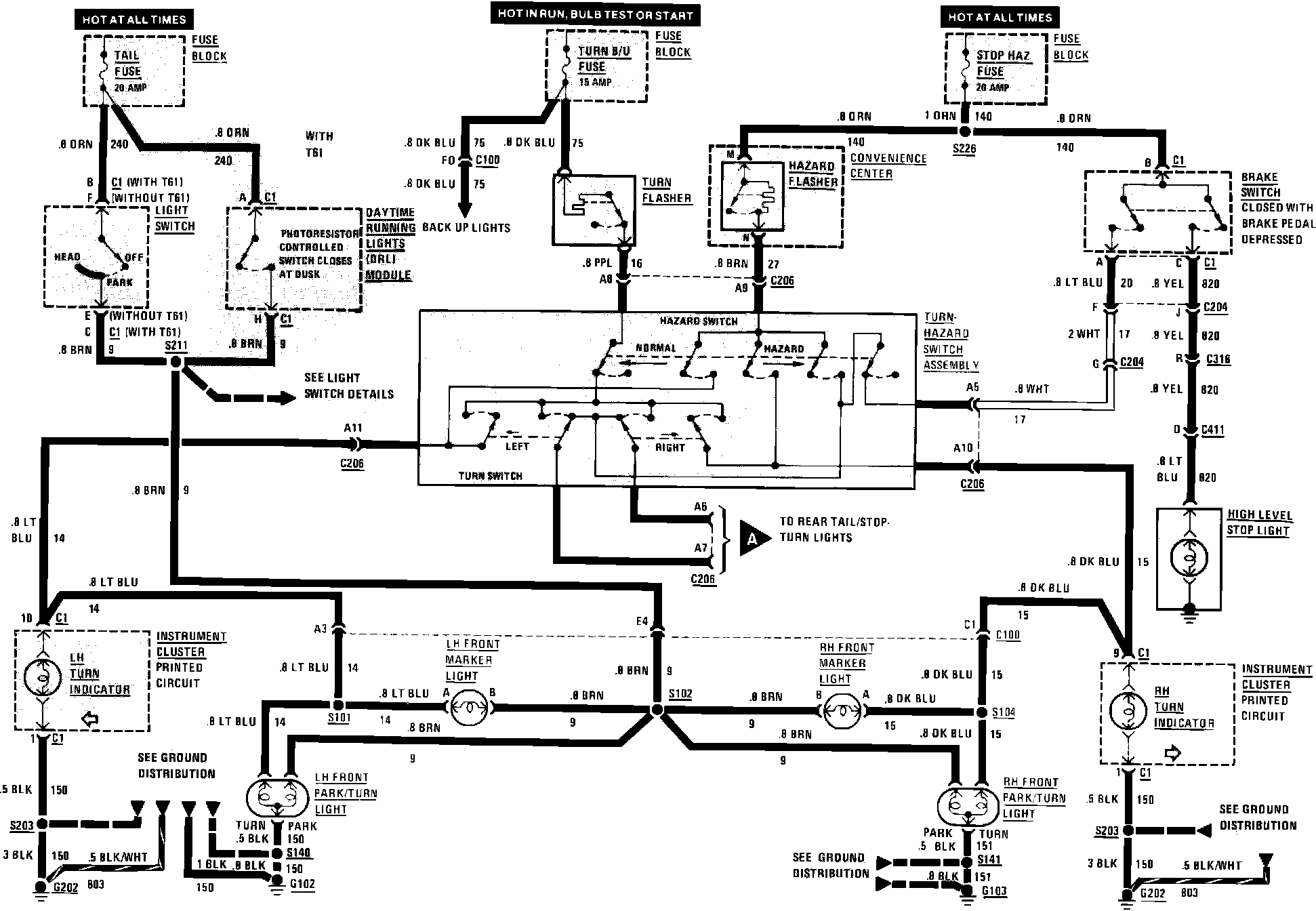

Exterior Lamps: Turn, hazard, Park, Marker & Stop (Wagon):



Exterior Lights. Front Marker, Hazard, Park, Stop & Turn:
