Instrument Panel, Gauges and Warning Indicators
>>
Volt Meter Gauge
Volt Meter Gauge

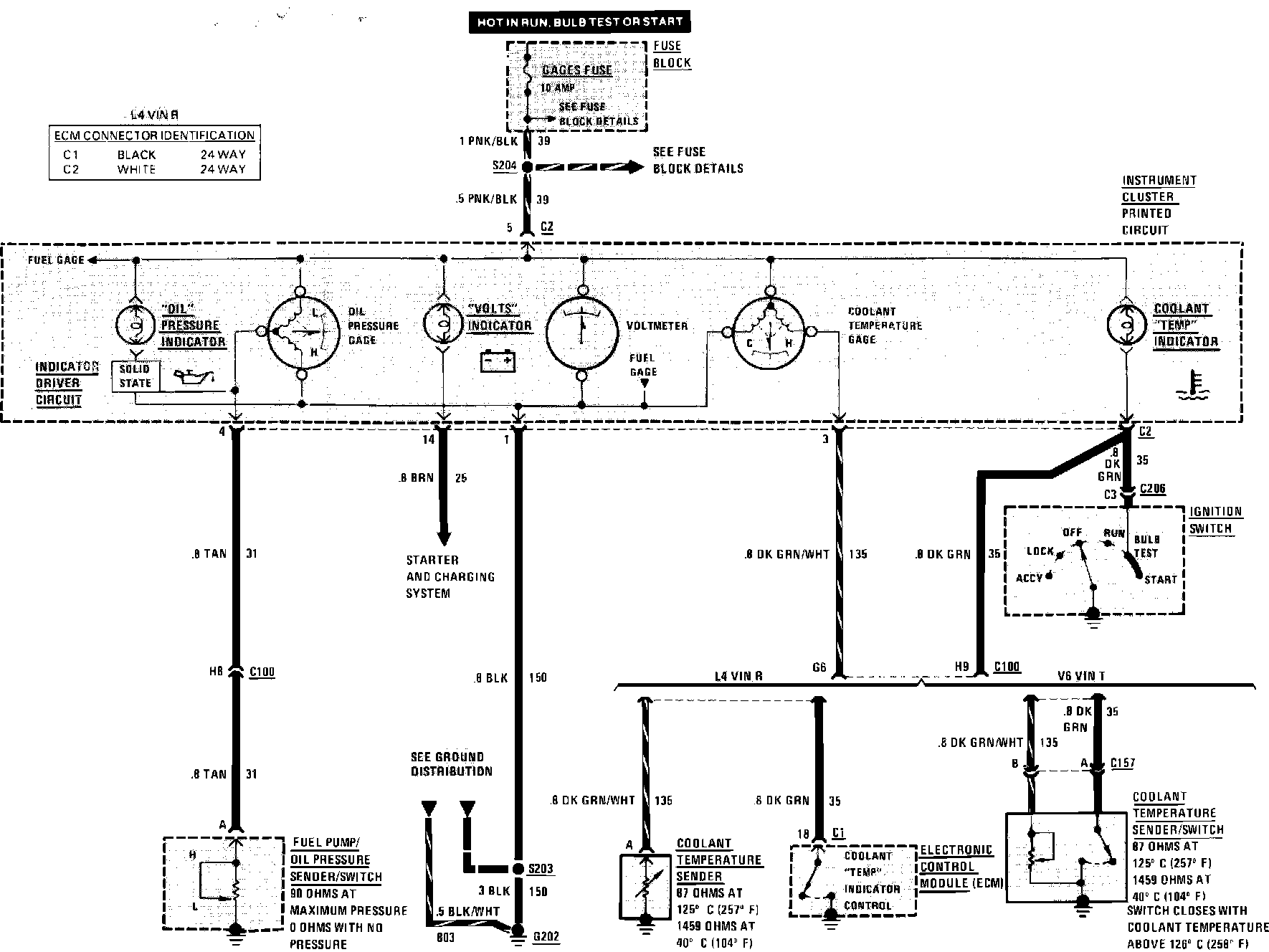

Instrument Panel: Gauges Cluster (Oil Pressure, Voltmeter & Coolant Temperature Gauges):
