Home >> Pontiac >> 1991 >> 6000 L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> Part 2 of 3

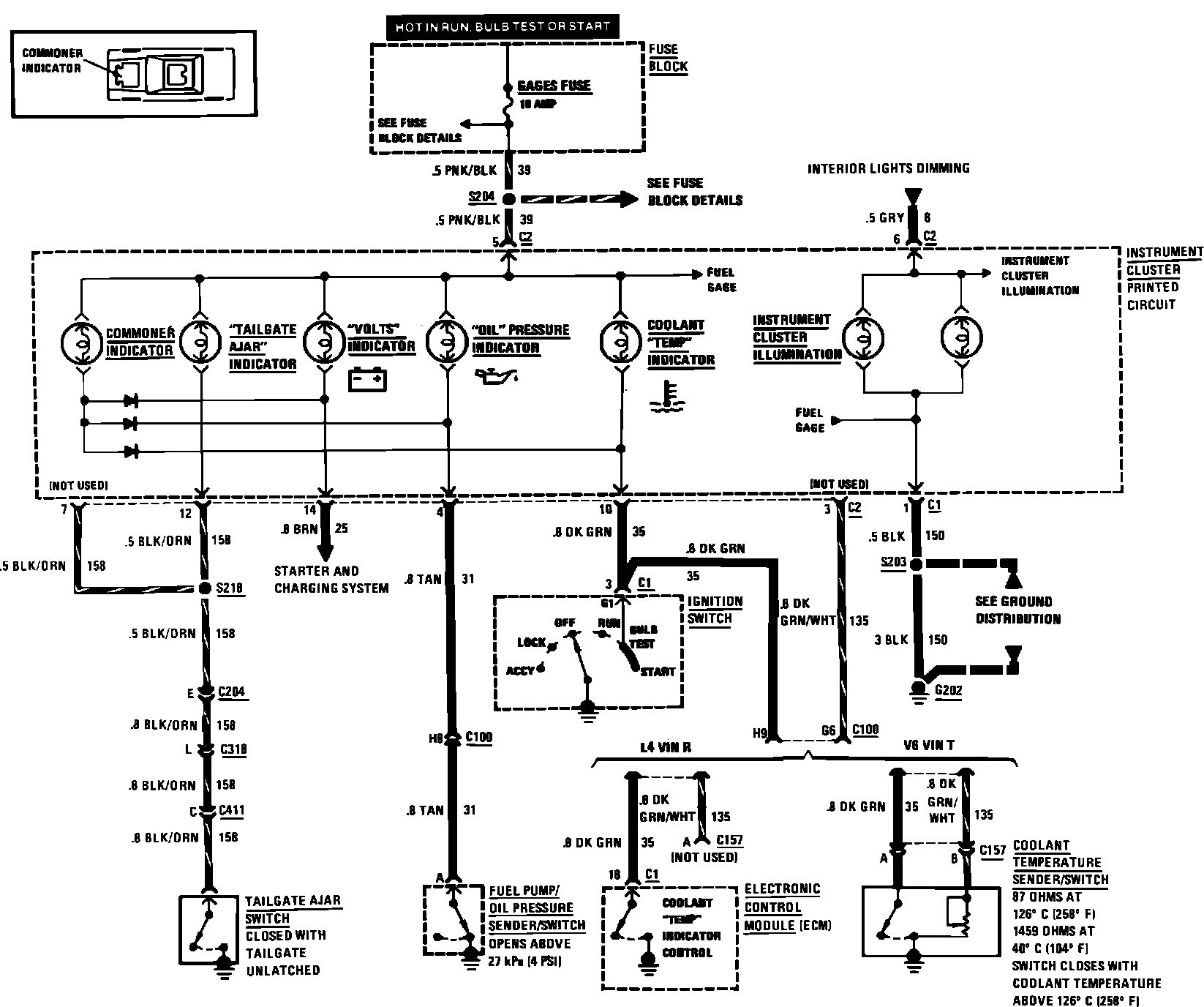

Part 2 of 3

Instrument Panel. Indicators:
