Home >> Pontiac >> 1991 >> 6000 L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> System Diagram >> With Daytime Running Lamps >> Part 2 of 2

Part 2 of 2

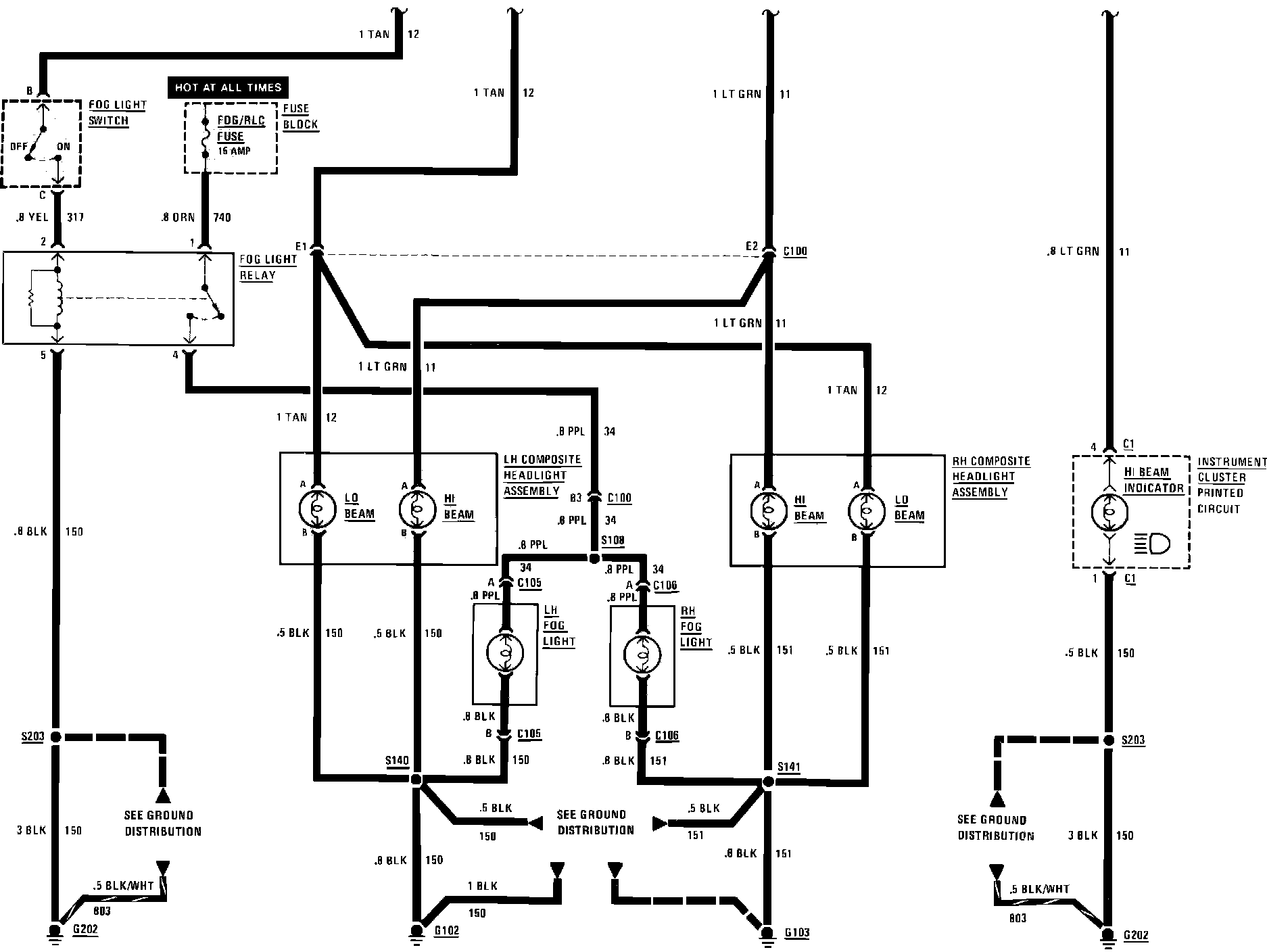

Headlamps and Fog Lamps: With Daytime Running Lamps:
