Home >> Pontiac >> 1991 >> 6000 L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fog/Driving Lamp >> Without Daytime Running Lamps (DRL) >> Part 1 of 2

Part 1 of 2

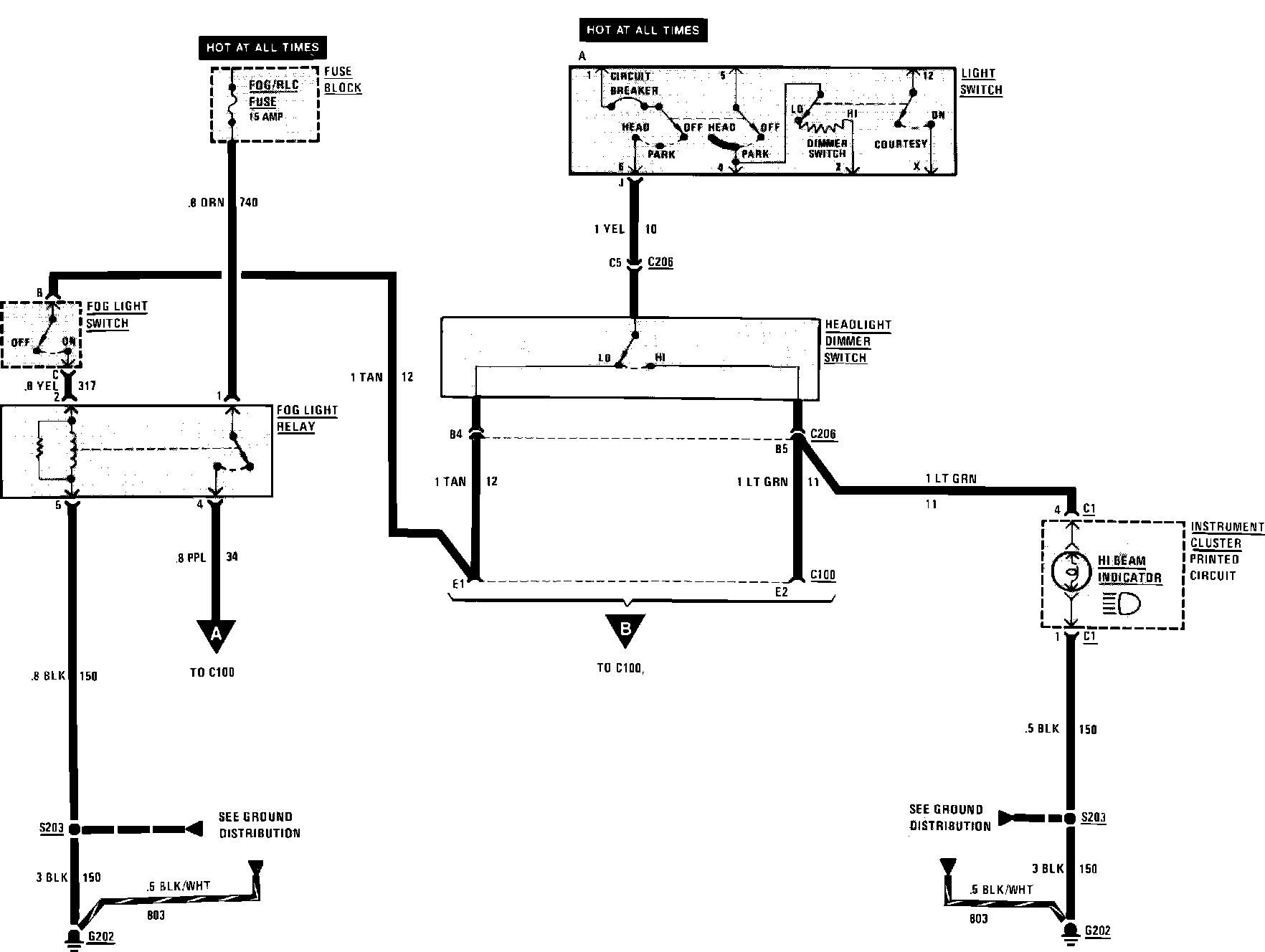

Headlamps with Fog Lamps:
