Removal & Installation (Safari)
- Disconnect negative battery cable. Remove 4 steering column trim plate attaching screws and remove trim plate. Remove shift indicator cable from steering column. Remove steering column attaching screws and lower steering column.

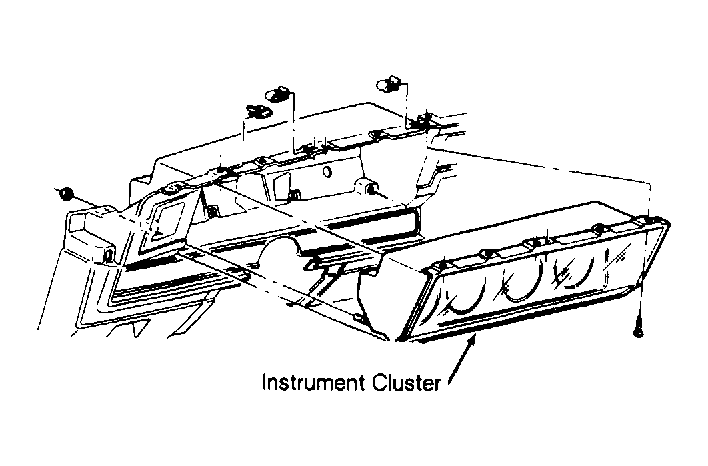

- Remove instrument cluster lens attaching screws. From behind instrument panel, remove nuts from stud in lower corner of cluster, speedometer cable, and wiring harness connector. Pull outward to remove cluster. To install, reverse removal procedure.
Courtesy of GENERAL MOTORS CORP.
