Rear Brake Shoes: Installation

To install, reverse removal procedure. Lubricate backing plate bosses and adjuster threads. Operate service brake to activate self-adjuster.

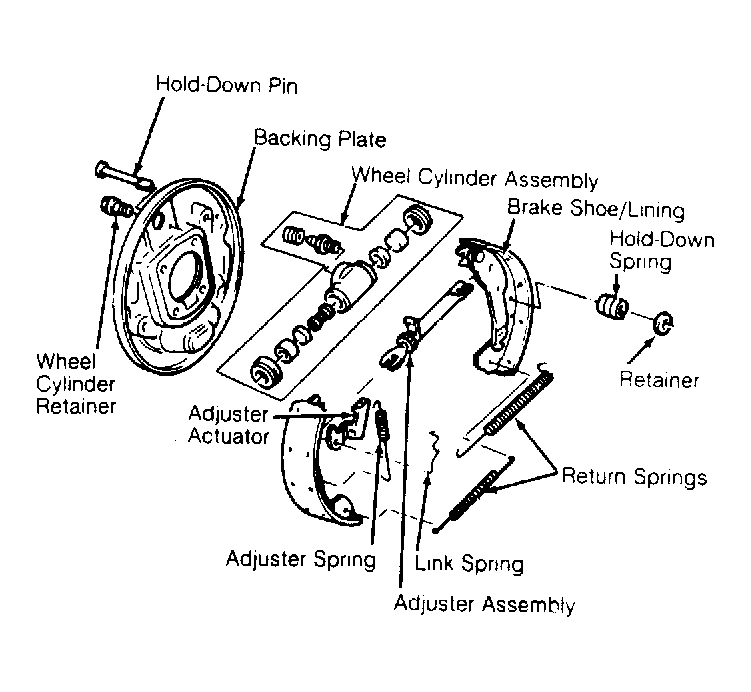

Fig 1: Exploded View of Rear Brake Assembly
G100291Courtesy of GENERAL MOTORS CORP.
