Upper Control Arm: Installation

To install, reverse removal procedure. Tighten pivot bolts with vehicle on ground and at curb height. If equipped with Nylock or prevailing torque nuts, tighten nut, NOT bolt, to achieve accurate torque.

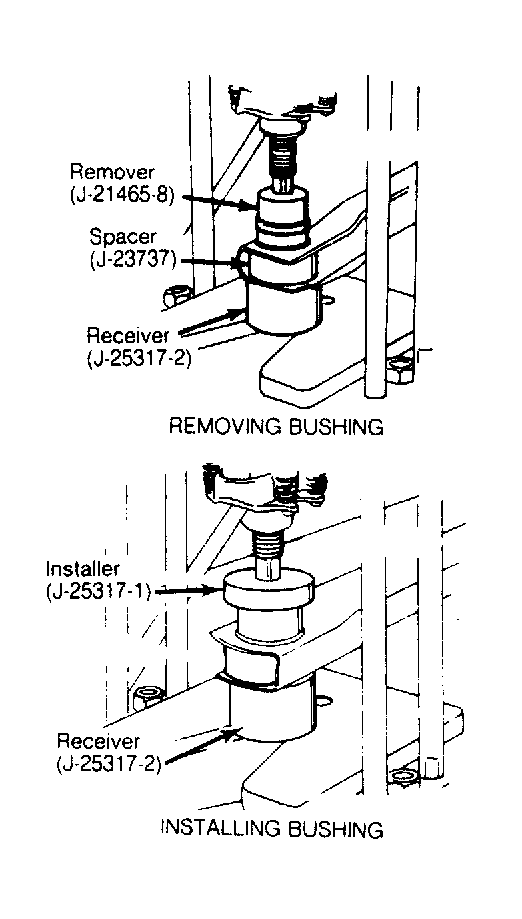

Fig 1: Replacing Control Arm Bushings (Typical)
G56476
