Idle Stop Screw Plug Removal

The throttle stop screw is set at the factory and often plugged to discourage unnecessary adjustment in the field. A thin steel plug covers the screw. To remove it, puncture the plug with an awl and pry the plug out. See Fig 1

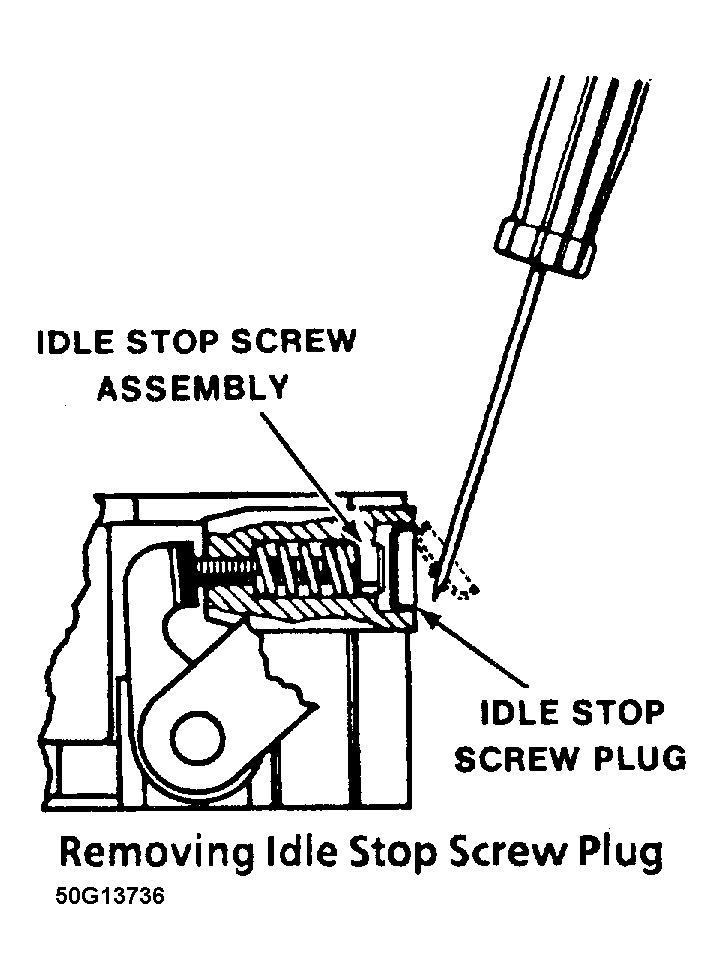

Fig 1: Removing Idle Stop Screw Plug
G50G13736
