Rear Main Bearing Oil Seal: Installation

Coat entire seal with engine oil. Install seal with Seal Installer (J-35621) until installer bottoms. To complete installation, reverse removal procedure. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS .

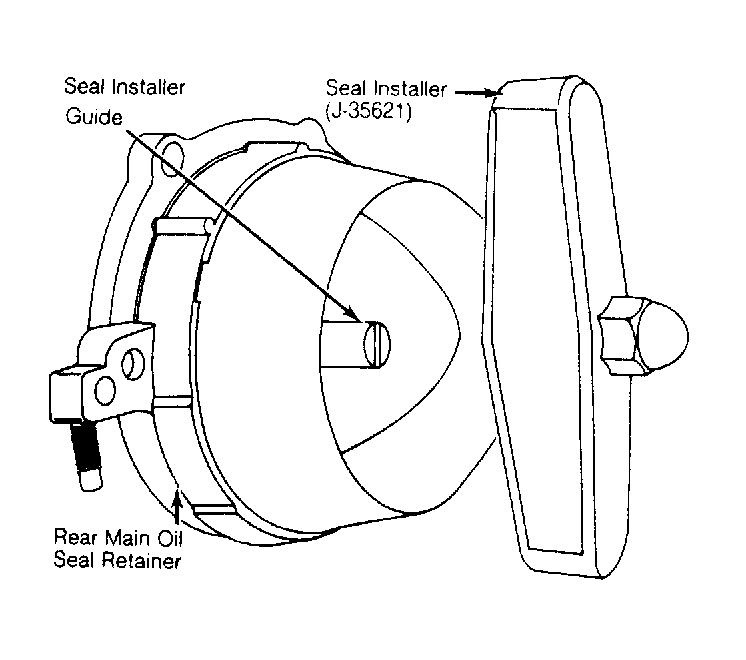

Fig 1: Installing Rear Main Bearing Oil Seal
G73488
