Serpentine Belt Routing (2.8L Camaro/Firebird)

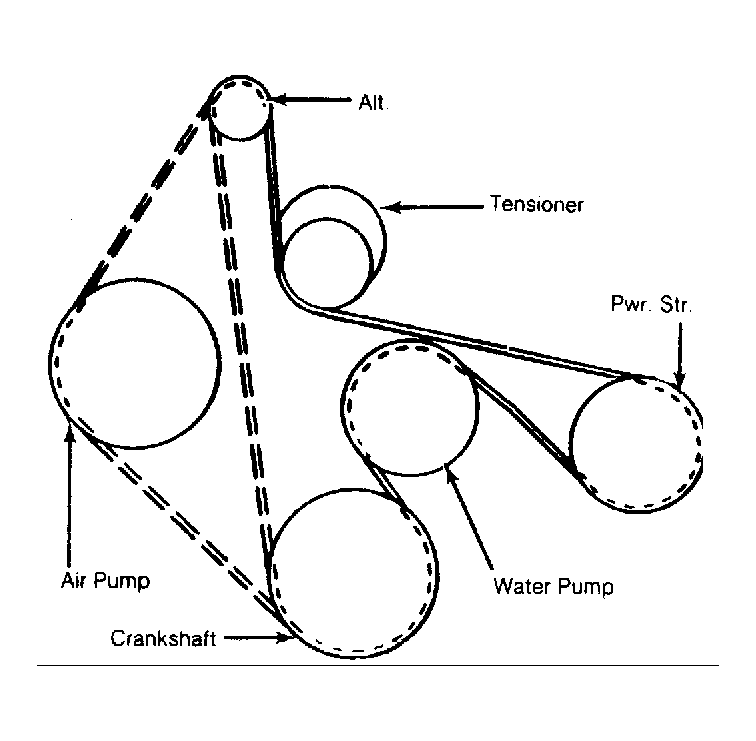

Fig 1: G.M. 2.8L Camaro/Firebird Engine Serpentine Belt Routing Without Air Conditioning
G55358
Fig 2: G.M. 2.8L Camaro/Firebird Engine Serpentine Belt Routing With Air Conditioning
G55359
