Wheel Speed Sensor Coax Cable Repair

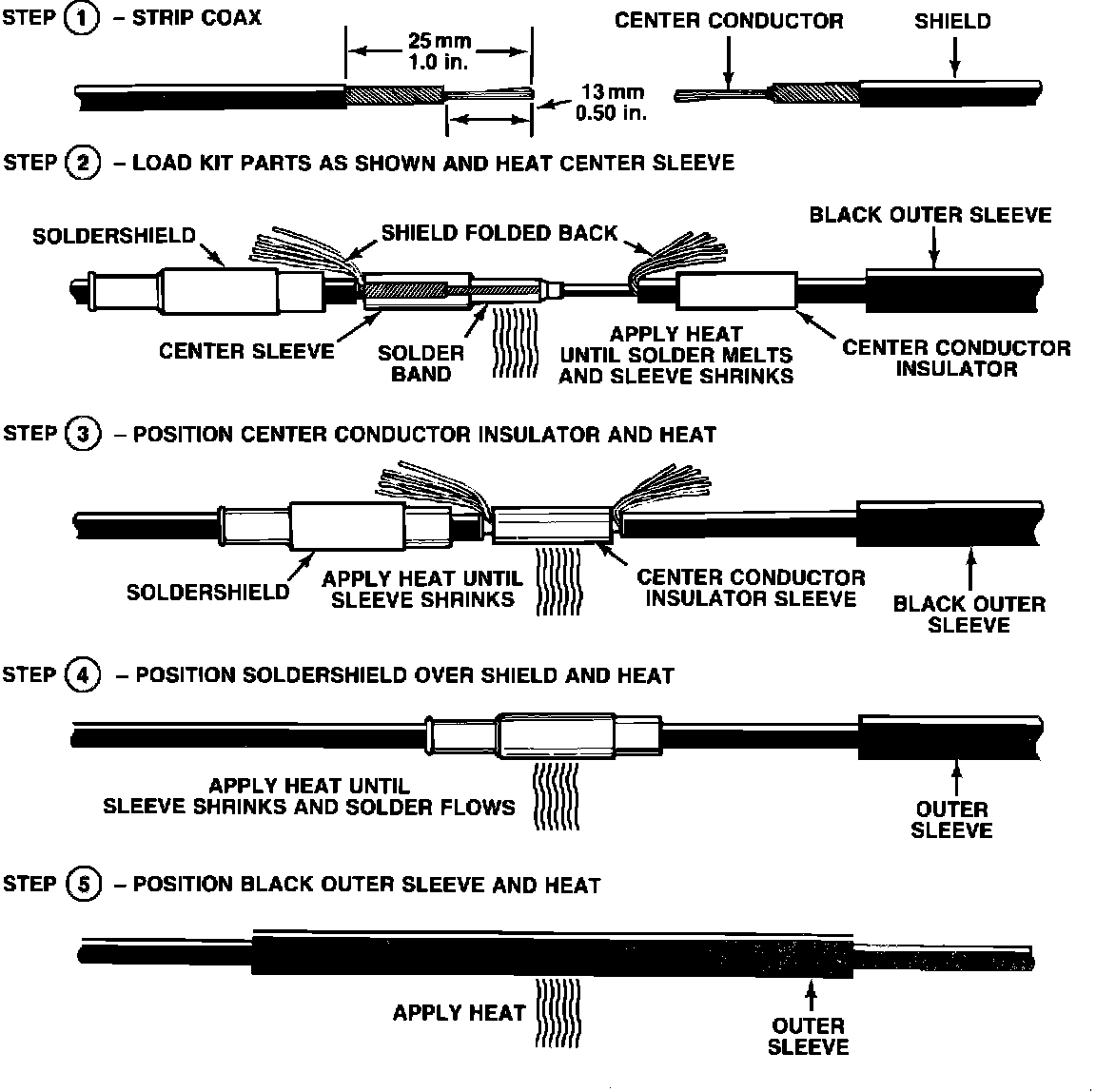

Fig. 1 Coaxial Cable Repair:

Follow the steps shown in Figure 1:
(1) Strip the two cable ends.
(2) Install the repair kit parts:
^ Black outer sleeve
^ Center conductor insulator
^ Solder-shield
^ Center sleeve Heat the center sleeve until the solder melts and the sleeve shrinks.
(3) Slide the center conductor insulator into place and heat it until it shrinks.
(4) Fold together the shield, slide the solder-shield into place, and heat it until the solder melts and the sleeve shrinks.
(5) Slide the black outer sleeve into position and heat it until it shrinks.
