1987-88 4-151/2.5L Celebrity, Grand AM, Fiero & 6000 W/TBI
1987-88 4-151/2.5L Celebrity, Grand AM, Fiero & 6000 W/TBI

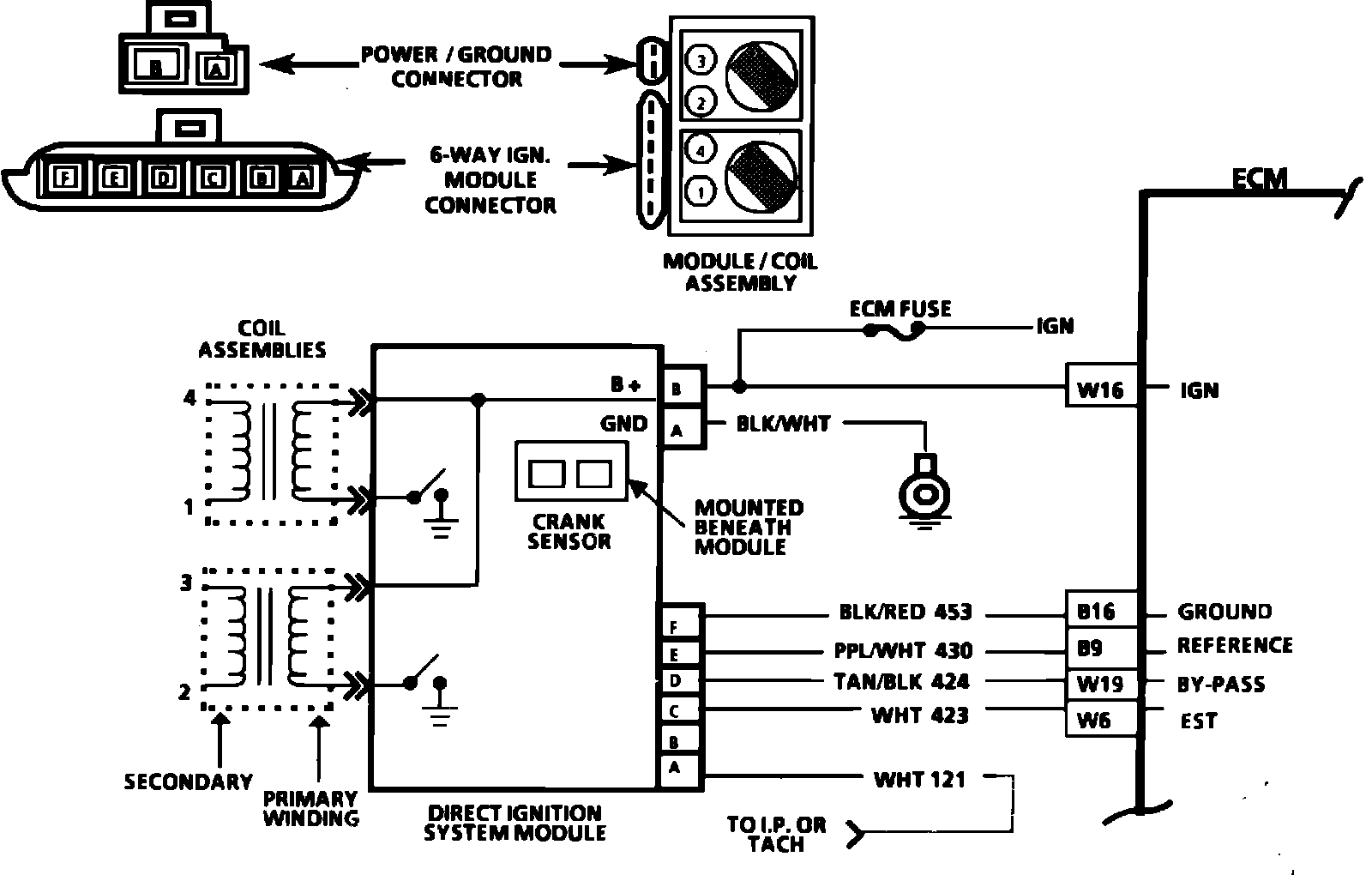

Fig. 2 DIS wiring schematic. 1987-88 4-151/2.5L Celebrity, Grand Am, Fiero & 6000 w/TBI:
