Parking Lamp

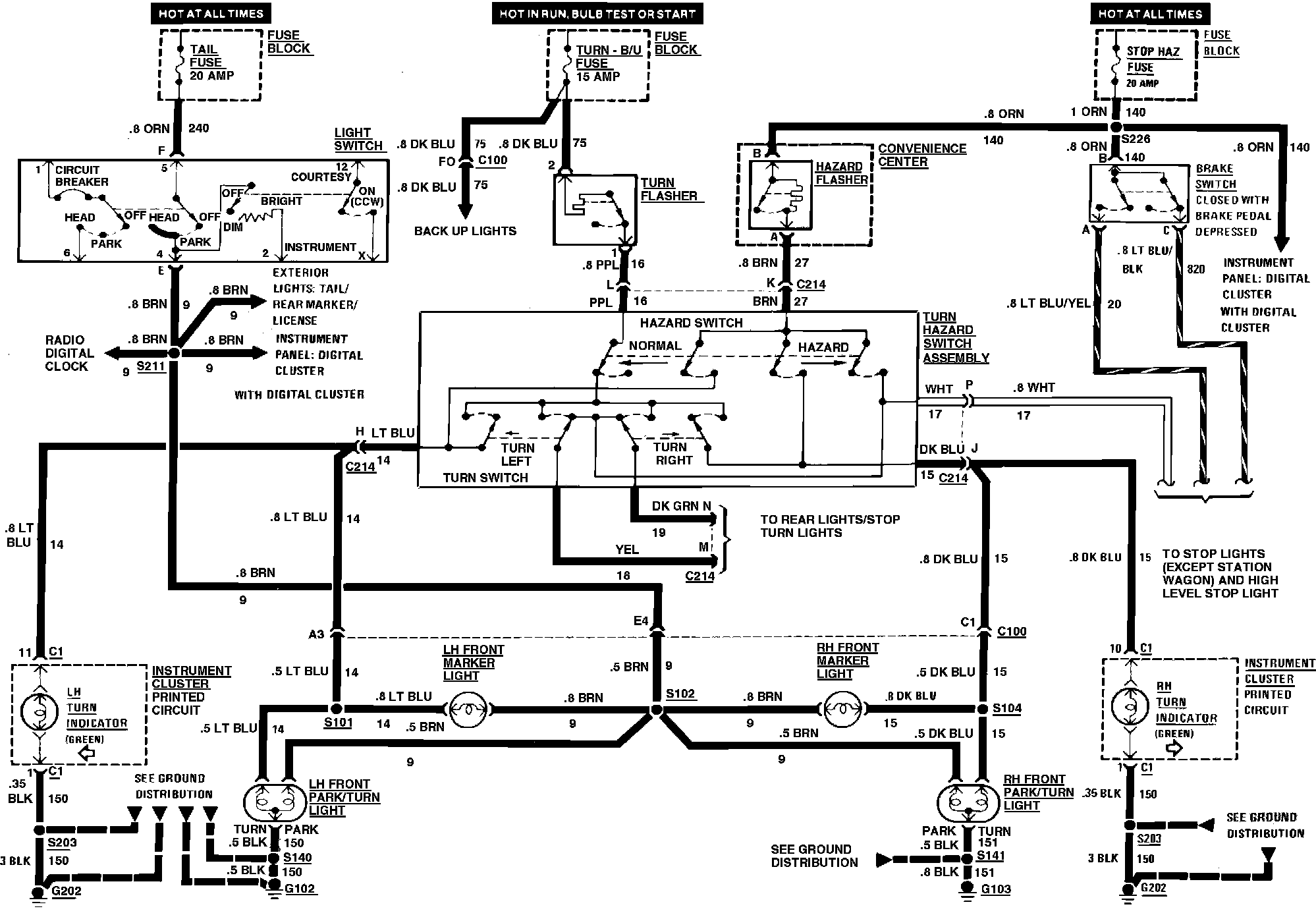

Exterior Lamp Wiring Circuit (Front Marker, Hazard, Park, Turn & Stop Lamp, Part 1 Of 2):

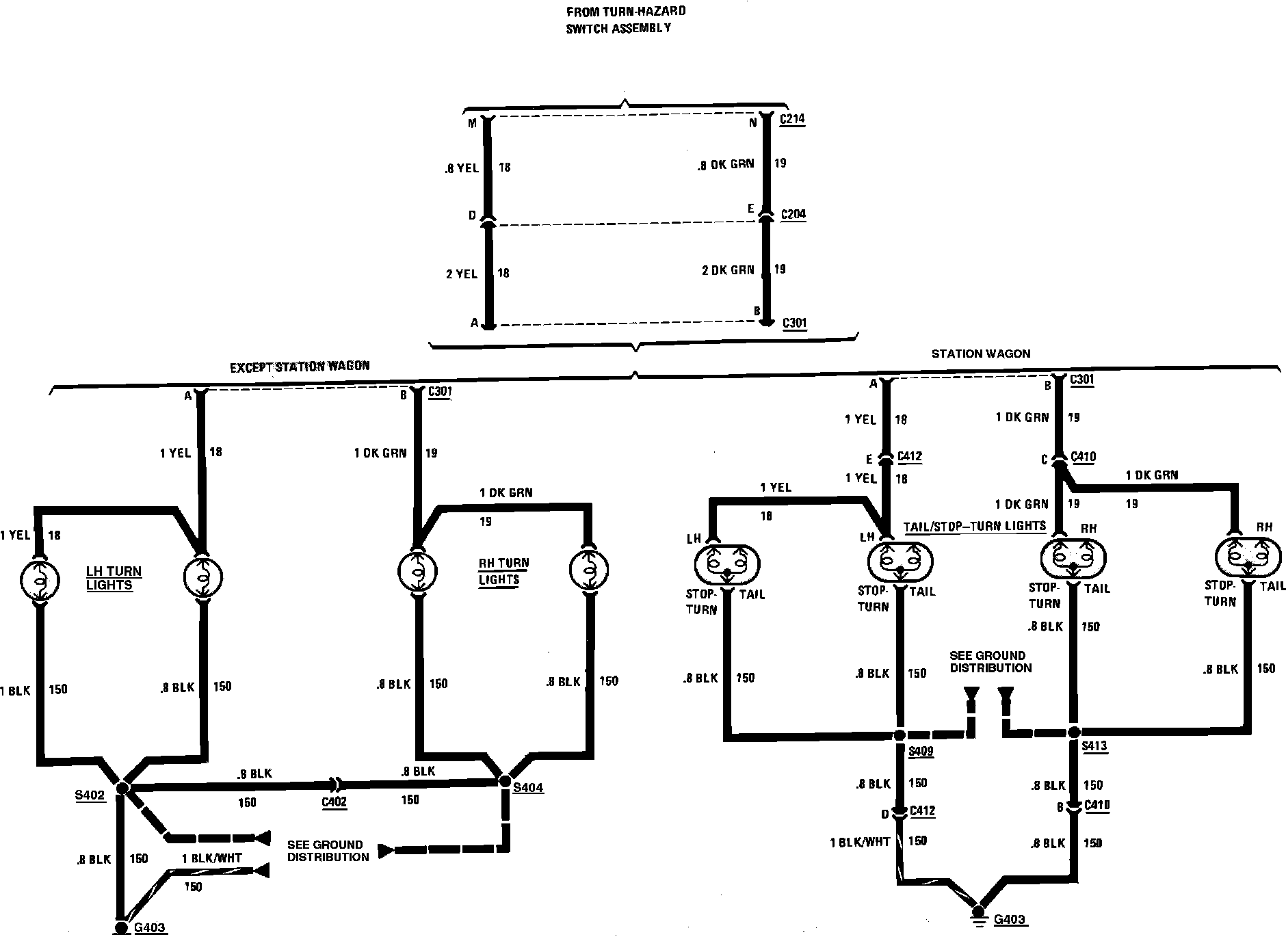

Exterior Lamp Wiring Circuit (Front Marker, Hazard, Park, Turn & Stop Lamp, Part 2 Of 2):
