Digital Cluster

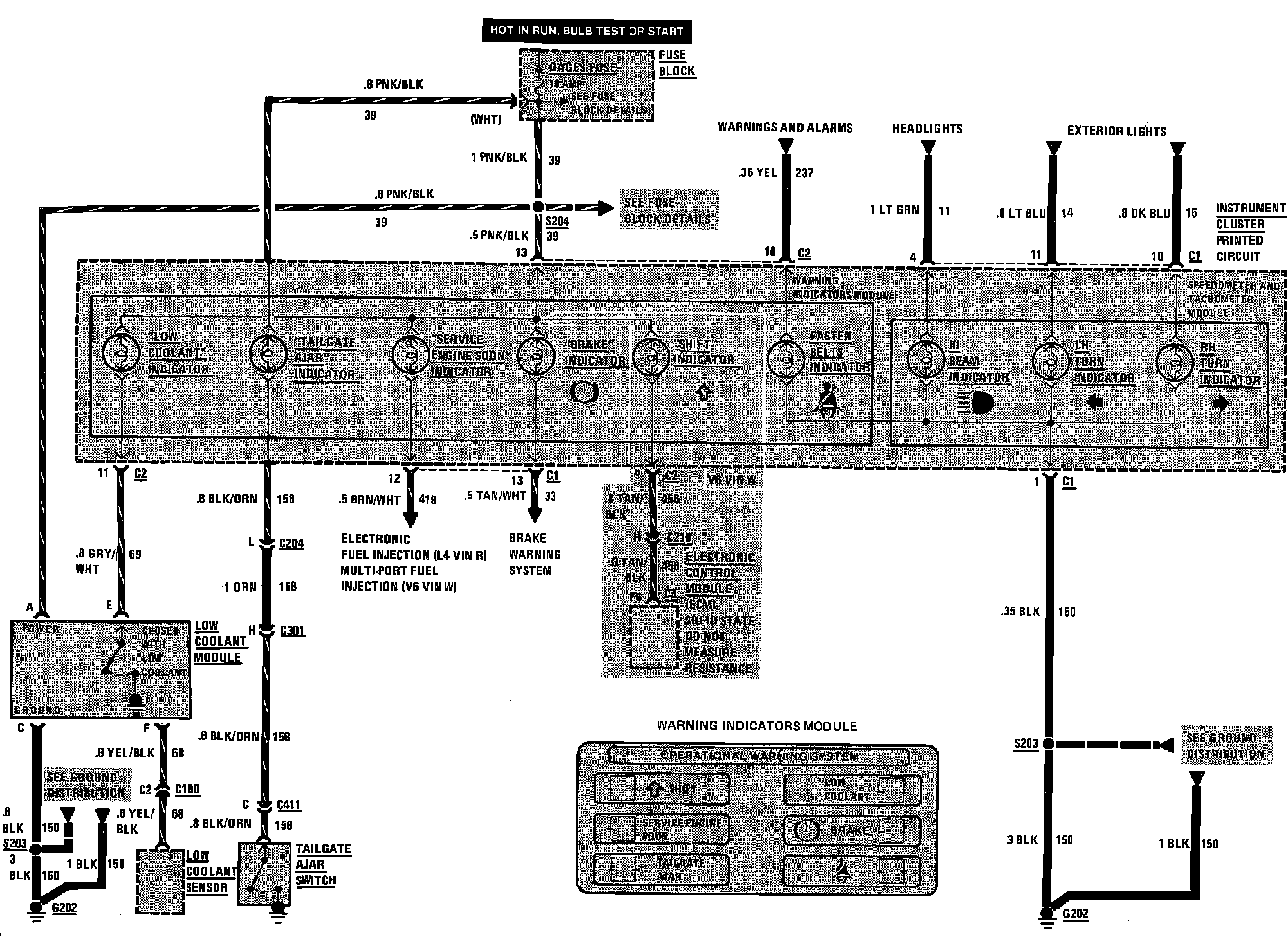

Instrument Panel Wiring Circuit (Digital Cluster). (Part 3 of 3):

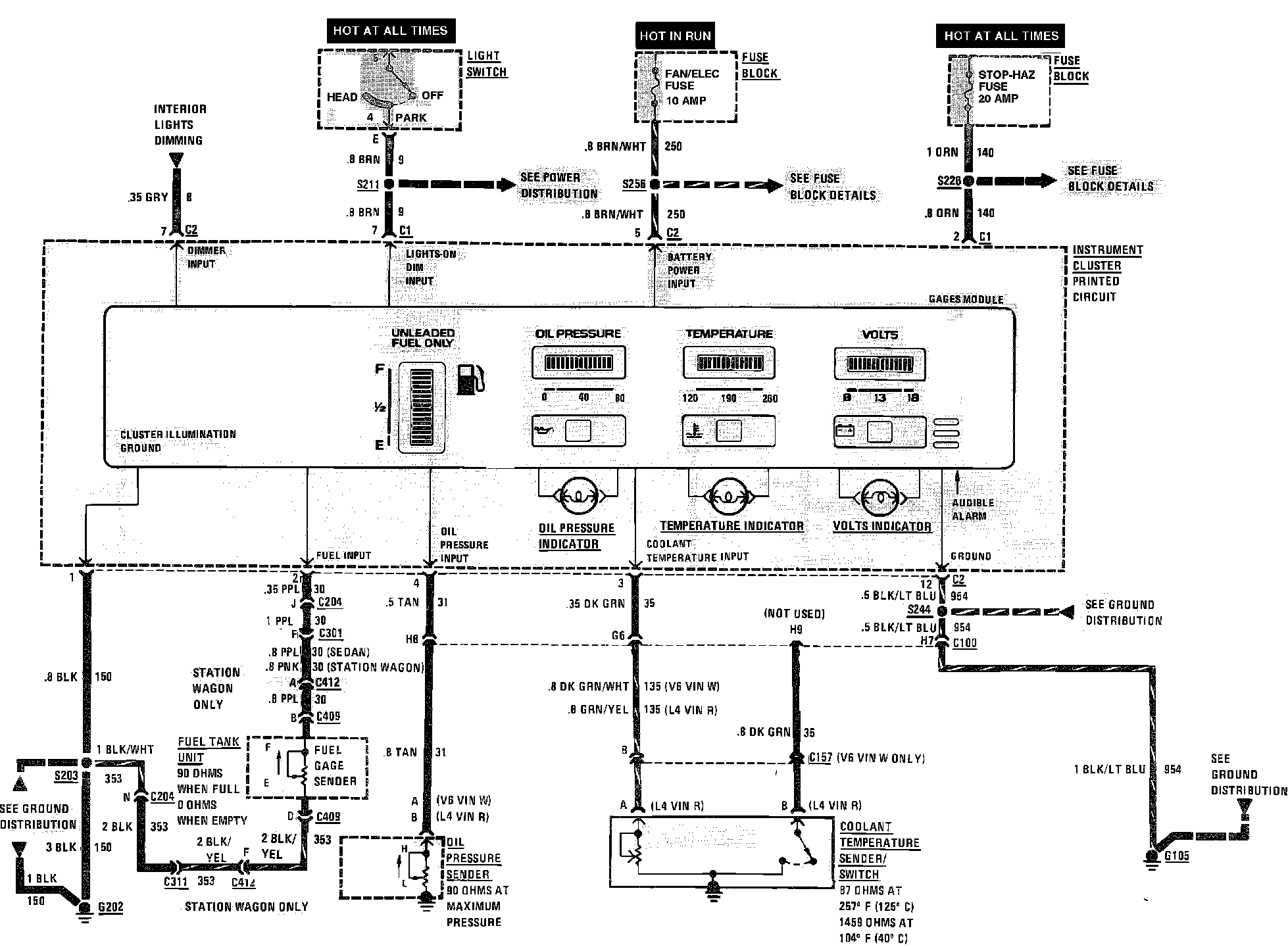

Instrument Panel Wiring Circuit (Digital Cluster). (Part 1 of 3):

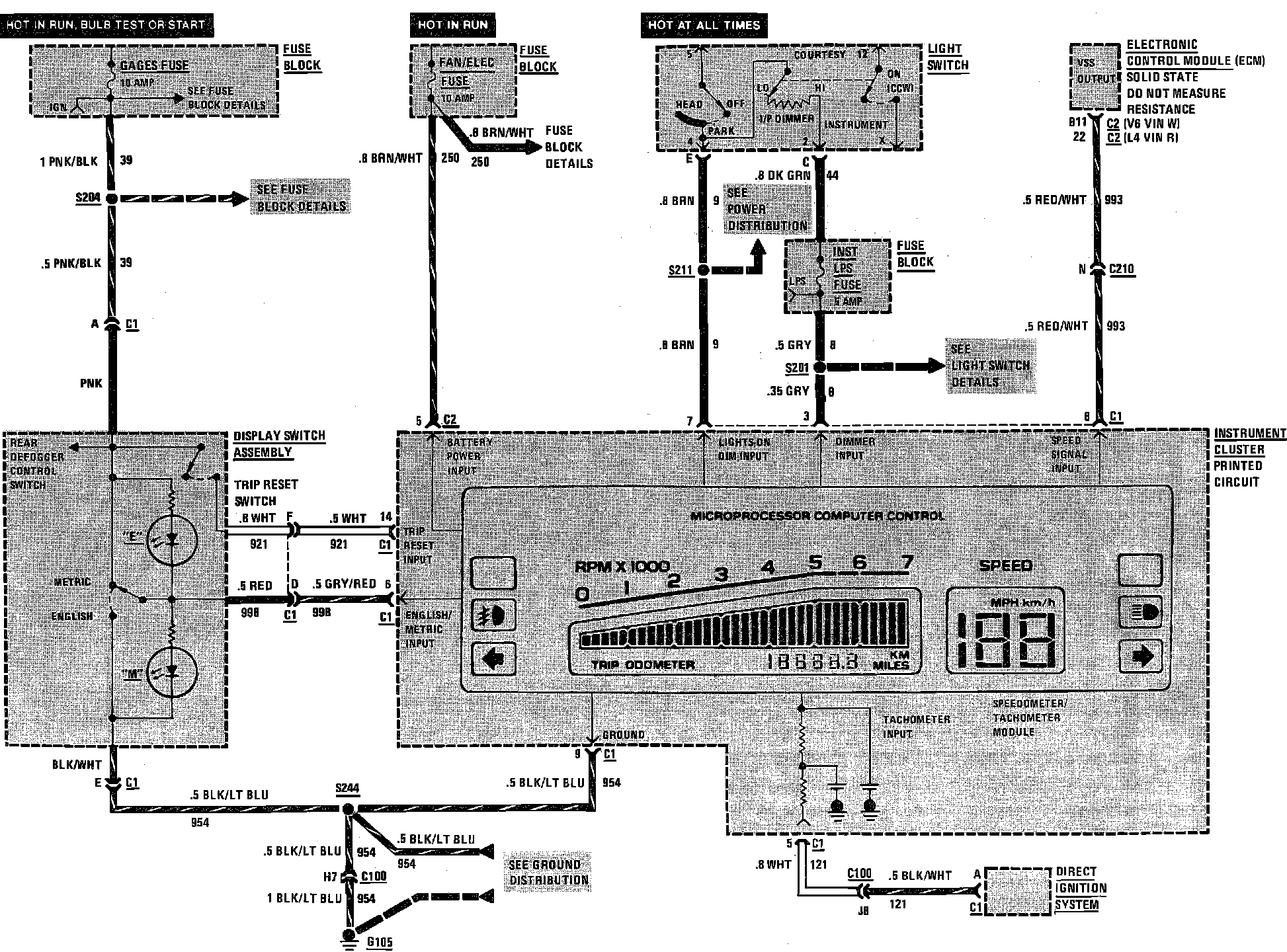

Instrument Panel Wiring Circuit (Digital Cluster). (Part 2 of 3):
