Chart C Symptom Diagnosis Chart - "Brake" Lamp on (Part 1 of 3)
Chart C Symptom Diagnosis Chart - "Brake" Lamp on (Part 1 of 3)

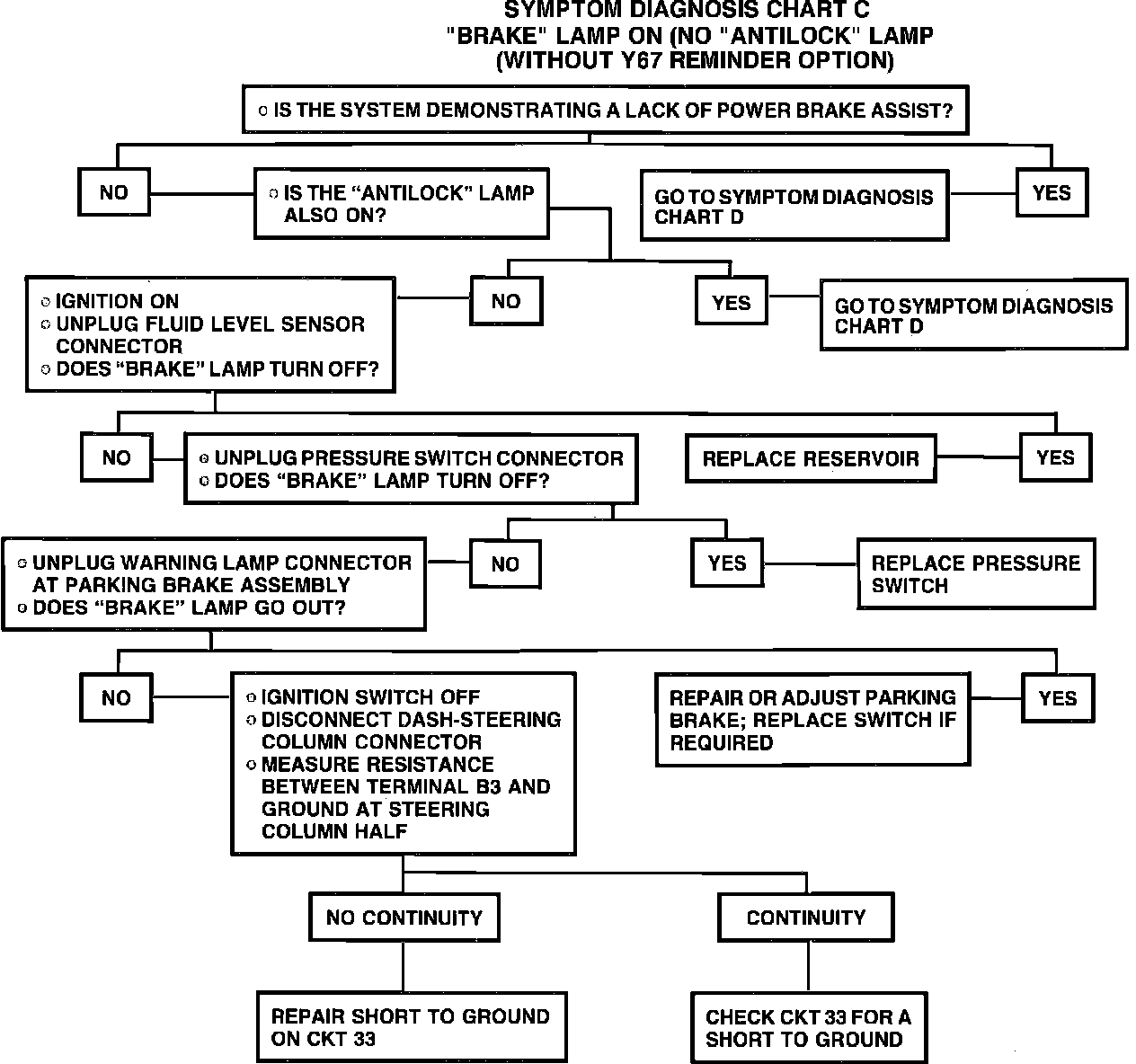

Fig. 1 Chart C Symptom Diagnosis Chart (1 of 3):
