Engine Mount: Service and Repair

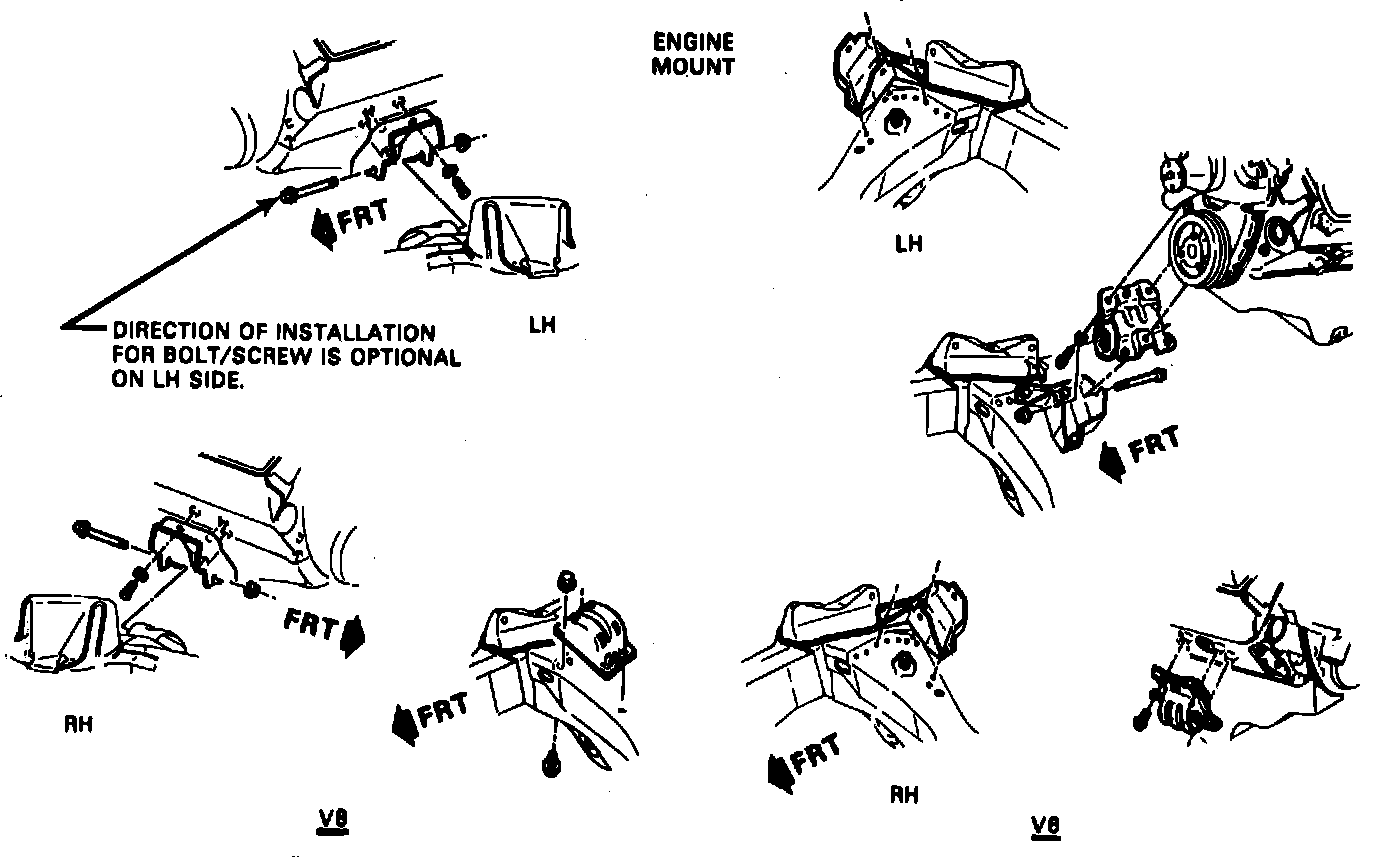

Fig. 1 Engine mounts. V6-229, 262 & V8 engines exc. Corvette:

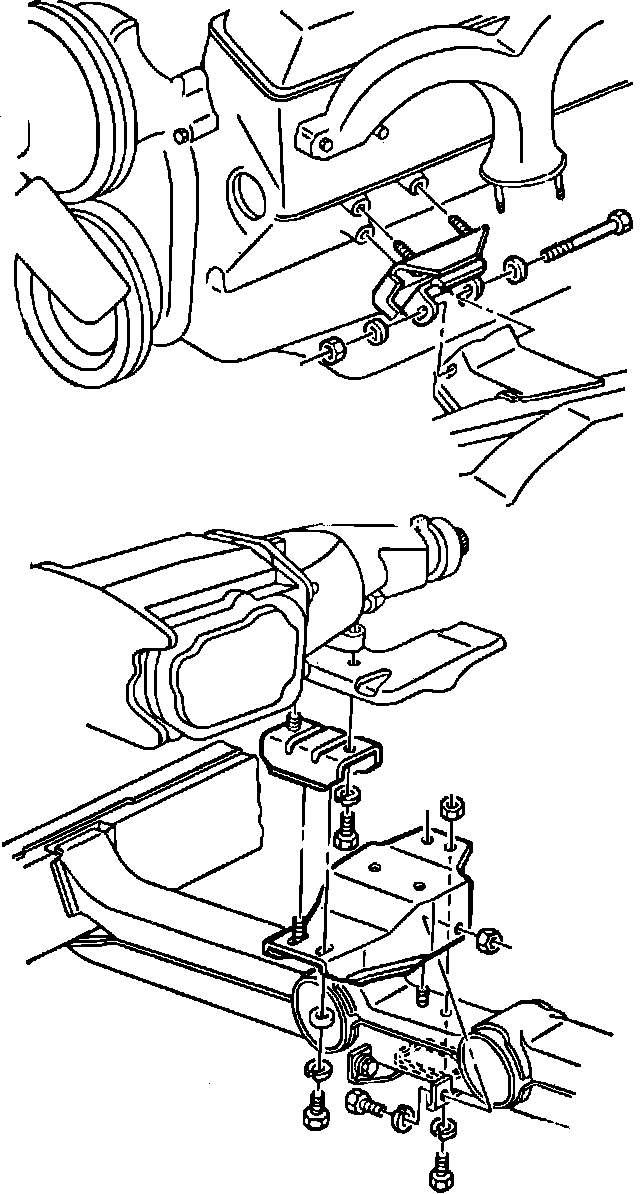

Fig. 2 Engine mounts. 1982 Corvette:

V6-229, 262 & ALL V-8 ENGINES EXC. 1984-88 CORVETTE

1. Remove mount retaining bolt from below frame mounting bracket.
2. Raise front of engine and remove mount to engine bolts and mount. On models equipped with V6 engines, the righthand mount may be removed by loosening the through bolt. Raise engine only enough to provide sufficient clearance for mount removal. Check for interference between rear of engine and cowl panel which could result in distributor damage.
3. Reverse procedure to install.
