Home >> Pontiac >> 1987 >> Firebird V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Heating and Air Conditioning

Heating and Air Conditioning

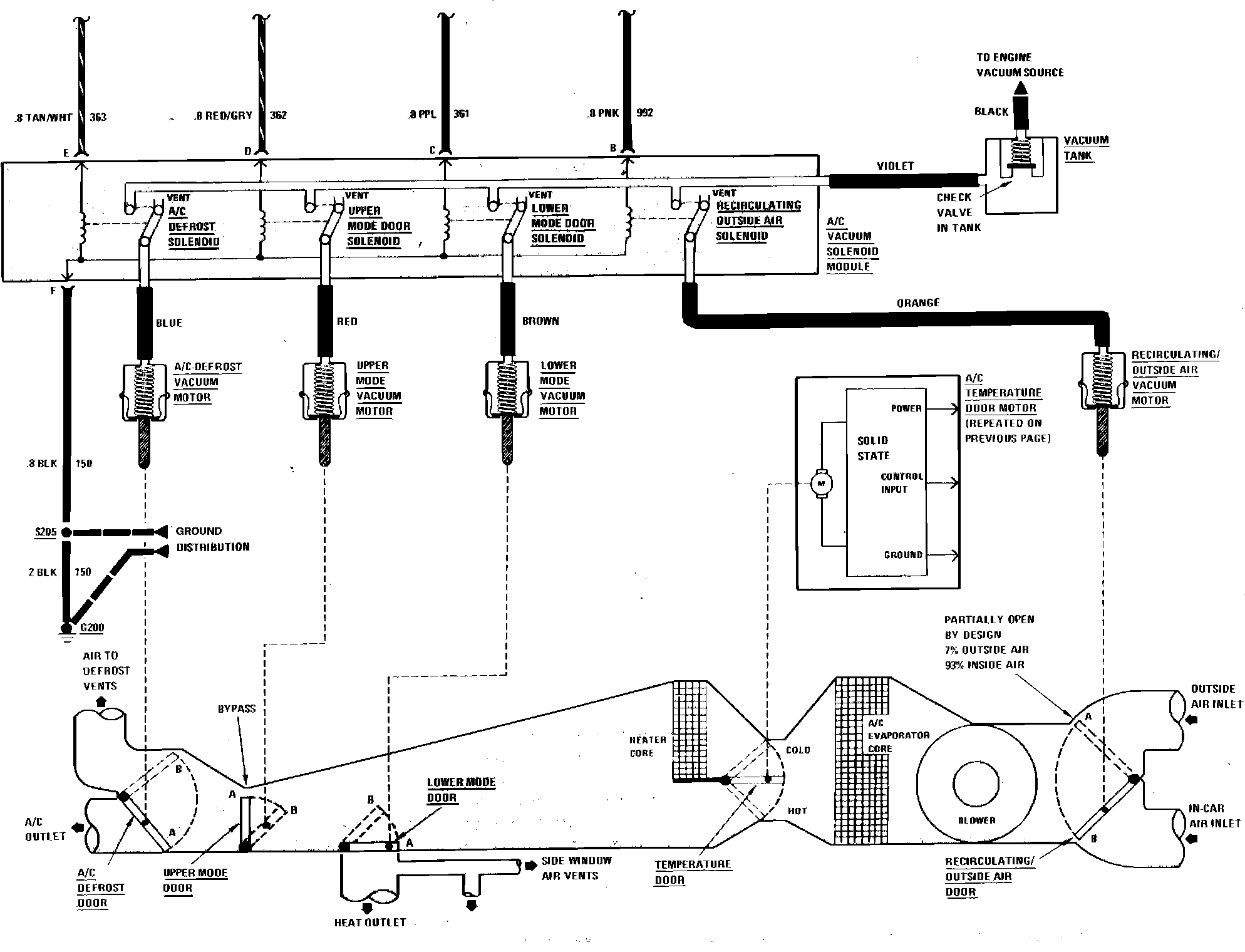

Air Conditioning Air Delivery Circuit:
