G112 & G118 (Part 2 of 2) VIN F & VIN 8
G112 & G118 (Part 2 of 2) VIN F & VIN 8

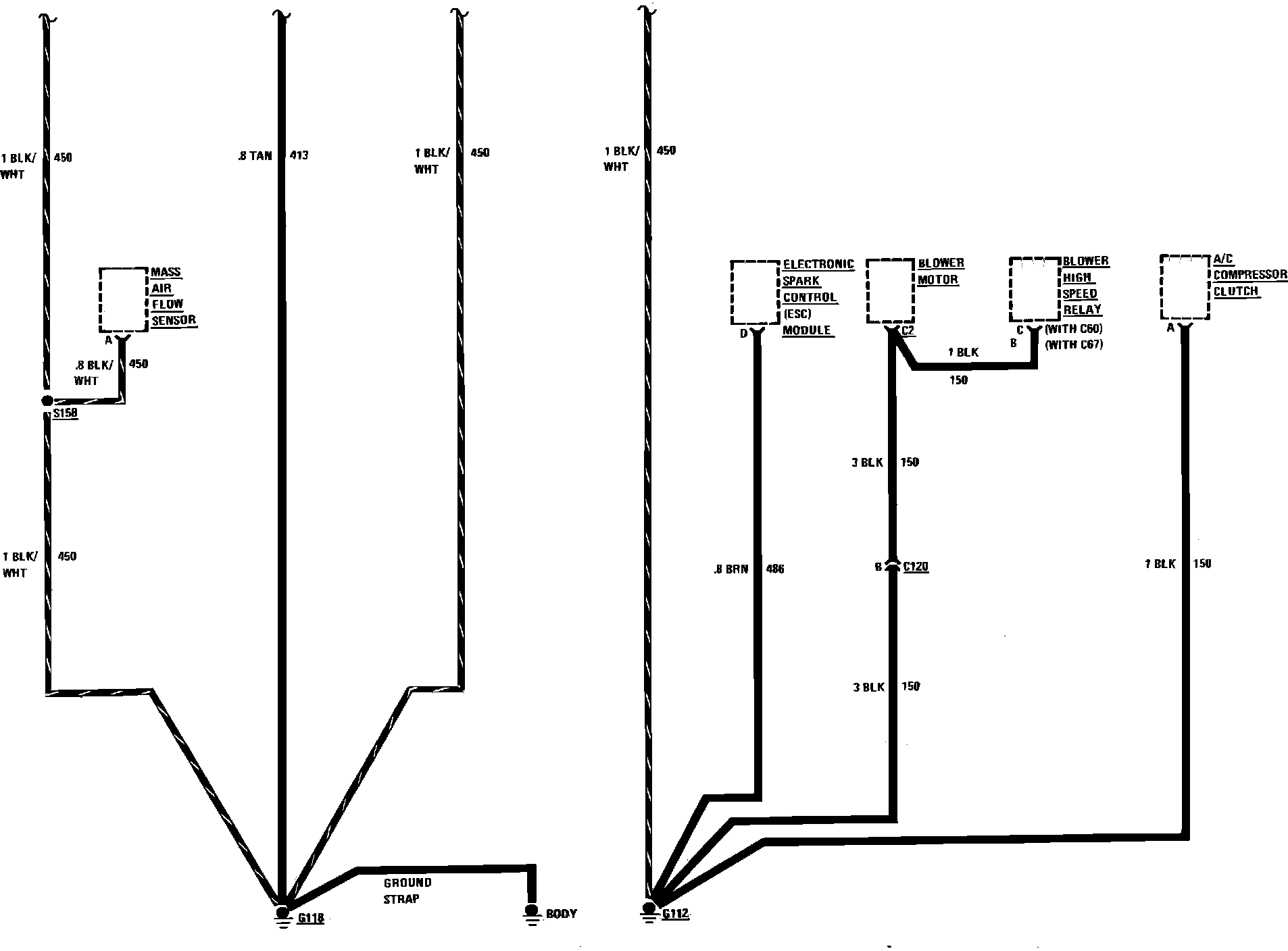

Ground Distribution (G112 & G118). W/V8-305/5.0L (VIN F) & V8-350/5.7L (VIN 8):
