INJ1 Fuse & INJ2 Fuse (VIN F & VIN 8)
INJ1 Fuse & INJ2 Fuse (VIN F & VIN 8)

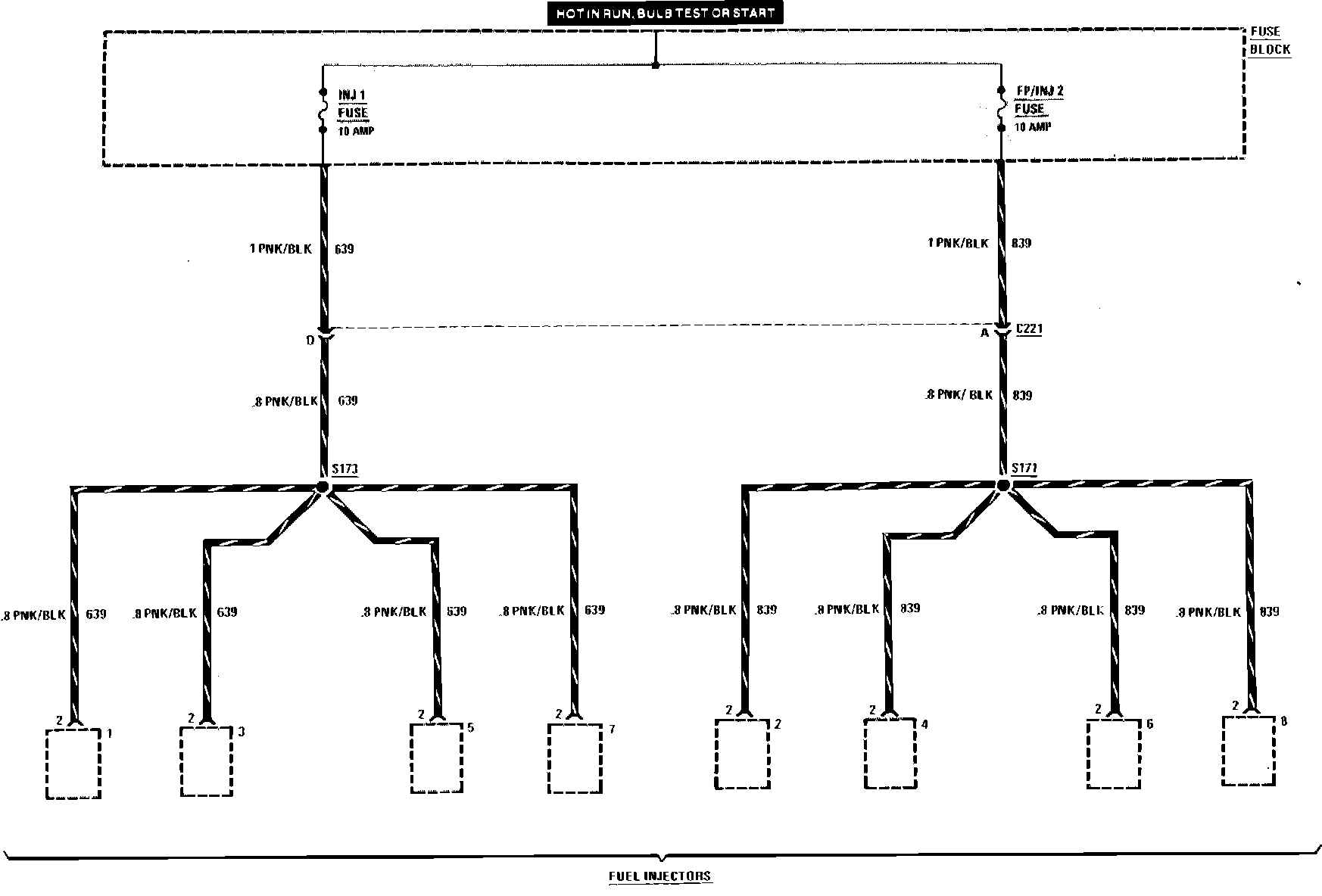

Fuse Block Details (INJ1 Fuse & INJ2 Fuse). W/V8-305/5.0L (VIN F) & V8-350/5.7L (VIN 8):
