Dimming, Less Digital Cluster (Part 2 of 2)

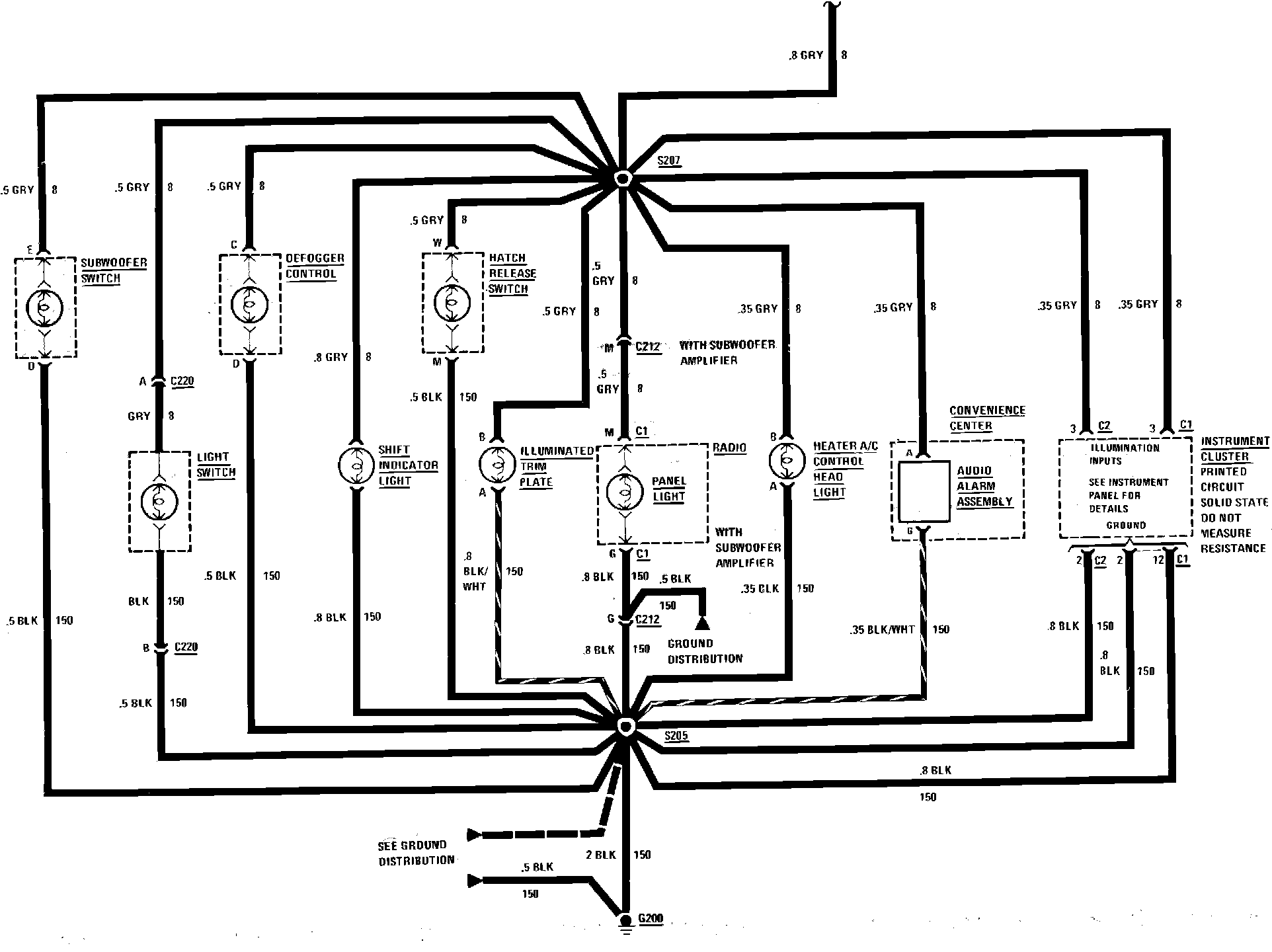

Interior Lamps Wiring Circuit. W/Dimming, Less Digital Cluster:
