Headlamp
>>
System Diagram
>>
With Lamp Monitor & Fog Lamps
With Lamp Monitor & Fog Lamps

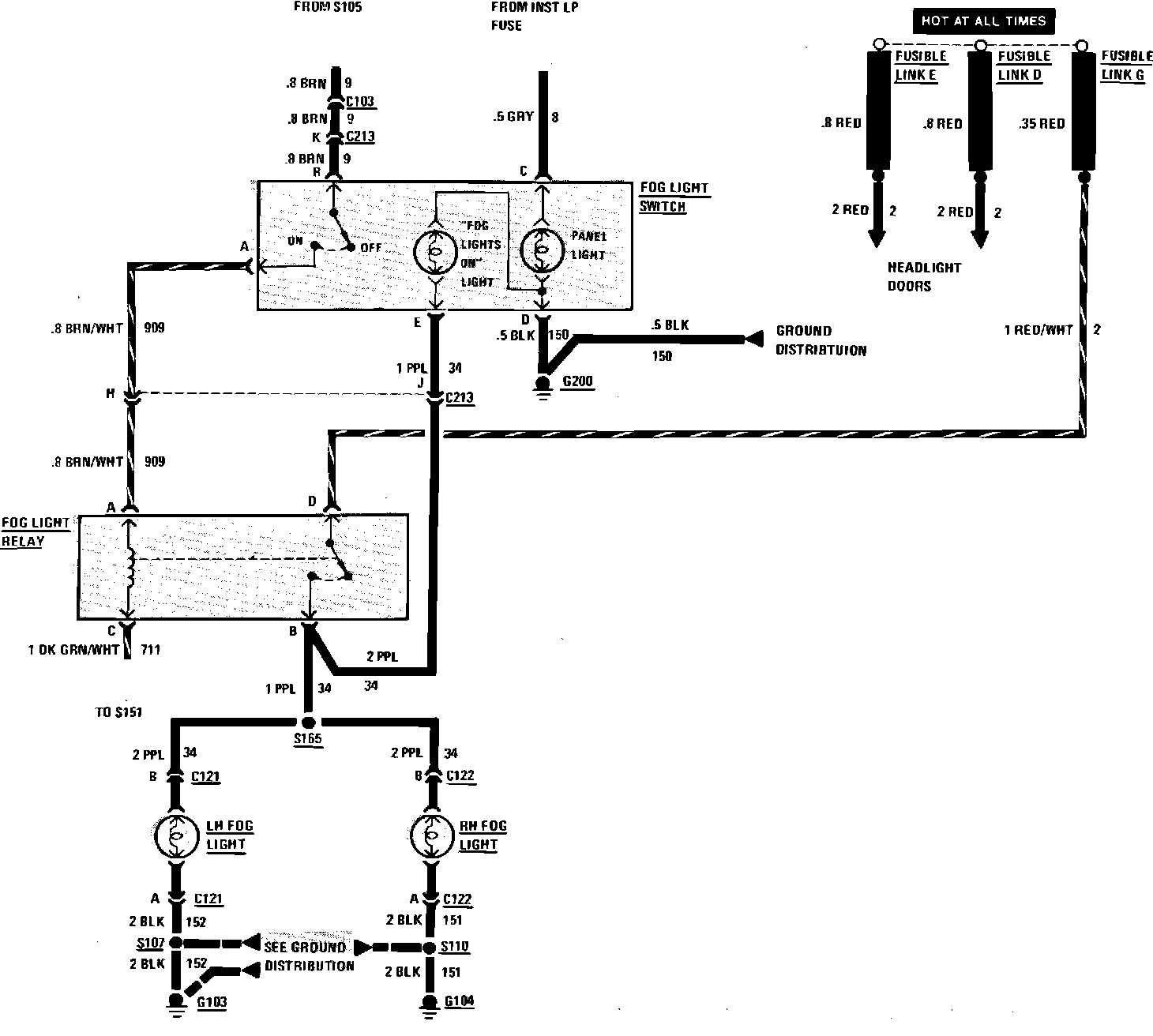

Headlamp Wiring Circuit W/Lamp Monitor & Fog Lamps:

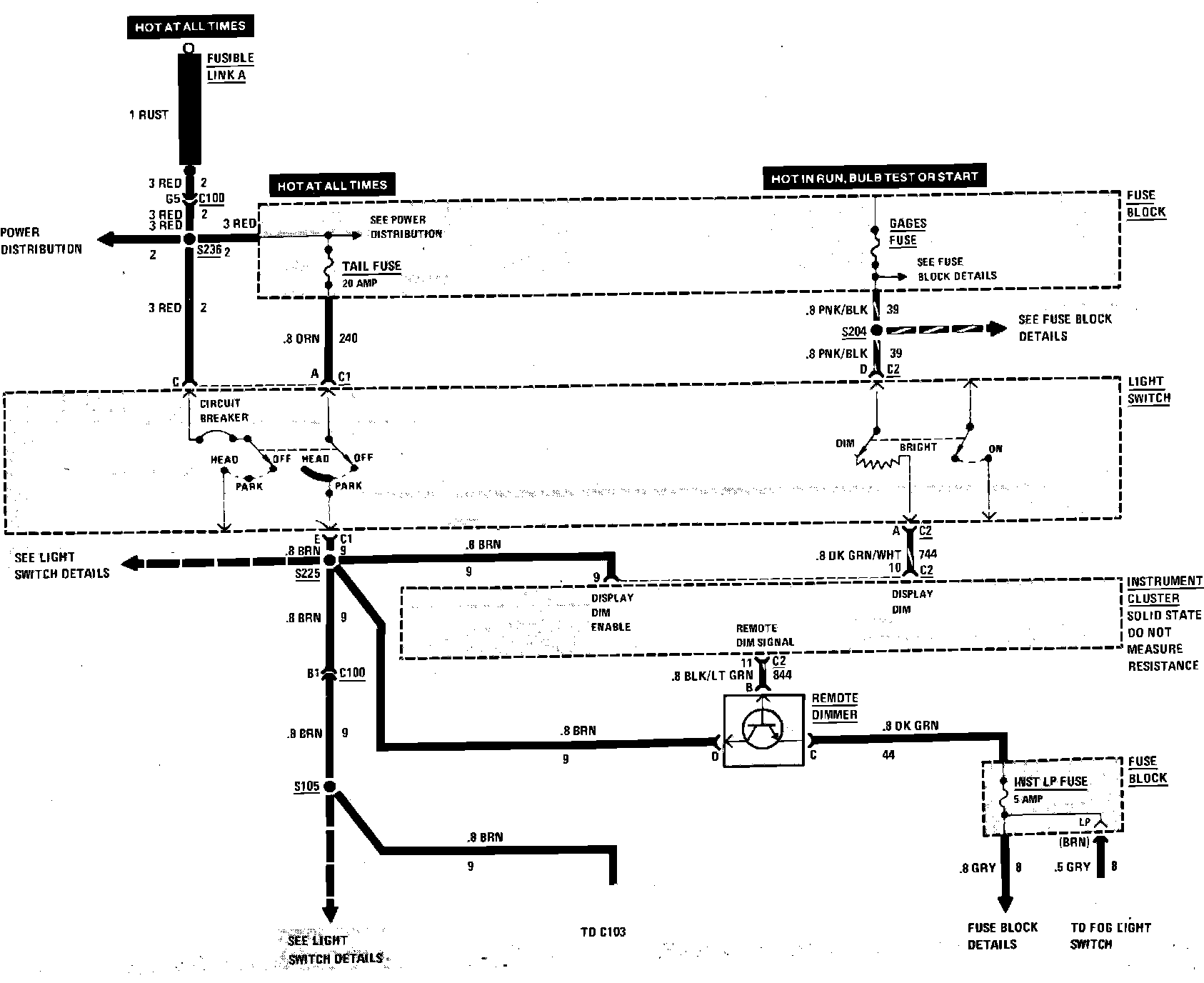

Headlamp Wiring Circuit W/Lamp Monitor & Fog Lamps:
