W/Digital Cluster Trans AM (Part 1 of 3)
W/Digital Cluster Trans AM (Part 1 of 3)

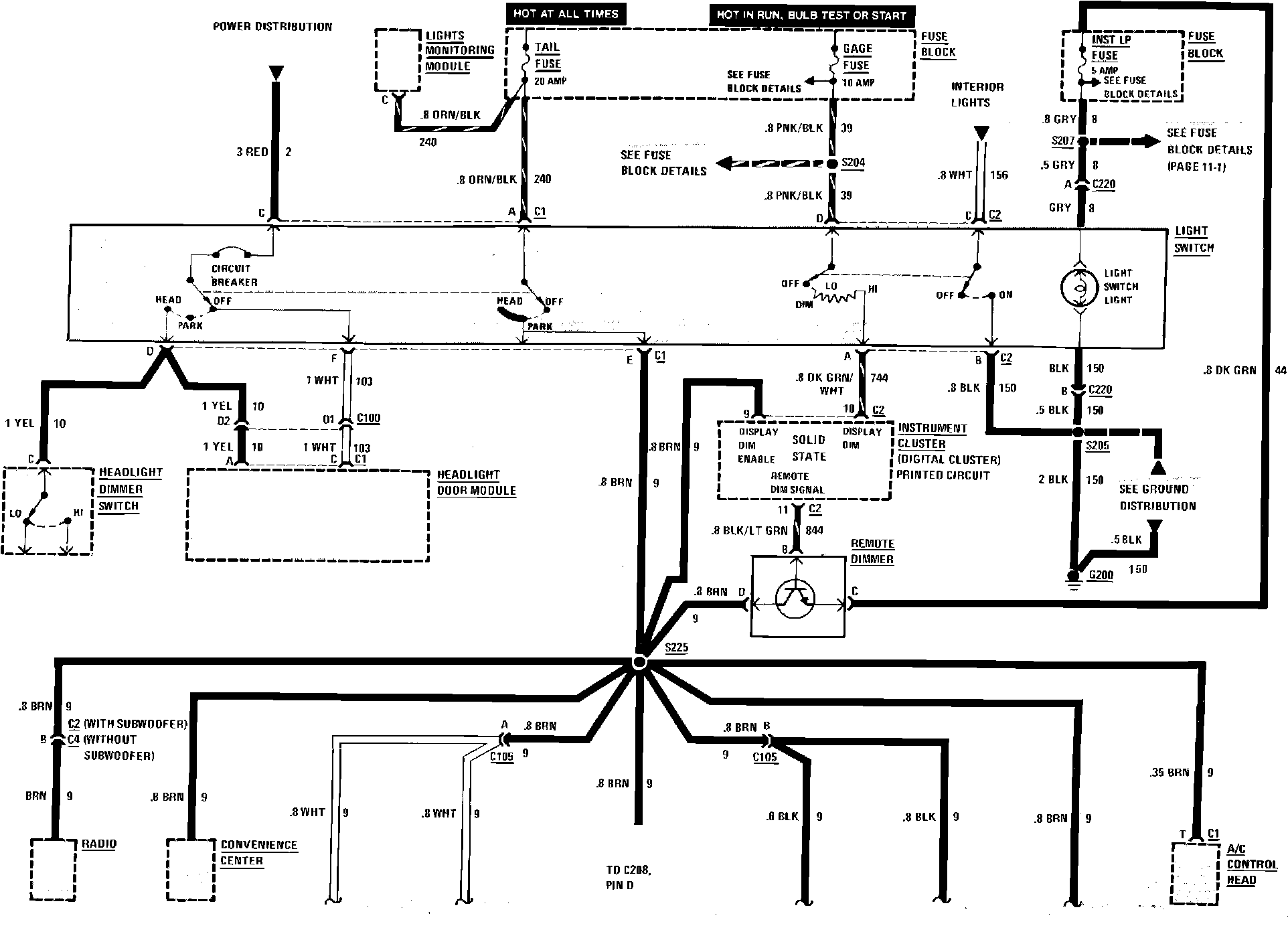

Light Switch Wiring Circuit W/Digital Cluster:
