Home >> Pontiac >> 1987 >> Firebird V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Less Digital Cluster

Less Digital Cluster

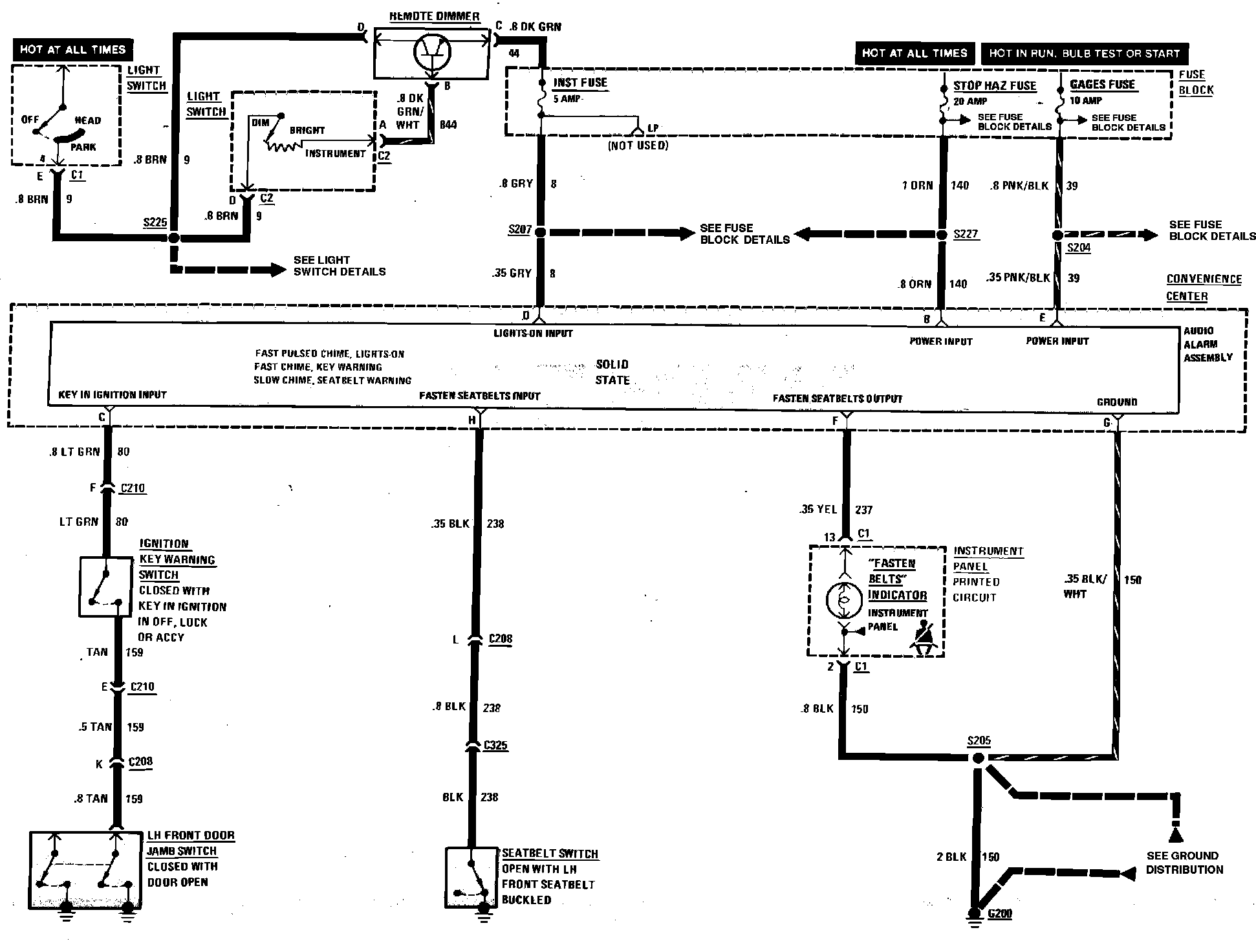

Warning Alarms & Chime Wiring Circuit. Less Digital Cluster:
