Pontiac
>>
1987
>>
Firebird V8-350 5.7L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Diagrams
>>
Electrical Diagrams
>>
W/Automatic Mirror
W/Automatic Mirror

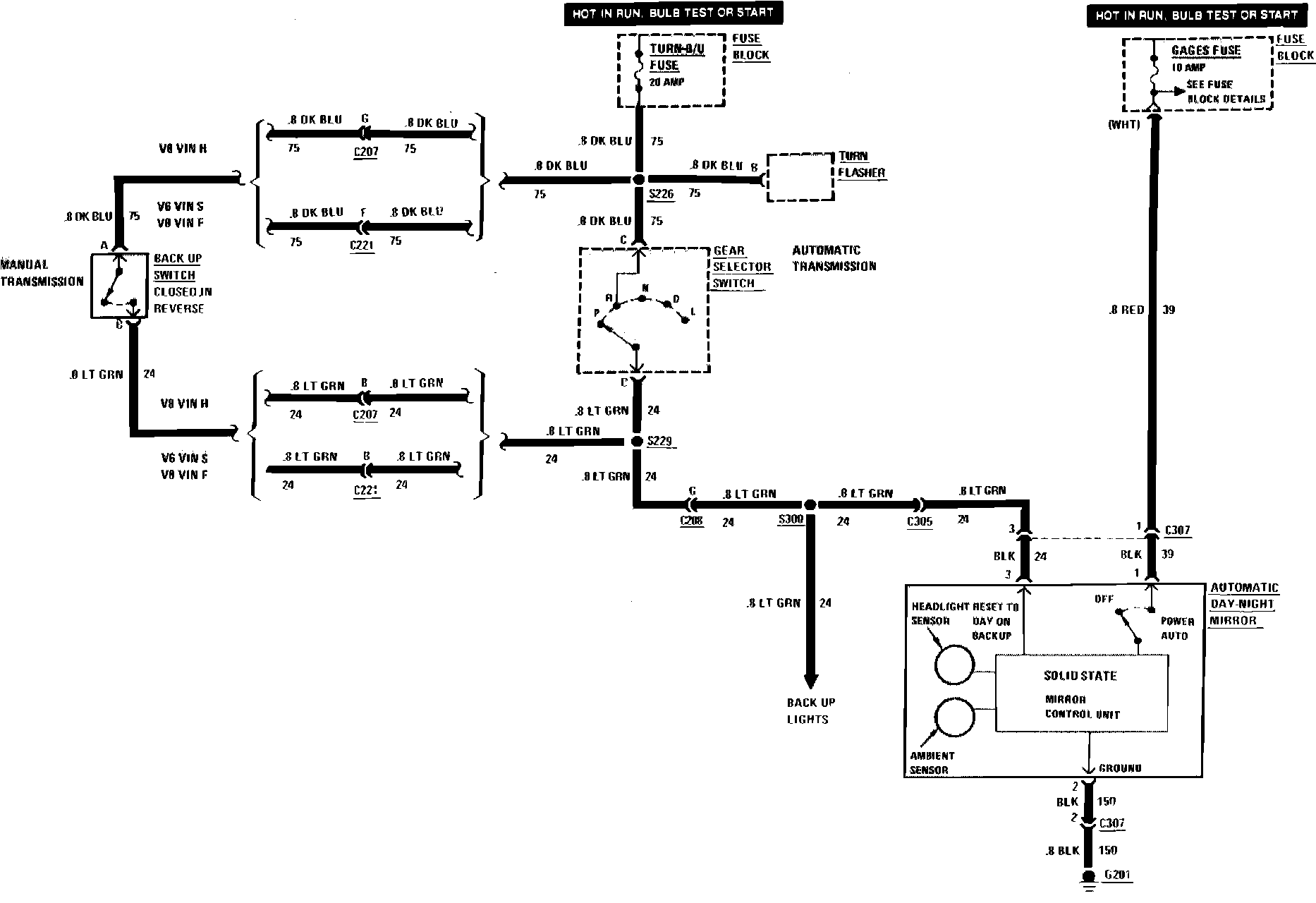

Power Mirror Wiring Circuit W/Automatic Mirror:
