With Subwoofer Amplifier

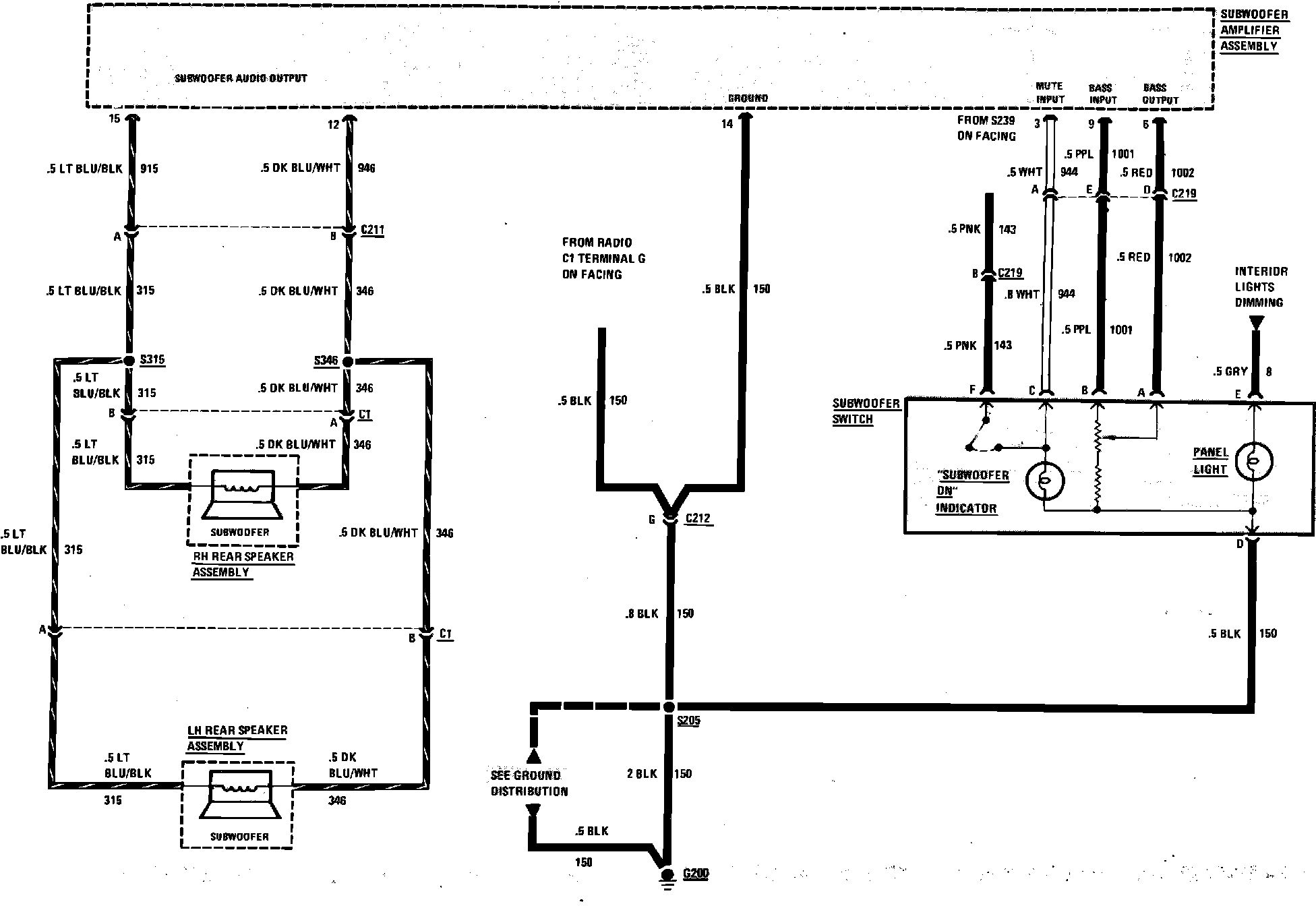

Radio Wiring Circuit W/Subwoofer Amplifier:

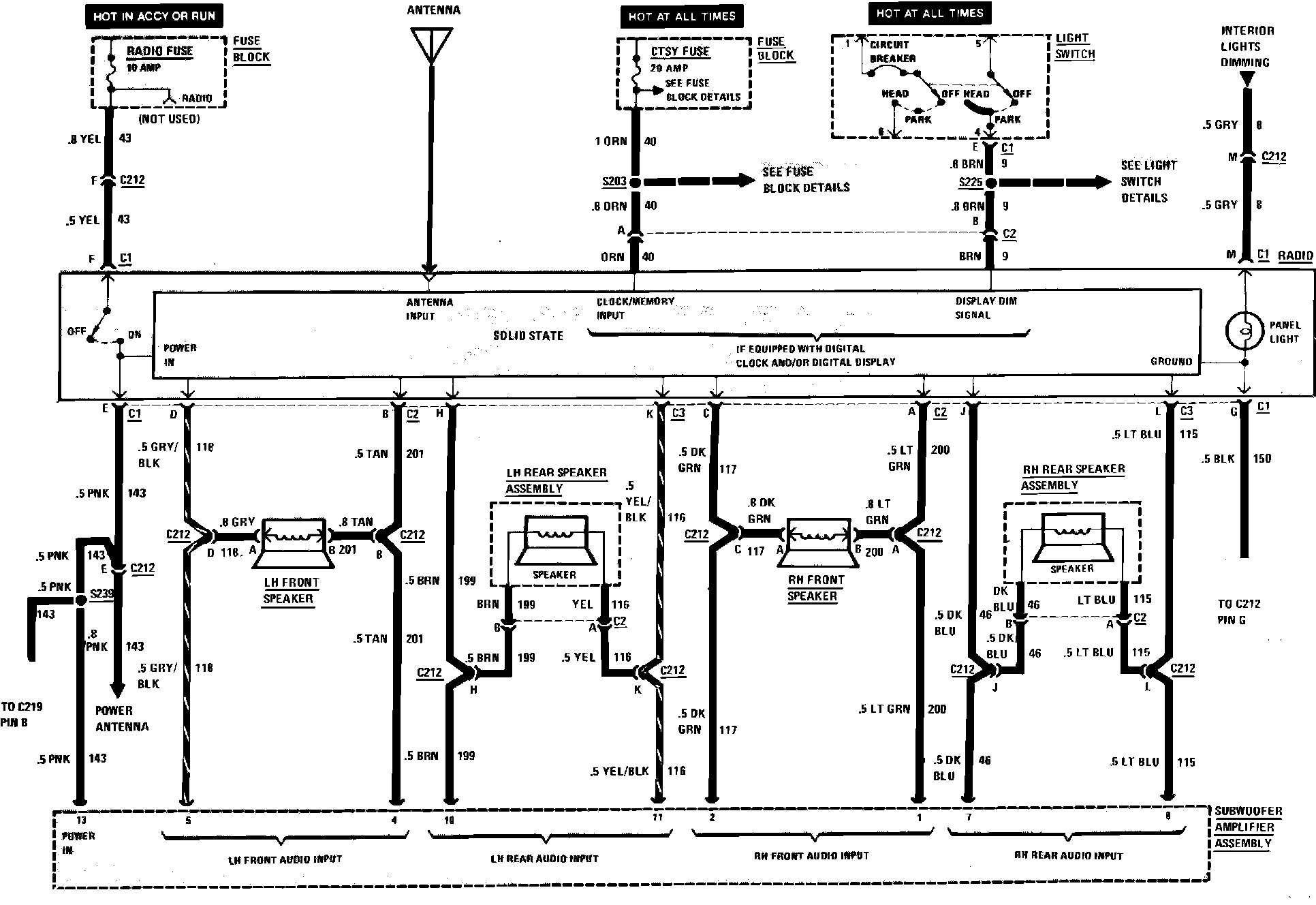

Radio Wiring Circuit W/Subwoofer Amplifier:
