Home >> Pontiac >> 1987 >> Firebird V8-350 5.7L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Diagrams >> Electrical Diagrams >> Less Subwoofer Amplifier

Less Subwoofer Amplifier

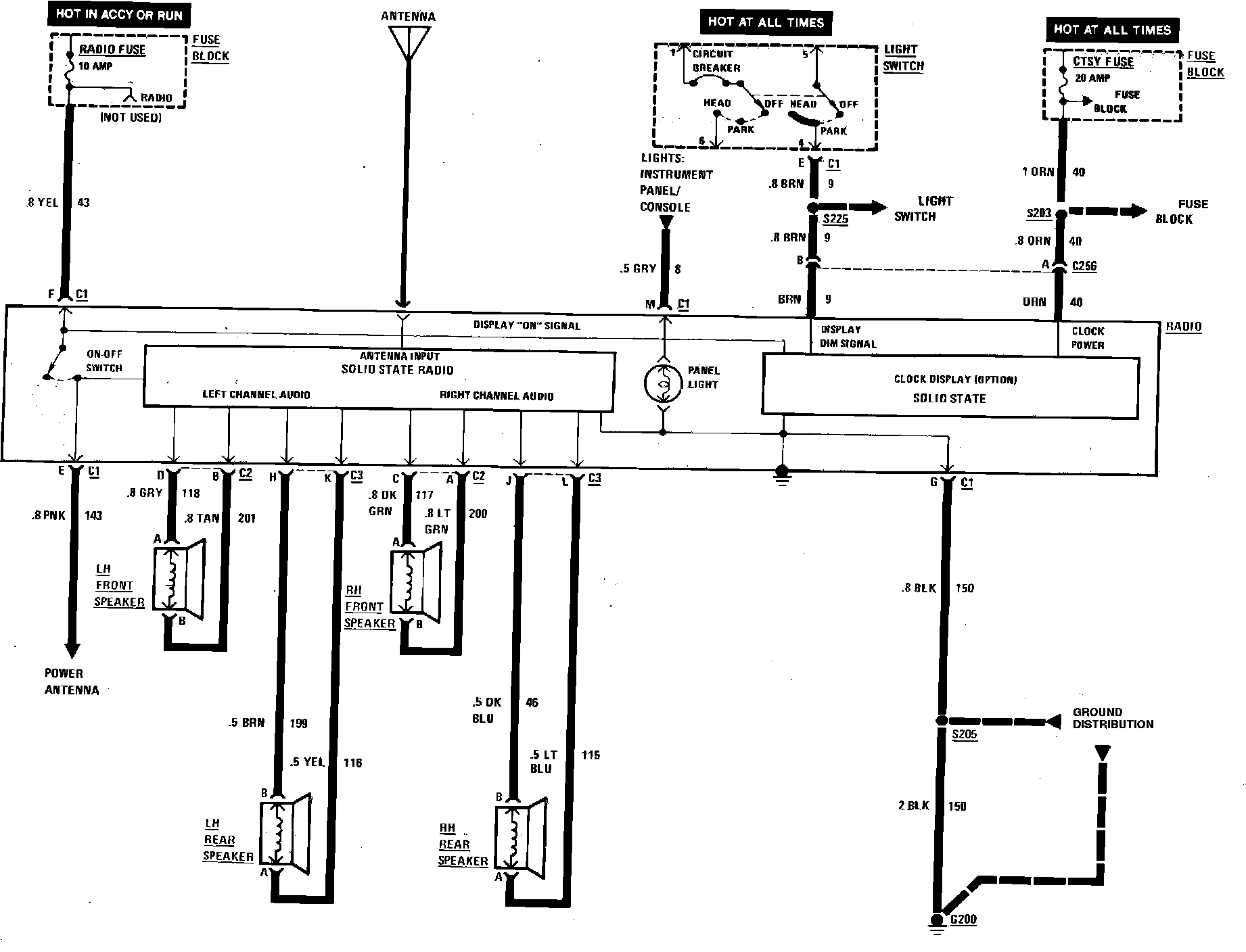

Radio Wiring Circuit. Less Subwoofer Amplifier:
