Transaxle Case & Clutch Housing Separation

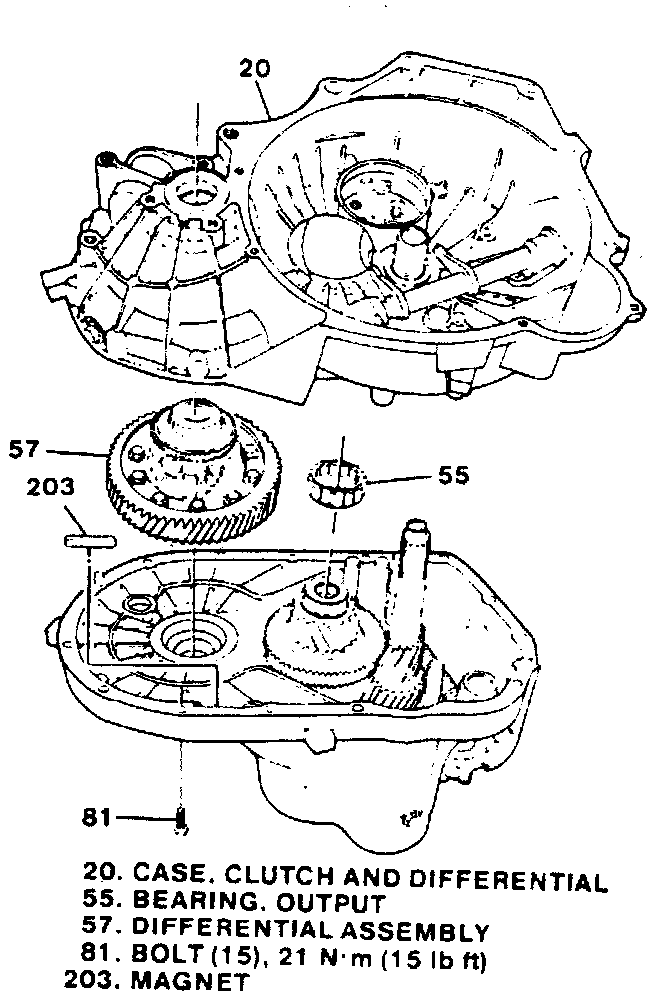

1. Refer to accompanying image, and proceed as follows:

a. Ensure transaxle is in Neutral, then remove attaching bolts (81) and clutch housing (20).

b. Remove differential gear assembly (57).

c. Remove magnet (203) and bearing (55).
