Gear Clusters & Shift Rails

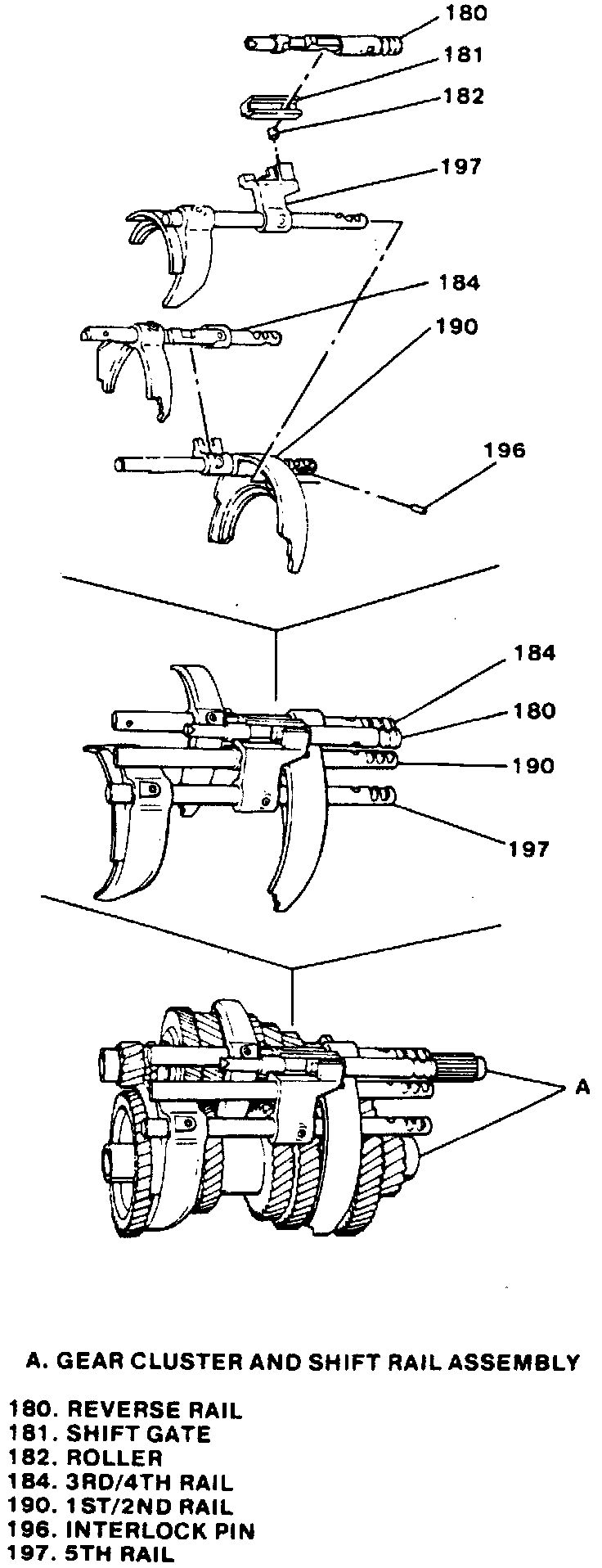

1. Refer to accompanying image, and proceed as follows:

a. Remove 1/2 shift rail assembly (190) and lock pin (196).

b. Remove 3/4 rail assembly (184).

c. Remove 5th rail assembly (197).

d. Remove reverse rail assembly (180), shift gate (181), then disengage roller (182).
