Chart C - C.C.O.T. System
Chart C - C.C.O.T. System

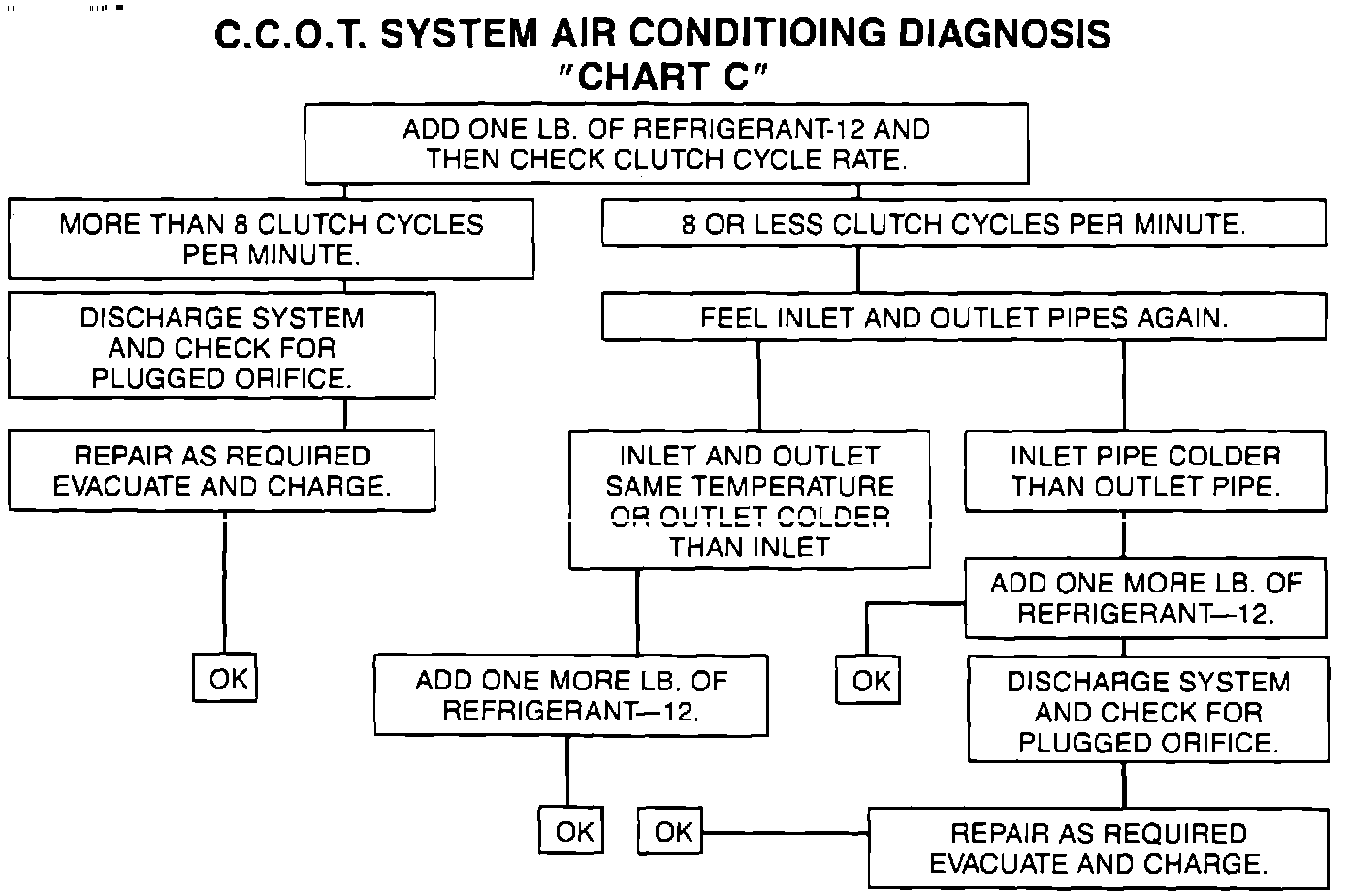

Fig. 21c A/C cooling system diagnosis (Part 3 of 5). Models w/CCOT system:
