Home >> Pontiac >> 1987 >> Fiero V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lamps >> Part 1 of 6

Part 1 of 6

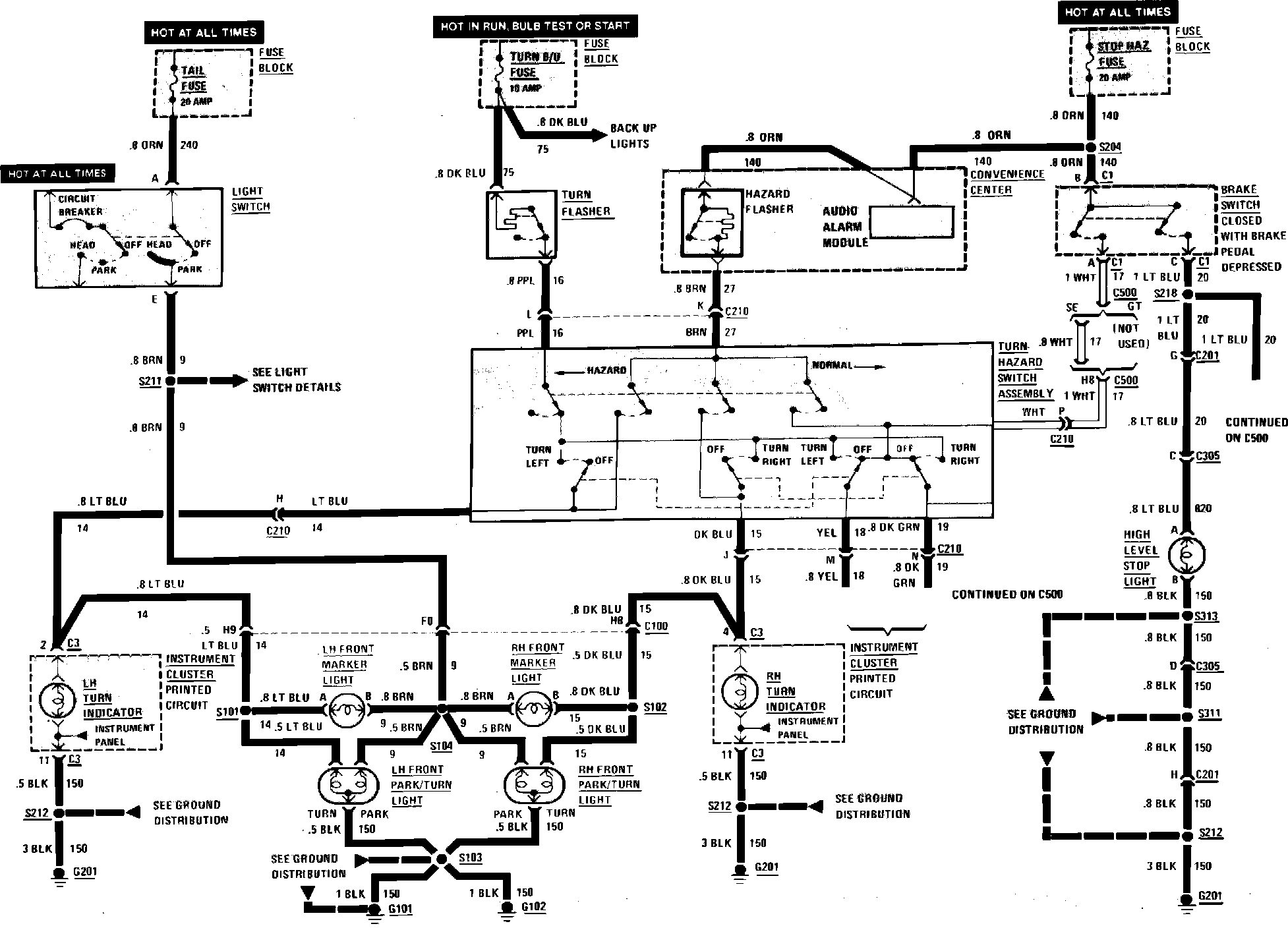

Exterior Lamps Wiring Circuit:
