Home >> Pontiac >> 1987 >> Fiero V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Headlamp Switch >> Part 1 of 2

Part 1 of 2

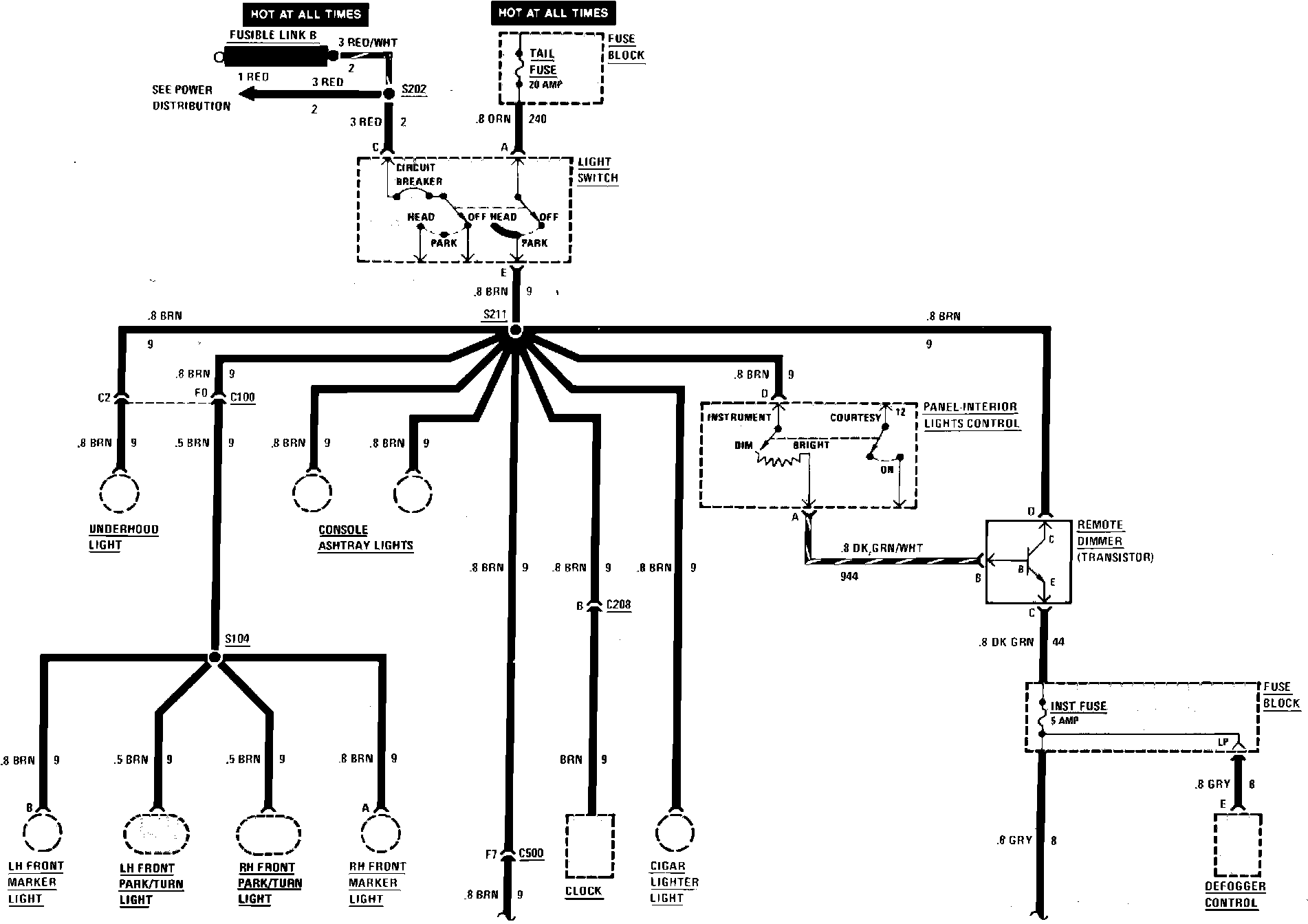

Light Switch Details Wiring Circuit:
