Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel
Instrument Panel

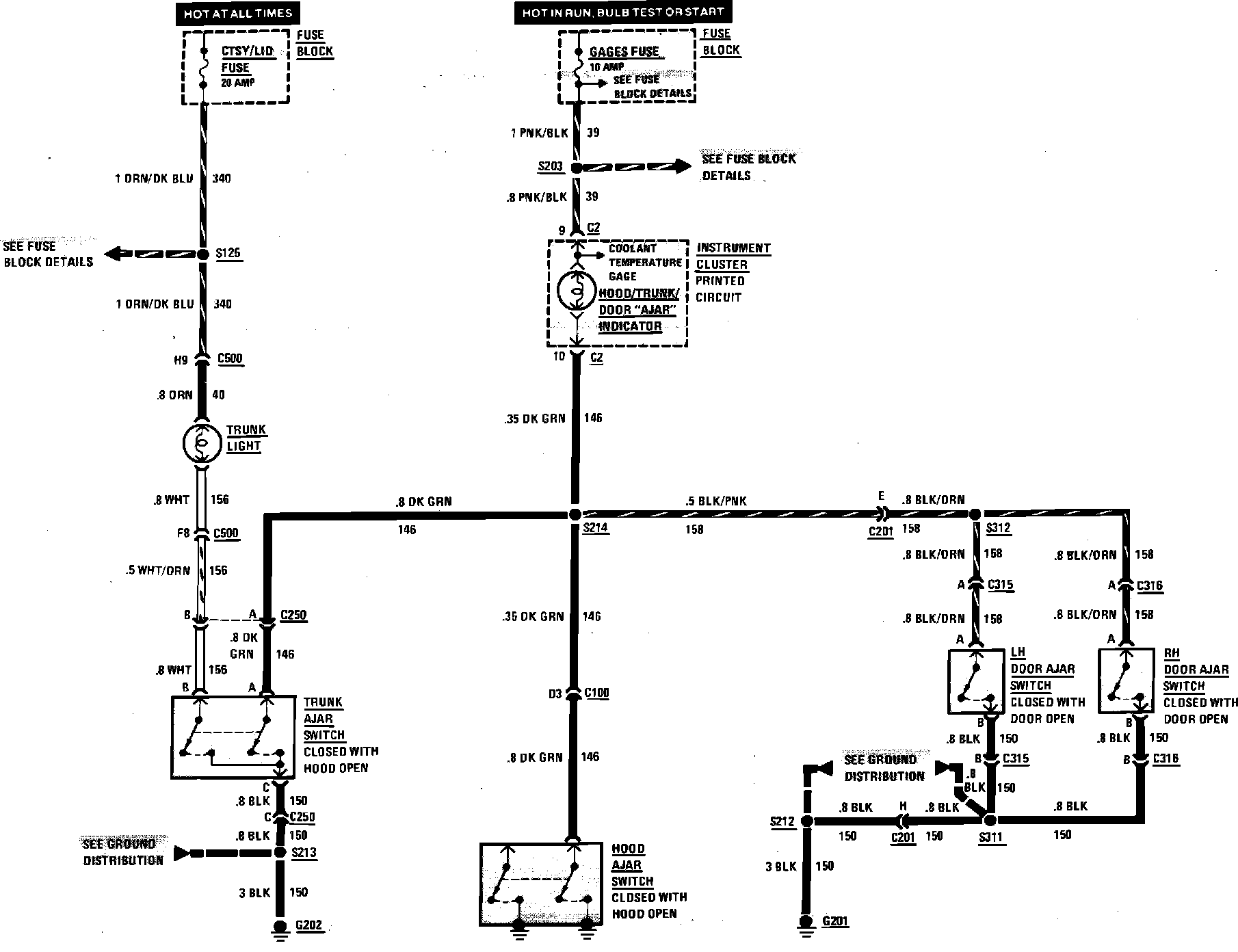

Indicators Cluster Wiring Circuit:

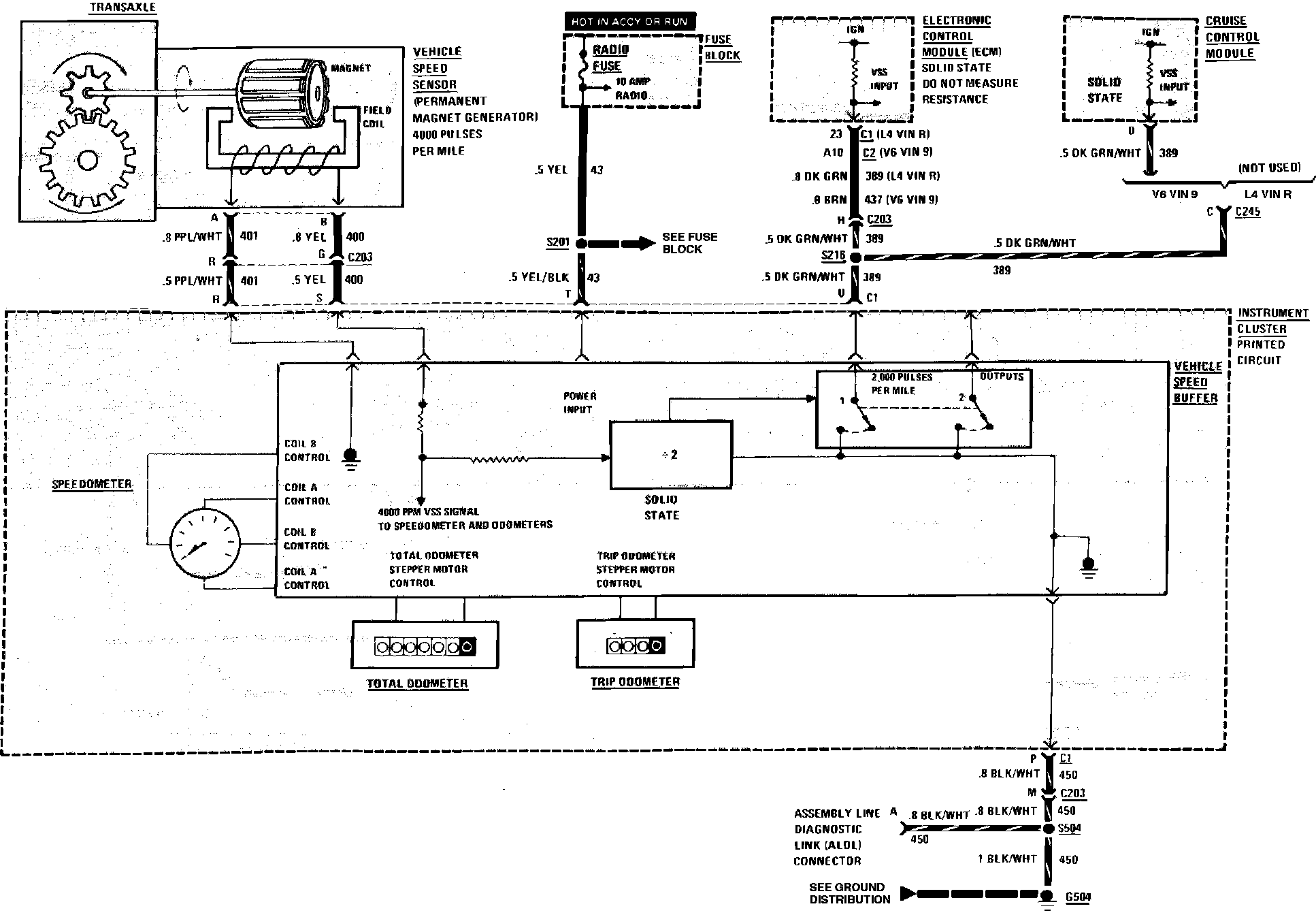

Indicators Cluster Wiring Circuit:

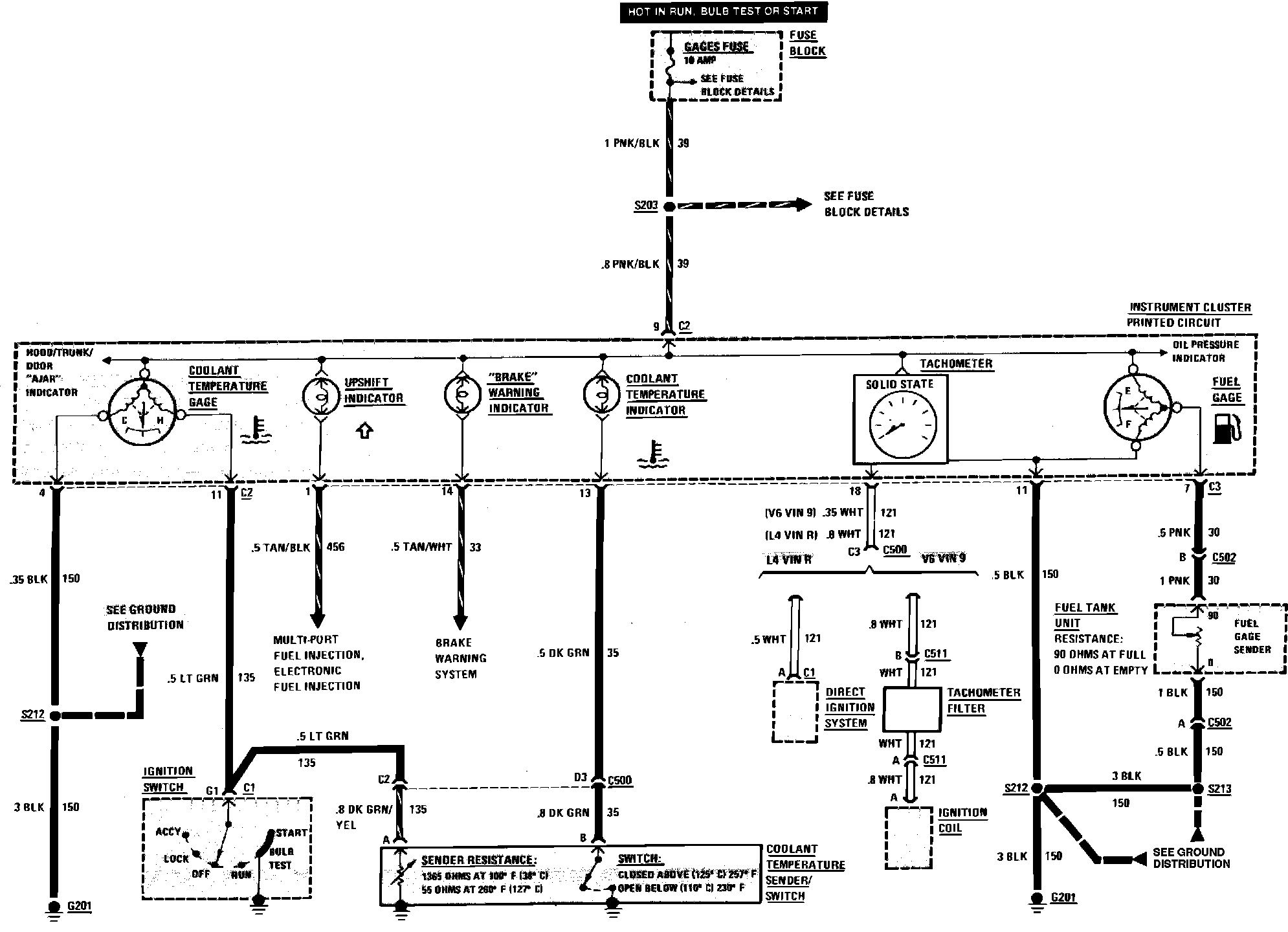

Indicators Cluster Wiring Circuit:

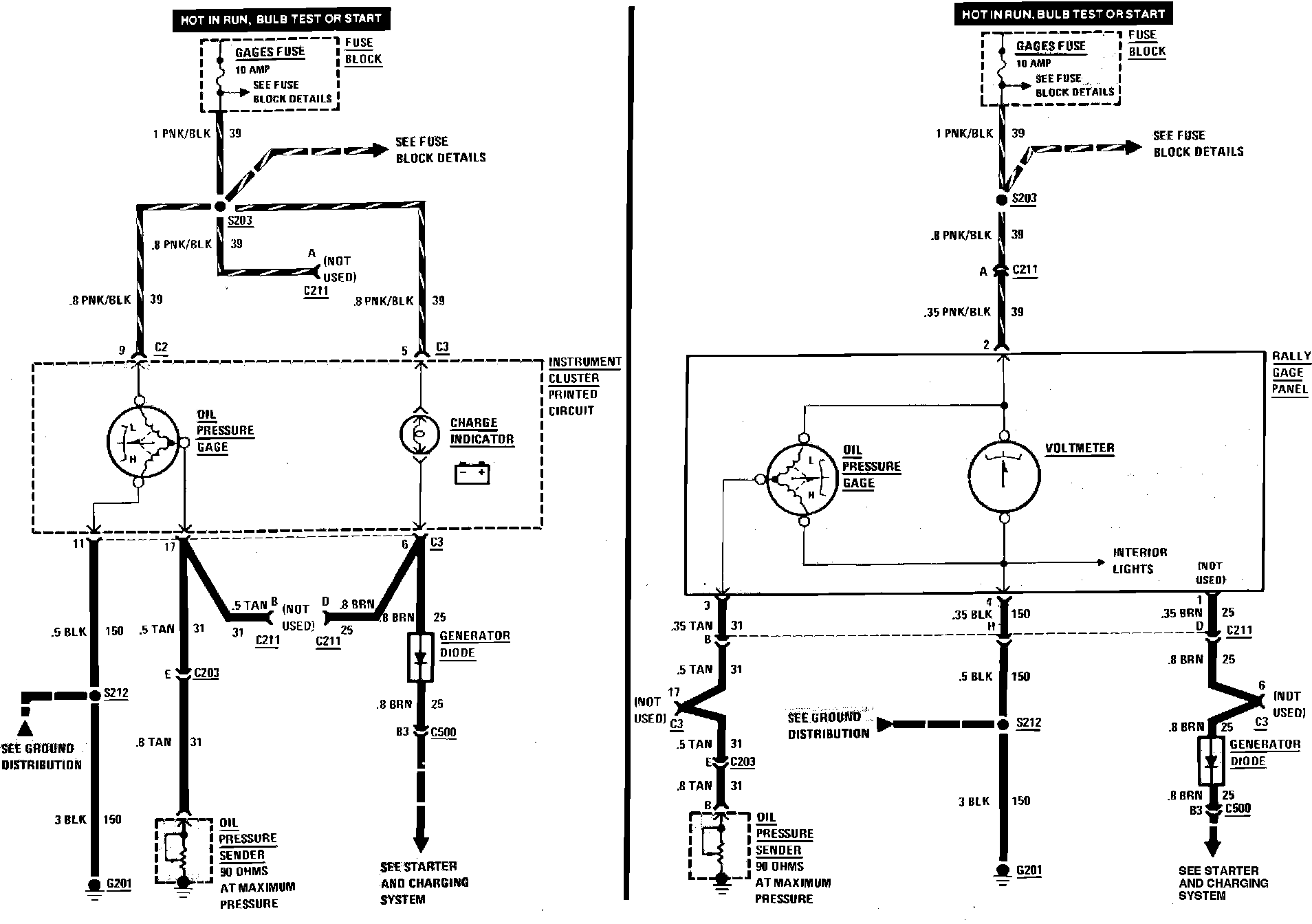

Indicators Cluster Wiring Circuit:

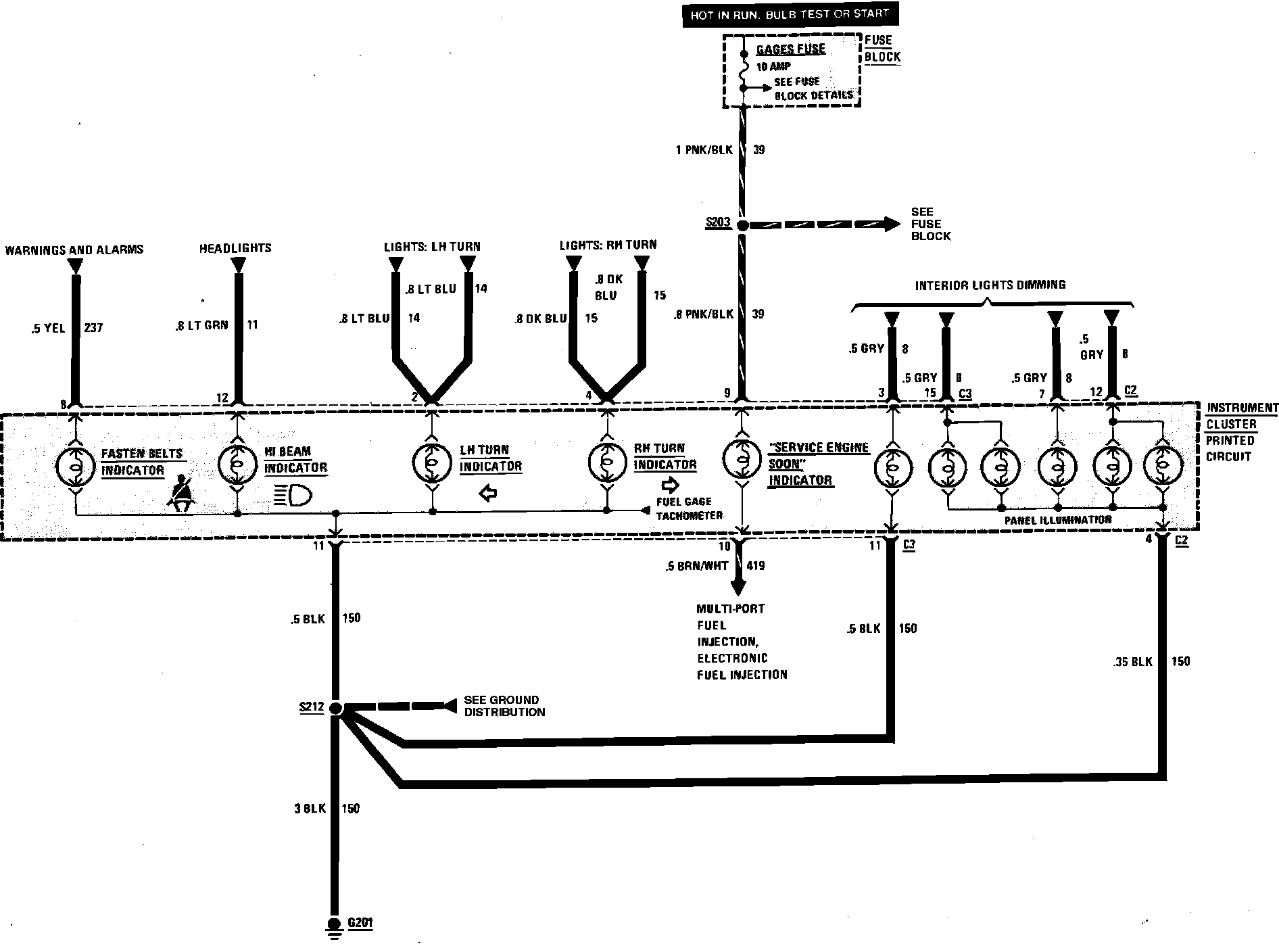

Indicators Cluster Wiring Circuit:
