Alarm & Warning System
Alarm & Warning System

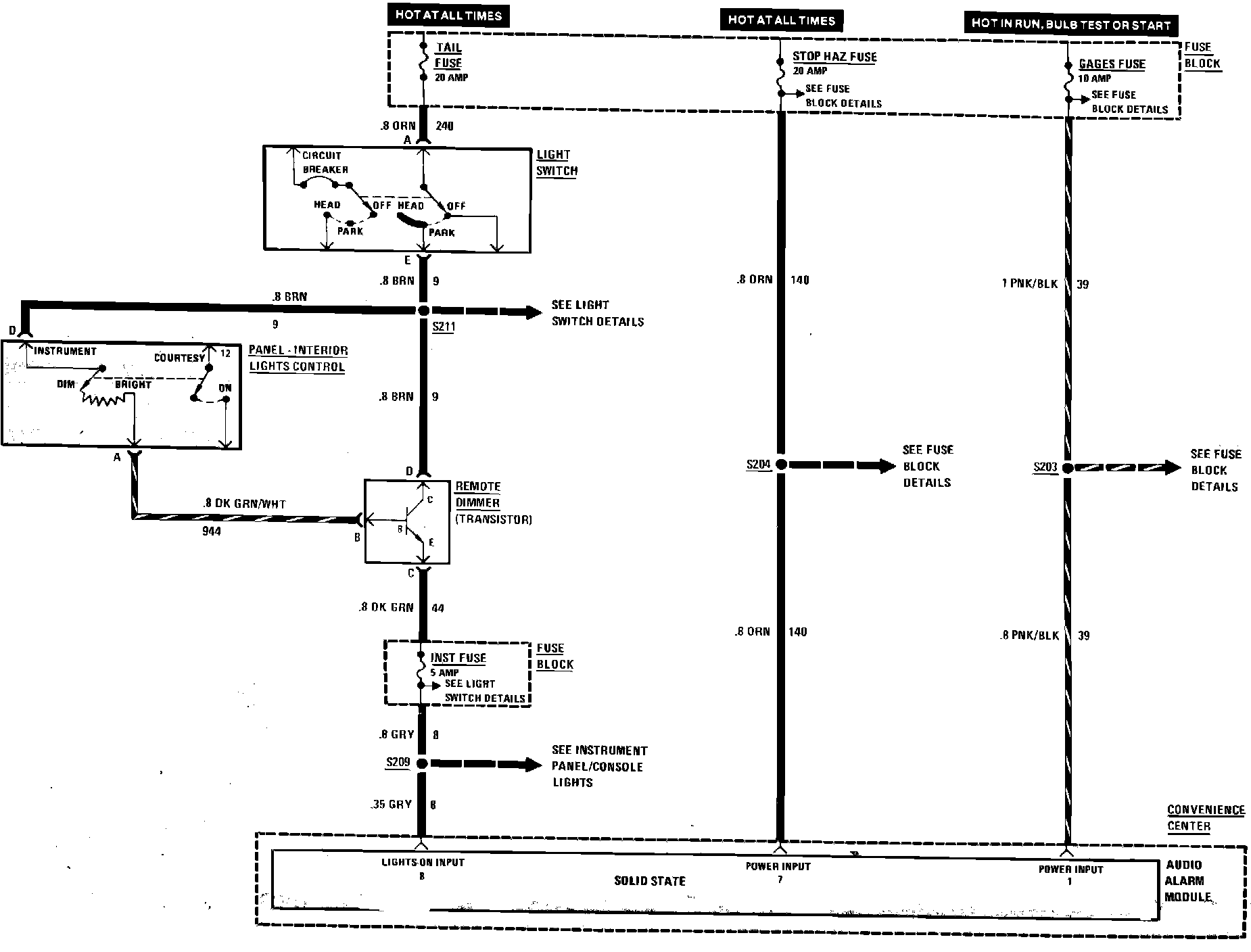

Alarm & Warning Chime Wiring Circuit:

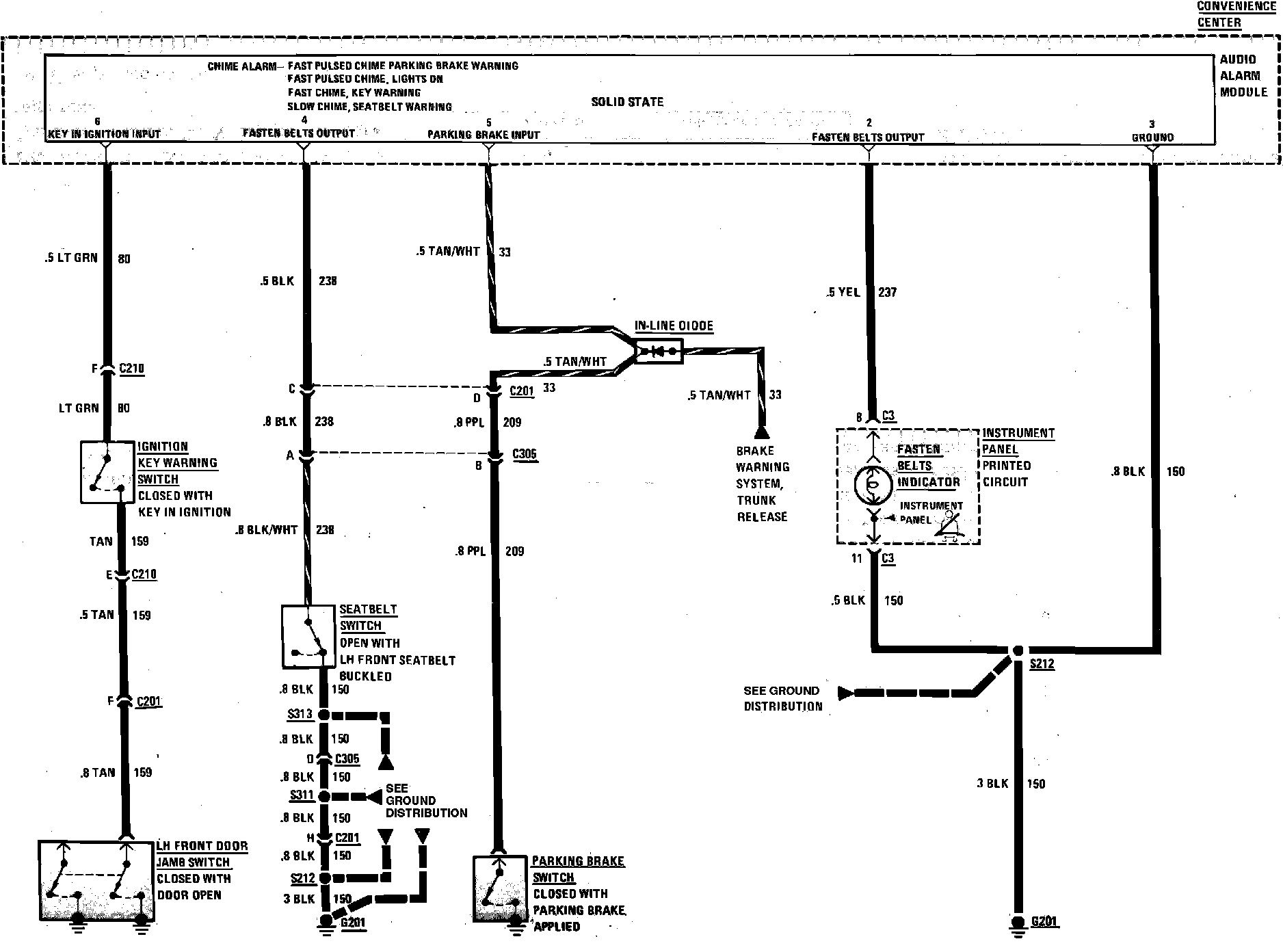

Alarm & Warning Chime Wiring Circuit:
