With Sub-Woofer & Amplifier
With Sub-Woofer & Amplifier

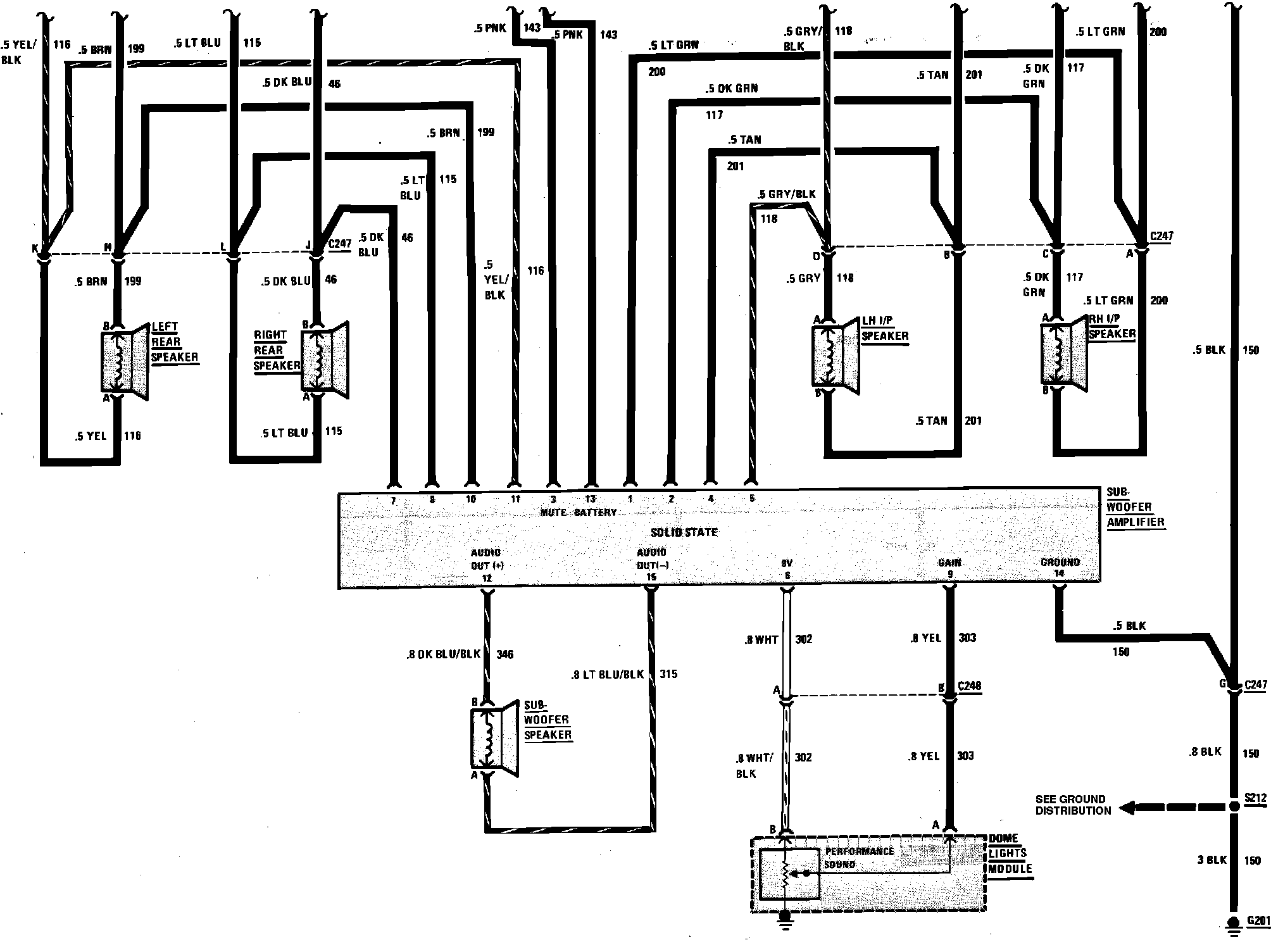

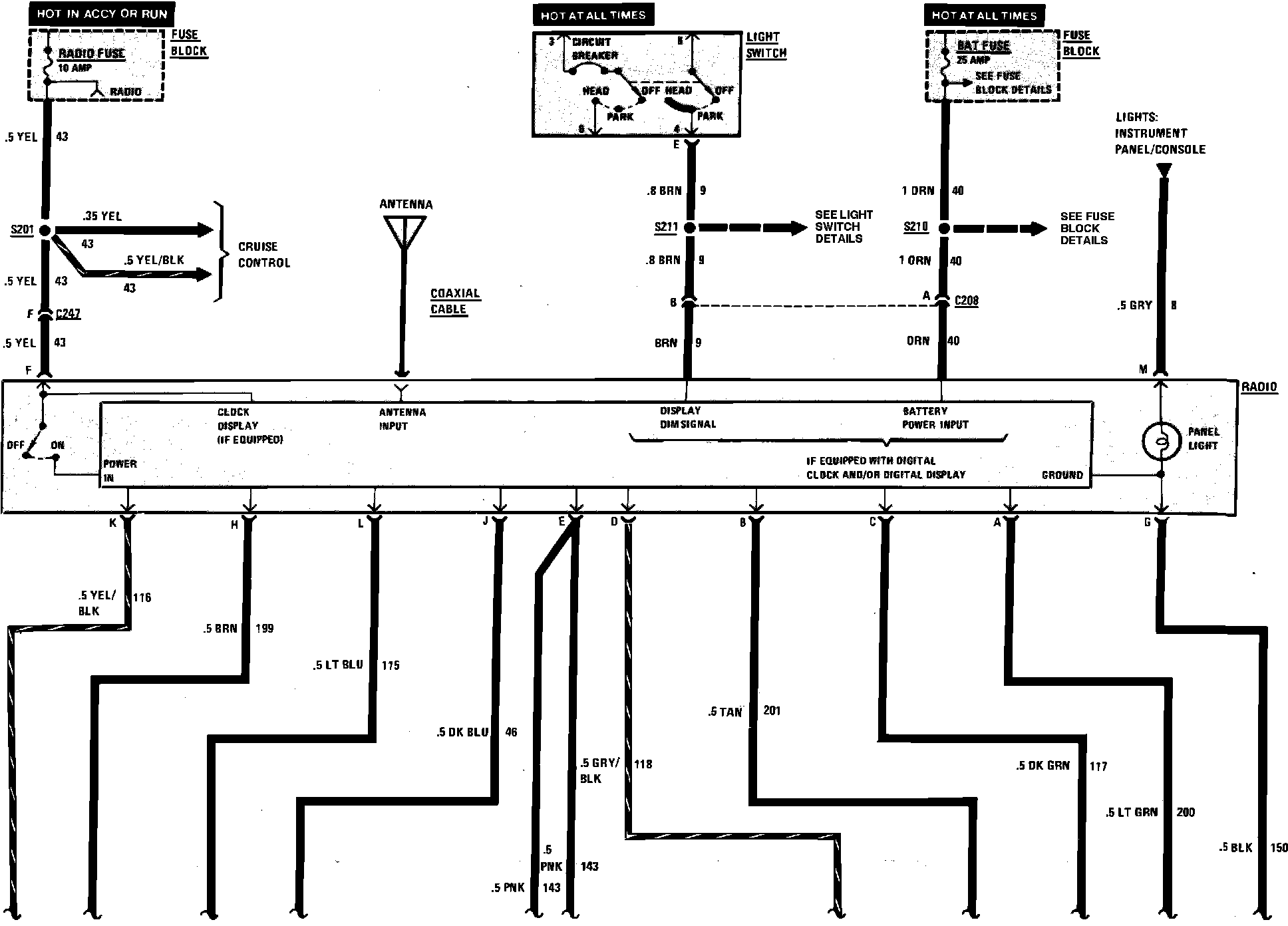

Radio Wiring Circuit With Sub-Woofer & Amplifier System:
Radio Wiring Circuit With Sub-Woofer & Amplifier System:
