Home >> Pontiac >> 1987 >> Fiero V6-173 2.8L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Diagrams >> Electrical Diagrams >> Exc. Sub-Woofer & Amplifier System

Exc. Sub-Woofer & Amplifier System

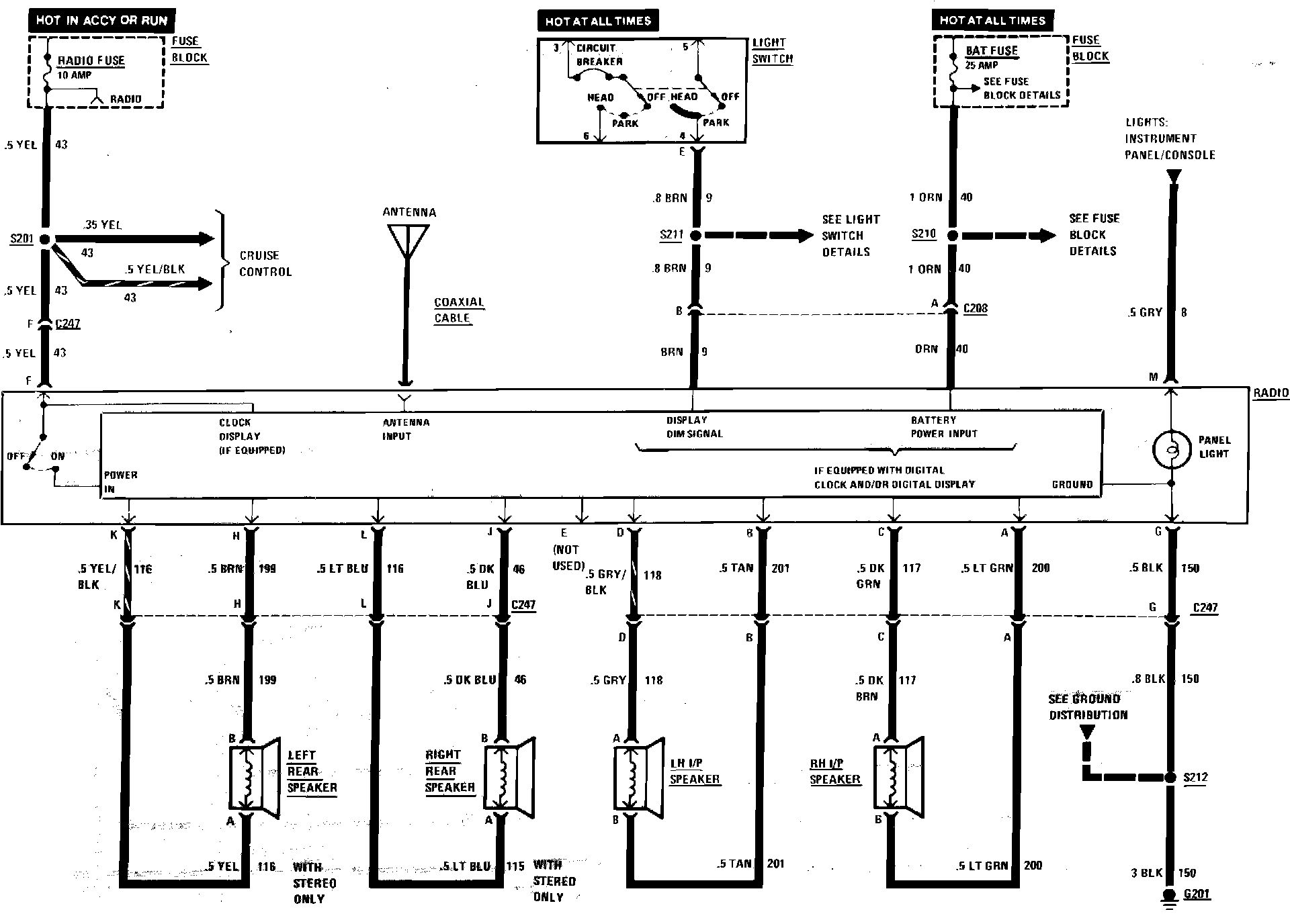

Radio Wiring Circuit Exc. Sub-Woofer & Amplifier System:
