Removal & Installation (Firebird)

Remove 4 retaining screws from defroster ducts. Remove retaining screws from under lip of pad and remove pad. To install, reverse removal procedure.

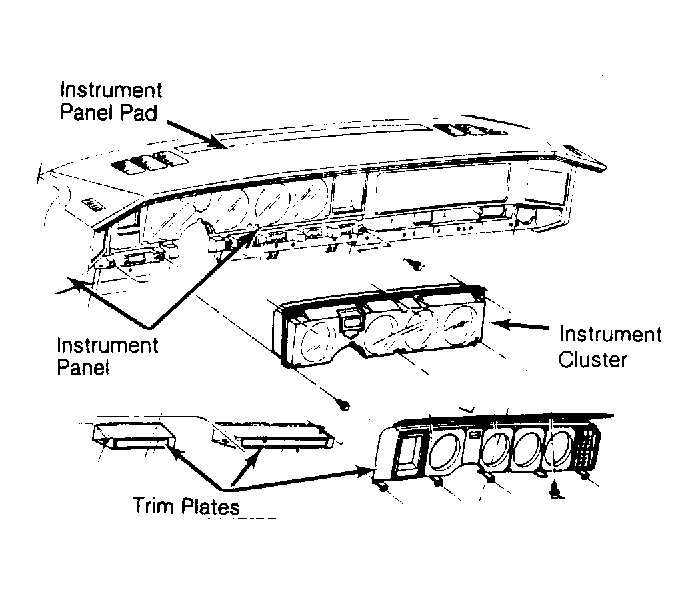

Fig 1: Firebird Instrument Cluster
G2120Courtesy of GENERAL MOTORS CORP.
